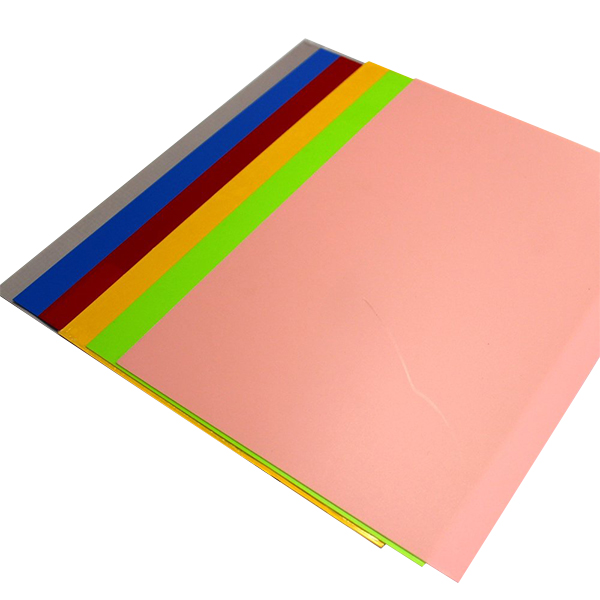

PET Film Rolls

PET film rolls of type: transparent pet film ,pet clear film,glossy white pet film ,matt white pet film ,gloosy black pet film,matt black pet film, Semi transparent pet film,pet colored film , PET film for Drum Wrap,Pet film for Lampshade, Pet film for Artifical Tree Lawn, Pet film for Folding ,Pet film for Printing, Pet film for Bending, Pet film for Thermoforming.
Quantity:

Short Description

PET film rolls of type: transparent pet film ,pet clear film,glossy white pet film ,matt white pet film ,gloosy black pet film,matt black pet film, Semi transparent pet film,pet colored film , PET film for Drum Wrap,Pet film for Lampshade, Pet film for Artifical Tree Lawn, Pet film for Folding ,Pet film for Printing, Pet film for Bending, Pet film for Thermoforming.



Introduction

PET  film rolls is a general-purpose thermoplastic in the polyester family. PET plastic is lightweight, strong and impact-resistant. It is often used in food processing machinery due to its low moisture absorption, low thermal expansion, and chemical resistant properties.

PET film rolls is a thermoplastic that is clear, strong, and lightweight. It is  completely recyclable, making it the most widely used plastic for food and beverage packaging. PET Sheets come in a variety of thicknesses and sizes. Custom cut option is available.

PET film rolls is a thermoplastic sheet made by Polyethylene terephthalate resin.PET offers the capability to produce complex shapes, precise details, deep draws and compound curves without worrying about durability. PET is easily formed, die-cut and punched. It also brings increased design freedom and lower fabrication costs. In sheet form, PET has the impact strength and fabrication ease that acrylic can`t touch, with the durability to significantly reduce packaging and shipping costs



Advantage of PET Film Rolls

•Outstanding thermoforming characteristics, particularly in deep draw applications
•Good impact resistance
•Less brittle than acrylic
•Resistant to common cleaners used on point of purchase displays
•Allows for rigid thermoforming cycle times
•FDA compliant grades available
•Impact strength greater than acrylic and approaches polycarbonate
•86% light transparency compared to 87% for polycarbonate and 92% for acrylic
•Die cuts/punches easily
•Low forming temperature
•Printable
•Chemical resistant
•Self-extinguishing



Specification

Product

PET Film Rolls

Density

  1.30g/cm3-1.40g/cm3

Thickness

0.15mm-1.8mm

Size

Width: 250mm-1250mm ,length:50m/roll-500m/roll or 30kg/roll-150kg/roll

Color

  clear, transparent,glossy white,matt white,forsted white,black red,green,blue,yellow  etc.



payment

  L/C, T/T, Western Union, MoneyGram, Paypal

MOQ

  50rolls  or 1Tons

Delivery

  10-15days after confirm your order


Technical Data

Thickness Tolerance

According to GB(higher than GB)

Heat Resistance (Continuous)

115

Heat Resistance (Short)

160

Linear Thermal Expansion Coefficient

Average 23-100, 60*10-6m/(m.k)

Combusti Bility (UL94)

HB

Bibulous Rate (23 water soak for 24 hours)

6%

Bending Tensile Stress

90MPa

Breaking Tensile Strain

15%

The Tensile Modulus of Elasticity

3700MPa

Normal Strain Compressive Stress (-1%/2%)

26/51MPa

Gap Pendulum Impact Test

2kJ/m2

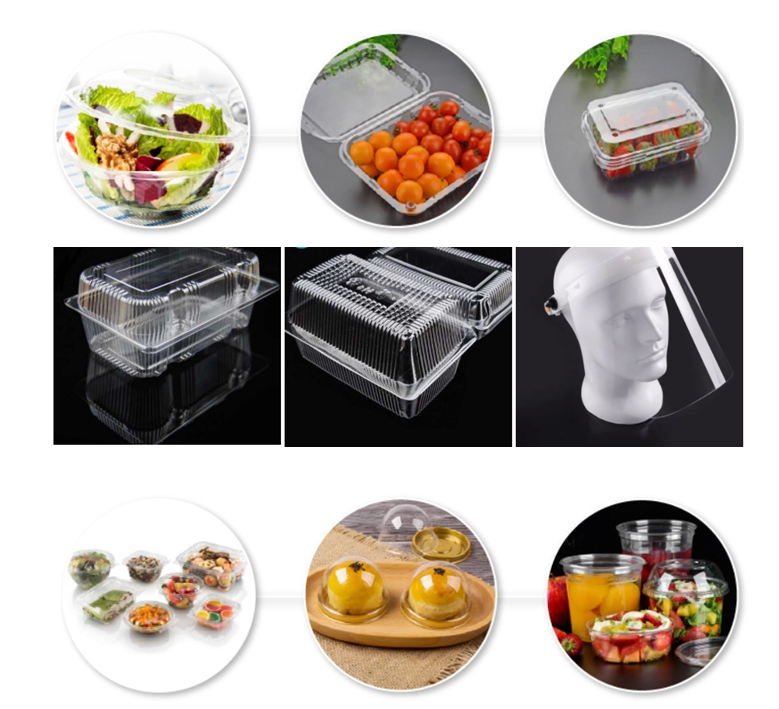

Application of PET Film Rolls

1. Widely used for the external packing of different kinds of products because of the good transparent;
2. It can be processed into trays of different shapes by vacuum thermal forming;
3. It can be formed into different kinds od shaped by moulds, which can be made into covers for clothes packing;
4. It can be cut into small pieces and used for packing of shirts or rafts;
5. It can be used for Printing, Box windows, Stationery and so on.
