GK-PCSH
GoKai
| Quantity: | |
|---|---|
Short Description
PC double-layer sun sheet is a kind of high-tech, excellent comprehensive performance, energy-saving and environment-friendly plastic board. It is suitable for industrial plants, residential buildings, commercial buildings, stations, pedestrian bridges, waiting booths, lighting roofs of building porches and greenhouse buildings.
Introduction
PC sun sheet: pc hollow sheet, Ten years guarantee 4mm/6mm/8mm/10mm hollow pc sheet with polycarbonate as the main raw materials, using the most advanced production process, the surface distribution of high concentration UV co- extruded layer has the outstanding advantages of anti UV, light, light, easy installation, safe and reliable, low cost and high performance, is one of the polycarbonate series plate most widely used in varieties.
Advantage of Polycarbonate Sun Sheet
1.Light transmission:12%-87% for different colors.
2.Ultraviolet-proof and aging-resistant:The product surface contains anti UV coextrusion layer,high outdoor weather resistance,can still maintain good optical characteristics and mechanical property after long-term use.
3.Shock resistance:High toughness,difficult to damage in transportation, installation and use.The impact strength is 10-27 times that of organic glass.
4.Heat preservation:Special hollow structure,can effectively reduce the energy consumption of building temperature regulation.
5.Sound insulation:Hollow structure and polycarbonate's excellent sound insulation property can reduce noise effectively.
6.Nonflammable:Reach the GB8624-2006 B-s1,d0,t0 certification level.
Specification
Product | Polycarbonate Sun Sheet |
Denisty | 850g/cm2-4200g/cm2 ,different thickness and different density |
Thickness | 2-20mm |
Size | 1220*2440mm ,width:1000-2100mm,length:1000-6000mm ,Customized |
Color | clear, transparent, red, blue, white, black,30 kinds of color |
payment | L/C, T/T, Western Union, MoneyGram, Paypal |
MOQ | 100PCS |
Delivery | 10-15days after confirm your order |
Technical Data
Impact strength | 850J/m impact strength of solid PC sheets is 250 times of glass |
Light transmission | 80%-92% for different thickness of clear color |
Light weight: | About 1/2 times of glass of the same thickness |
Coefficient of thermal expansion | 0.065 mm/m°c |
Temperature range: | -30°c to 120°c |
Heat conductivity | 2.3-3.9 W/m2 °c |
Tensile strength | >60N/mm2 |
Flexural strength | 100N/mm2 |
Tensile street at break | >65mPa |
Heat deflection temperature | 140°c |
Elongation at break | >100% |
Modulus of elasticity | 2, 400mPa |
Application of Polycarbonate Sun Sheet

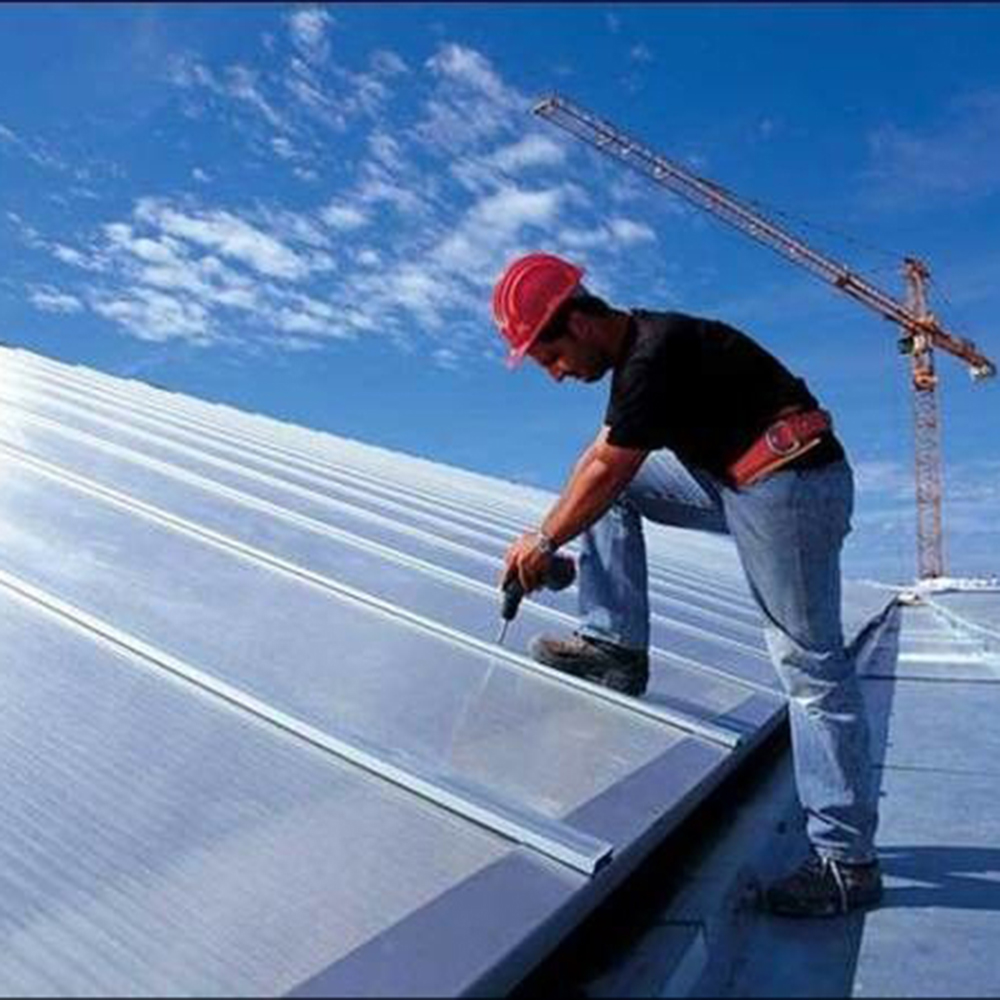

·Industrial workshop, warehouse lighting roof
·Stadium lighting roof
·Swimming pool, greenhouse
·Residential and commercial lighting velarium
·Lighting materials of steel structure workshop
·Channel, parking shed
·Indoor partition
