Finding real quiet in a city apartment, home office, or busy household can feel almost impossible. With the right acrylic sheet noise barrier design, it is possible to cut a surprising amount of everyday noise while keeping natural light and open views.
Drawing on both hands‑on experience and feedback from many users, this guide explains how acrylic sheet performs, how to size and install it correctly, and how to avoid the common mistakes that make barriers less effective.
Acrylic sheet works as a rigid barrier that adds mass to your window or opening and blocks some of the sound waves trying to pass through. The sheet slows sound transmission, especially in the mid and high frequency range, such as voices, music, and light traffic noise.
Because acrylic is transparent and much lighter than glass of similar thickness, it is popular wherever noise reduction and visibility both matter, including residential windows, office partitions, and reception screens.
Unlike acoustic foam or mineral wool, acrylic does not absorb much sound; it tends to reflect it. That means it is excellent for blocking sound coming from outside the room but less useful for fixing echo inside the room itself.
If a room feels "live" or echo‑y, soft materials such as curtains, rugs, or acoustic panels still play an important role, working together with the acrylic barrier.
Acrylic sheet barriers perform particularly well in these situations:
- Apartments facing busy streets with light to moderate traffic
- Home offices that pick up voices and street chatter from outside
- Living rooms or bedrooms with single‑glazed windows
- Offices that need transparent partitions to limit noise between areas
In many of these cases, users report clearly reduced background noise and improved comfort, especially during work and sleep hours.
Acrylic is less effective for deep, low‑frequency noise, such as heavy trucks, subway rumble, or large industrial machinery. It also cannot solve structure‑borne noise coming through walls, floors, or ceilings, which often needs a more complex construction‑level solution.
For many homes and small workplaces, however, a well‑sealed acrylic barrier is a practical way to get a noticeable improvement without major renovation.
The thicker the acrylic sheet, the more mass it has and the better it can block sound. Common practical ranges are:
- 6–10 mm for light to moderate noise and smaller window inserts
- 12–15 mm or more for busy roads or large panels where extra stiffness and isolation are needed
Beyond a certain point, adding more thickness gives smaller gains, so it is important to balance performance with weight, handling, and cost.
Even a small air gap can act like a "leak" in your barrier. For meaningful noise reduction, the acrylic panel must be well sealed around all edges.
Foam weatherstripping, adhesive seals, and careful detailing around corners, cable openings, and window latches are often the difference between a modest improvement and a clearly quieter room.

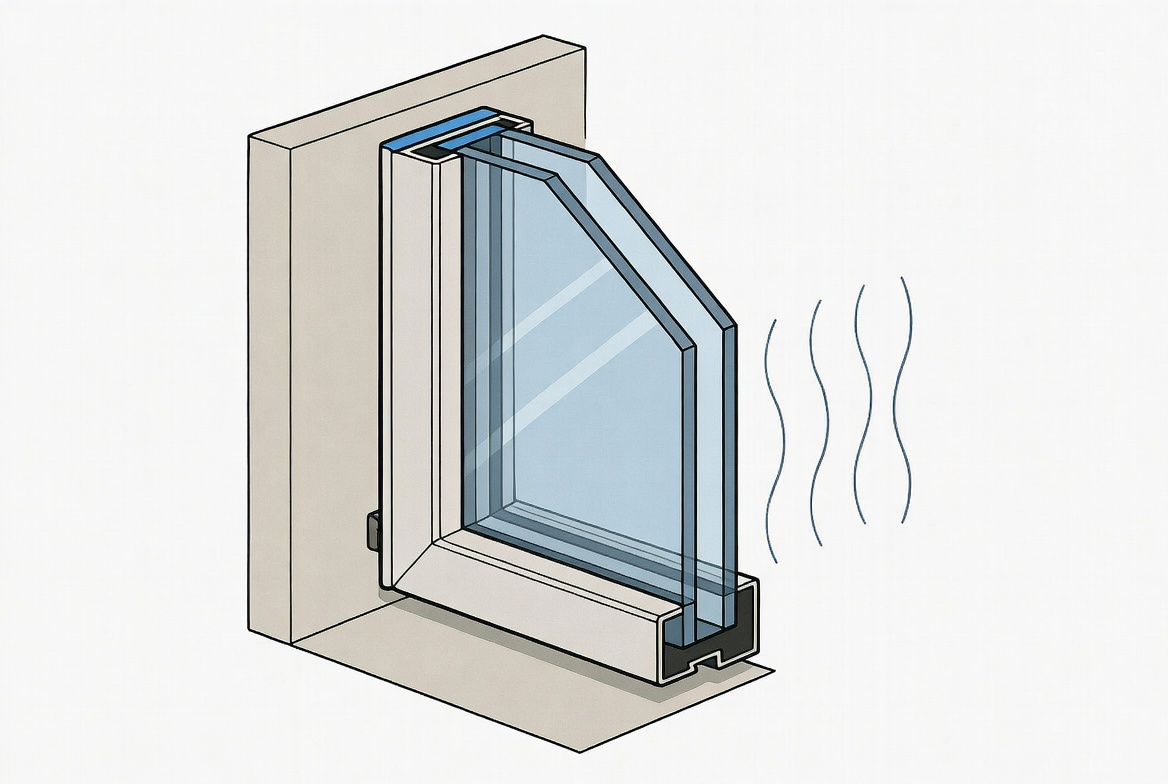

Two acrylic sheets separated by a sealed air gap usually perform better than a single panel of the same total thickness. The trapped air layer helps disrupt sound transmission and spreads the barrier's performance across a wider range of frequencies.
This design is especially useful for home studios, busy street façades, and situations where the target is a stronger overall reduction.

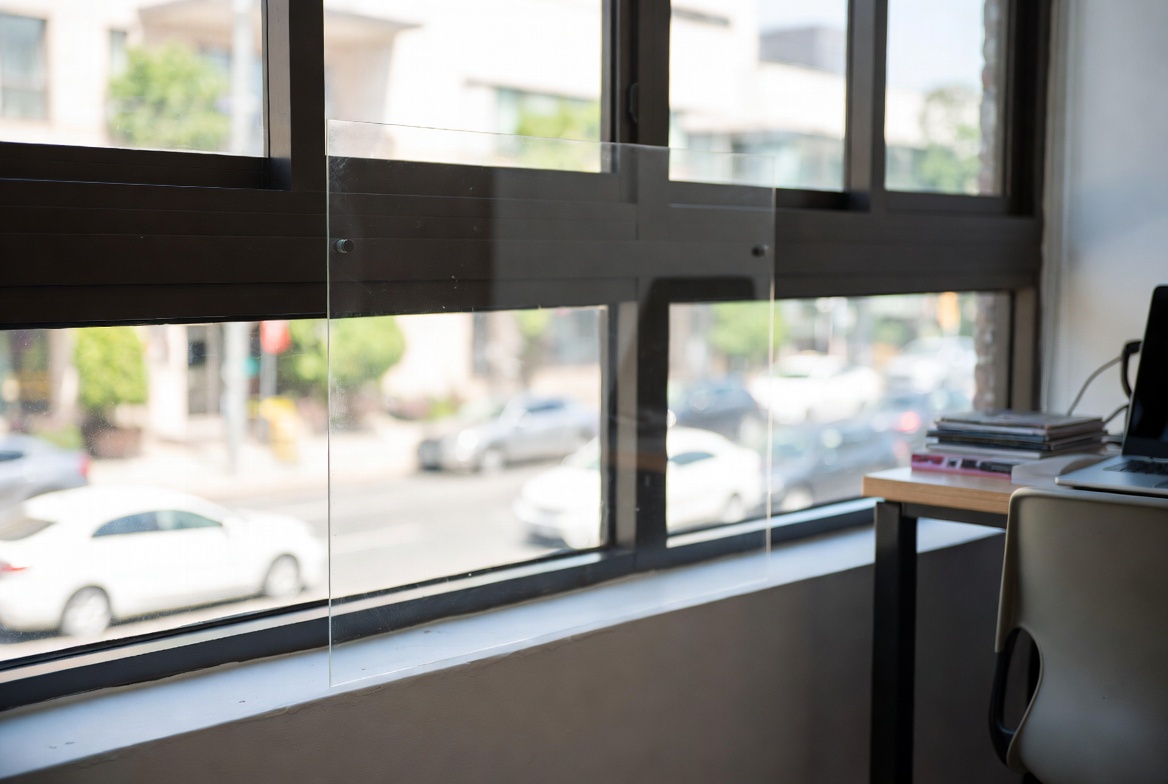

Before ordering material, take time to understand where your noise is coming from and which openings contribute most. In many homes, the weakest point is the window, especially older or single‑glazed units.
Measure the window or wall opening carefully:
- For an inside‑frame insert, reduce each side by about 6 mm (¼ inch) so the sheet can slide into the frame without binding.
- For an overlapping barrier mounted on the wall, add 25–38 mm (1–1½ inches) on each side to give space for seals and hardware.
At this stage, decide whether you prefer a single removable insert, a fixed overlapping panel, or a double‑panel system with an air gap.
A typical acrylic noise barrier project uses the following materials:
- Acrylic sheet cut to your measured dimensions
- Felt strips or rubber pads to cushion and decouple the panel
- Foam weatherstripping or adhesive sealing tape for edges
- Mounting brackets or frame hardware if installing on a wall
- Joiners or profiles if using multiple panels in a large opening
- Suitable cleaning solution for window glass and acrylic surfaces
Some users also add handles, magnets, or Velcro to make removable inserts easier to handle and reinstall.
Clean the glass, frame, and nearby wall thoroughly to remove dust, grease, and debris. A simple mixture of water and isopropyl alcohol works well and helps adhesives bond firmly.
Allow surfaces to dry completely before continuing.
Apply foam weatherstripping or felt strips where the acrylic will rest, especially along the windowsill and sides. This padding reduces vibration transfer and helps form an airtight contact when the sheet is in place.
For an inside‑frame insert, adhesive foam strips around the back of the acrylic edges can create a friction fit against the frame, holding the panel in place. For an overlapping wall‑mounted barrier, install brackets or a simple frame on the wall, checking that everything is level and securely anchored.
Large window walls may require more than one sheet. Use joiners or profiles to lock panels together and maintain alignment. The goal is to create a continuous surface without gaps between units.
Carefully position the acrylic panel in the frame or onto the brackets, making sure it sits evenly and does not rock or bend excessively. Avoid over‑tightening hardware, which can stress the sheet.
Inspect the perimeter closely. Use additional foam strips, seals, or acoustical tape to close any visible gaps between the acrylic and the surrounding structure. Pay attention to corners, cable pass‑throughs, and irregular surfaces.
Sit in your usual working or resting position and listen at different times of day. If noise still seems to come from a particular edge or corner, mark that area and add more sealing or reinforcement as needed.
Installers and experienced users often point to the same issues when a project does not perform as expected:
- Using very thin sheet for a high‑noise environment
- Leaving small but significant openings around edges or hardware
- Fixing the sheet directly to a rigid frame without any cushioning
- Expecting a window‑only solution to solve noise that actually comes through walls or ceilings
From a practical standpoint, correct sealing and decoupling usually bring a bigger benefit than increasing thickness alone. Careful measuring and preparation often make the difference between a small improvement and a noticeable transformation in everyday comfort.
Selecting the right sheet for a noise barrier means balancing acoustic performance, handling, and structural needs.
- Light noise and small windows: 6–8 mm is often sufficient
- Moderate road noise or larger openings: 8–12 mm gives more rigidity and isolation
- Very busy streets or near commercial areas: 10–15 mm, often in a double‑panel configuration with an air gap
Heavier and thicker panels need stronger support and may be better handled in multiple pieces rather than a single large sheet.
| Situation | Typical thickness | Suggested design |
|---|---|---|
| Apartment bedroom window | 6–8 mm | Single insert, inside the frame |
| Large living room facing traffic | 8–12 mm | Multi‑panel with joiners and seals |
| Home studio near a busy street | 10–15 mm | Double panel with sealed air gap |
| Transparent office partition | 6–10 mm | Framed system with top and bottom tracks |
A number of user projects and case studies show how acrylic sheet performs in daily life.
One home user created a DIY barrier with thin acrylic panels, magnets, foam, and Velcro over sliding windows and reported roughly a 20% reduction in noise, which was enough to stay focused in a study room next to a busy street. Others have installed clear acrylic inserts over older windows and found that both drafts and street sounds dropped noticeably, with rooms feeling calmer and more comfortable.
In commercial spaces, transparent acrylic partitions are widely used to reduce cross‑talk and air movement between zones while keeping reception areas bright and open. Across these examples, the most consistent success factors are proper sizing, adequate sheet thickness, full‑edge sealing, and a stable mounting method.
Acrylic sheet is a strong component in a broader noise control strategy, especially around windows and openings.
To tackle more demanding situations, many projects combine acrylic with:
- Thick curtains or layered drapes to absorb reflected sound inside the room
- Acoustic panels or soft wall coverings to reduce echo and reverberation
- Additional framing or resilient mounts to limit structure‑borne vibration
This layered approach allows the acrylic barrier to handle direct sound from outside while complementary materials manage reflections and low‑frequency energy.
Thoughtfully designed acrylic sheet barriers offer a practical way to reclaim quiet in homes, studios, and offices without giving up daylight or visibility. By choosing appropriate thickness, focusing on airtight sealing, and avoiding common installation mistakes, many users achieve a clear and satisfying reduction in everyday noise.
Whether you are dealing with street chatter, light traffic, or the general hum of the neighborhood, an acrylic barrier that fits well and seals tightly can transform the comfort level of your space. With the principles and steps in this guide, you can plan your own project with greater confidence and make more informed decisions about materials, design, and installation details.
1. Can acrylic sheet completely block noise from outside?
No. Acrylic sheet can significantly reduce many everyday sounds, especially in the mid and high frequency range, but it does not provide total silence, particularly against deep, low‑frequency rumble.
2. Is a thicker acrylic panel always better?
Thicker panels generally block more sound because they have more mass, but after a certain point the improvement per extra millimeter becomes smaller. Matching thickness to your specific noise level and window size is more effective than simply choosing the thickest sheet available.
3. Do I need a double‑panel system with an air gap?
A double‑panel system with a sealed air gap can outperform a single panel of similar total thickness, especially when outside noise is strong or broad‑band. For lighter noise, a well‑sealed single insert may already provide enough improvement.
4. How important is it to seal around the edges?
Edge sealing is critical. Small gaps allow sound to pass through and can dramatically reduce the benefit of the barrier, even if the acrylic itself is thick and high quality.
5. Will an acrylic noise barrier also help with temperature control?
Yes. By adding an extra layer and creating an enclosed air space, acrylic inserts can improve thermal insulation, reduce drafts, and make rooms feel more stable in temperature as well as quieter.
