Short Description

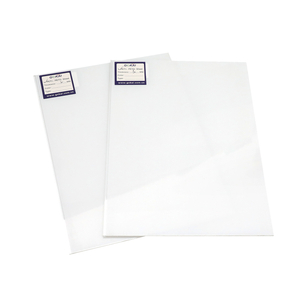

PETG film rolls of type: transparent PETG film ,PETG clear film ,glossy white PETG film,matt white PETG film ,gloosy black PETG film,matt black PETG film, Semi transparent PETG film,PETG colored film.
Introduction
PETG (Polyethylene terephthalate glycol), thermoplastic polyester that provides excellent toughness, chemical resistance and is easy to thermoform. With its low forming temperature, PETG can be readily vacuumed and pressure-formed as well as heat bent. PETG fabricates well using processes like die cutting, drilling, routing, and bending. PETG is a high impact, co-polyester material, but it does not hold up well in outdoor applications. Because of its soft surface it is also vulnerable to scratching in high contact environments.
PETG film roll is a thermoplastic film made by Polyethylene terephthalate resin.PETG offers the capability to produce complex shapes, precise details, deep draws and compound curves without worrying about durability. PETG is easily formed, die-cut and punched. It also brings increased design freedom and lower fabrication costs. In sheet form, PETG has the impact strength and fabrication ease that acrylic can`t touch, with the durability to significantly reduce packaging and shipping costs.
Advantage of PETG Film Rolls
•Outstanding thermoforming characteristics, particularly in deep draw applications
•Good impact resistance
•Less brittle than acrylic
•Resistant to common cleaners used on point of purchase displays
•Allows for rigid thermoforming cycle times
•FDA compliant grades available
•Impact strength greater than acrylic and approaches polycarbonate
•86% light transparency compared to 87% for polycarbonate and 92% for acrylic
•Die cuts/punches easily
•Low forming temperature
•Printable
•Chemical resistant
•Self-extinguishing
Specification
Product | Rigid PVC Film Rolls |
Density | 1.36g/cm3 1.40g/cm3 1.42g/cm3 1.45g/cm3 |
Thickness | 0.1mm-1.8mm |
Size | Width: 250mm-1500mm ,length:50m/roll-500m/roll or 30kg/roll-150kg/roll |
Color | clear, transparent,glossy white,matt white,forsted white,black red,green,blue,yellow etc. |
payment | L/C, T/T, Western Union, MoneyGram, Paypal |
MOQ | 50rolls or 1Tons |
Delivery | 10-15days after confirm your order |
Technical Data
Intrinsic Viscosity(dL/g) | 0.750+/-0.015 |
Specific Gravity(kg/cm³) | 1.27 |
Moisture Absorption(%) | 0.15 |
Tensile Strength@Yield 50mm/min( inch/min)(kgf/cm²) | 496 |
Tensile Strength@Break 50mm/min( inch/min)(kgf/cm²) | 281 |
Elongation@Yield 50mm/min( 2inch/min)(%) | 3.7 |
Elongation@Break 50mm/min(2 inch/min)(%) | 136 |
Flexural Strength 1.27mm/min(2 inch/min)(kgf/cm²) | 620 |
Flexural Strength 1.27mm/min(3 inch/min)(kgf/cm²) | 20800 |
Low temperature falling dart impact(g) | 791 |
Atmospheric temperature falling dart(g) | 1701 |
Lzod Impact Strength Notched@23 ℃(J/m) | 98 |
Rockwell Hardness(℃) | 106 |
Heat Distortion Temperature 0.45Mpa(66 psi)(℃) | 77 |
Application of PETG Film Rolls
1. Widely used for the external packing of different kinds of products because of the good transparent;
2. It can be processed into trays of different shapes by vacuum thermal forming;
3. It can be formed into different kinds od shaped by moulds, which can be made into covers for clothes packing;
4. It can be cut into small pieces and used for packing of shirts or rafts;
5. It can be used for Printing, Box windows, Stationery and so on.
Hot Tags: PETG Film Rolls, 300 micron clear thermoforming petg pet rigid film rolls, clear and white petg film rolls, colors 0.8mm pet petg sheet film rolls, pet petg sheet film rolls, wholesale, China, custom, bulk, oem, manufacturers, suppliers, factory, made in China, price
