Choosing the right polycarbonate hollow sheet can make a major difference to a greenhouse, canopy, skylight, patio cover, warehouse daylighting system, or agricultural structure. For global buyers, the decision should go beyond price: sheet structure, UV protection, thermal insulation, loading requirements, installation design, and supplier consistency all affect the finished project's safety, appearance, and service life.
At Gokai, we supply OEM polycarbonate hollow sheets for international distributors, contractors, project owners, and private-label brands. This guide explains how multiwall polycarbonate roofing panels work, how to select the right specification, and how to avoid common installation failures.
A polycarbonate hollow sheet, also called a multiwall polycarbonate sheet, is an extruded plastic glazing panel with internal walls, ribs, and air chambers. Unlike solid polycarbonate sheets, hollow sheets use a structured internal design to reduce weight while improving insulation.

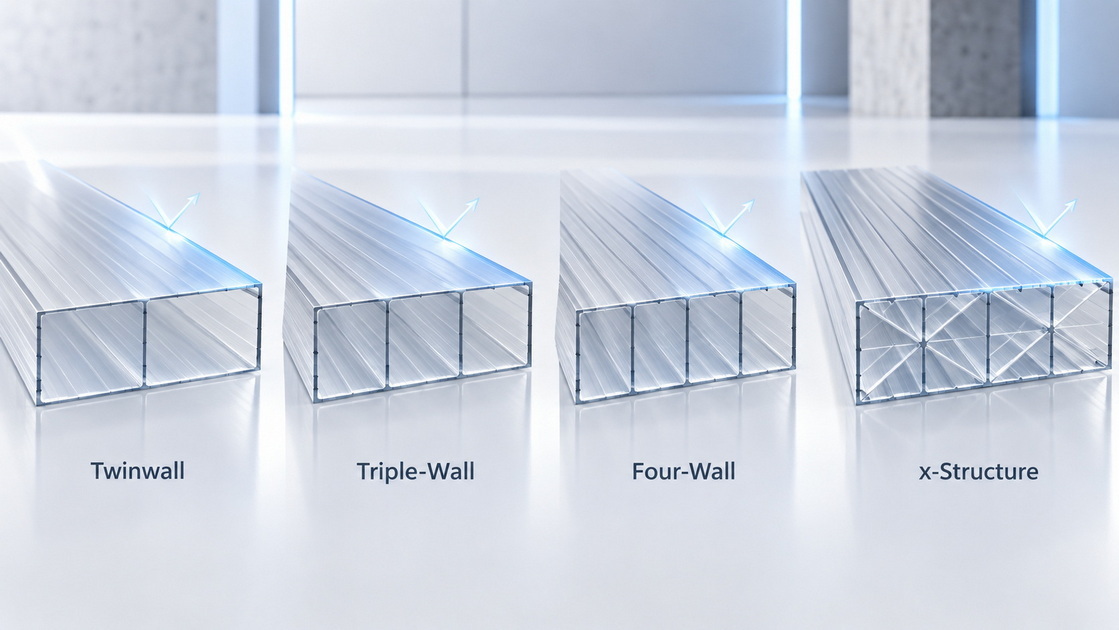

The most common formats include:
- Twinwall polycarbonate sheet
- Triple-wall polycarbonate sheet
- Four-wall polycarbonate sheet
- X-structure or reinforced multiwall sheet
- Honeycomb polycarbonate sheet
- Multi-layer polycarbonate roofing panel
The air channels inside the sheet are important. They help reduce heat transfer while maintaining a relatively light panel weight. This makes polycarbonate hollow sheet a common choice for structures that need daylight, impact resistance, and more insulation than single-layer glazing can provide.

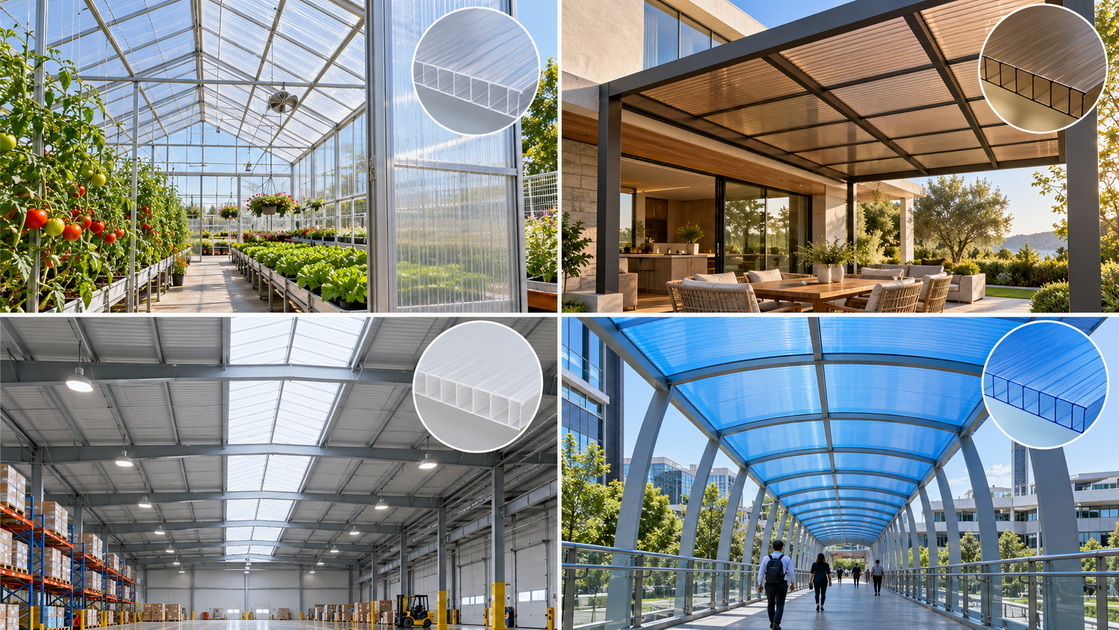

Typical applications include:
- Greenhouses and agricultural buildings
- Pergolas, verandas, and patio roofs
- Skylights and rooflights
- Carports and walkways
- Swimming pool enclosures
- Industrial roof glazing
- Stadium, station, and public-building canopies
- Retail, warehouse, and factory daylighting systems
- Interior partitions and decorative architectural panels
Polycarbonate itself is widely recognized as a tough, transparent engineering thermoplastic with strong impact resistance and dimensional stability, making it suitable for glazing-related applications when the correct product grade and installation method are used.
Polycarbonate hollow roofing sheets combine several useful performance characteristics in one material system. However, their real value depends on matching the sheet specification to the project rather than choosing a panel based only on thickness or initial cost.
Compared with traditional glass glazing, multiwall polycarbonate panels are much lighter. This can reduce handling difficulty during transport, lifting, and on-site installation.
For a contractor or distributor, lower panel weight can mean:
- Easier loading and unloading
- Lower risk of breakage during transportation
- Reduced demands on some supporting structures
- Faster installation on large roof areas
- More efficient logistics for export projects
For overseas OEM customers, sheet weight also matters because it influences container planning, freight cost, packaging requirements, and damage prevention strategy.
One of the key advantages of polycarbonate is its toughness. Multiwall polycarbonate roof panels are commonly selected where impact resistance is important, such as areas exposed to windblown debris, hail, active agricultural use, or high-traffic environments.
Technical documentation for LEXAN™ THERMOCLEAR™ multiwall sheets reports strong impact performance across a broad temperature range, from -40°C to +120°C, including outdoor roofing conditions such as windstorms and hailstorms.
That does not mean every polycarbonate hollow sheet has the same performance. Impact resistance depends on factors such as:
- Resin quality
- Sheet thickness
- Internal wall design
- UV co-extrusion quality
- Production control
- Support spacing
- Fastening method
- Temperature and local weather conditions
Buyer insight: A thicker sheet is not automatically the right choice. The internal structure, span, wind load, roof pitch, and framing system must be assessed together.
The hollow chamber design is a major reason buyers choose multiwall polycarbonate over corrugated single-layer panels or solid sheets. The air spaces in a polycarbonate hollow sheet help slow heat transfer.
For example, a published LEXAN THERMOCLEAR technical manual lists U-values ranging from 3.86 W/m²K for a 4.5 mm two-wall sheet to 3.02 W/m²K for a 10 mm two-wall sheet in the cited product range. Actual thermal performance varies by product geometry, thickness, color, coating, installation system, and test standard.
For greenhouse owners, insulation may help stabilize internal temperatures. For commercial buildings, it can support daylighting strategies while reducing the drawbacks of single-layer transparent roofing.
Polycarbonate hollow sheets can introduce daylight into enclosed spaces. This is especially useful for greenhouses, workshops, warehouses, covered walkways, patios, and canopies.
Clear panels normally provide the highest visible light transmission. Opal, bronze, blue, green, and other tinted options may reduce glare or solar intensity, depending on the formulation and design.
When selecting a color, do not focus only on appearance. Consider:
| Project requirement | Potential sheet direction |
|---|---|
| Maximum daylight for greenhouse crops | Clear multiwall polycarbonate sheet |
| Reduced glare under a patio roof | Opal or bronze polycarbonate hollow sheet |
| More privacy for a canopy or partition | Opal, white, or colored sheet |
| Architectural visual impact | Colored, embossed, or custom OEM sheet |
| Hot-climate daylighting | UV-protected, heat-control, or tinted specification |
Both products are useful, but they solve different problems. Buyers should choose based on function, not just appearance.
| Feature | Polycarbonate Hollow Sheet | Solid Polycarbonate Sheet |
|---|---|---|
| Internal construction | Multiwall channels or chambers | Solid, single-layer panel |
| Weight | Generally lighter for comparable coverage | Generally heavier |
| Thermal insulation | Better due to internal air spaces | Lower than multiwall at similar thickness |
| Optical clarity | Good, but internal ribs are visible | Higher visual clarity |
| Impact resistance | Strong, depending on structure | Very high |
| Typical uses | Greenhouses, roofs, skylights, canopies | Machine guards, safety glazing, windows, signage |
| Cost consideration | Efficient for large insulated roof areas | Often selected where clarity or solid protection matters |
A project requiring a transparent safety guard, high optical clarity, or a solid clear barrier may be better served by solid polycarbonate. A greenhouse roof, insulated skylight, or large patio cover will often benefit more from the lighter and more thermally efficient structure of a multiwall polycarbonate sheet.
Before purchasing, buyers should prepare a clear project brief. A reliable supplier can then recommend a suitable sheet rather than offering a generic option.
Start by identifying the real operating conditions:
- Is the sheet used for roofing, vertical glazing, or partitioning?
- Is the project residential, commercial, agricultural, or industrial?
- Does the roof face high wind, snow, hail, salt air, or intense sunlight?
- Does the space need high daylight transmission, heat control, privacy, or insulation?
- Is the project permanent, seasonal, or temporary?
A 4 mm twinwall sheet for a small seasonal greenhouse is not equivalent to a 16 mm or 25 mm multiwall panel used in a commercial roof glazing system.
Common multiwall polycarbonate sheet thicknesses include 4 mm, 6 mm, 8 mm, 10 mm, 12 mm, 16 mm, 20 mm, 25 mm, and thicker engineered configurations. A supplier should provide span tables or project-specific recommendations based on the structural system.
Important variables include:
- Distance between purlins or glazing bars
- Roof angle
- Wind load
- Snow load
- Building code requirements
- Sheet orientation
- Fastening system
- Local climate
Do not specify thickness based on a competitor's product listing alone. A correct design depends on the complete panel-and-frame system.
Outdoor polycarbonate sheets should normally include UV protection. A co-extruded UV layer helps protect the sheet surface from long-term exposure to sunlight and may help preserve appearance and mechanical performance.
Some multiwall products use UV protection on one side; others are available with two-sided UV protection. The correct choice depends on the intended installation, cutting method, project environment, and whether either side may be exposed.
For procurement, ask the supplier:
1. Is UV protection co-extruded or applied as a surface coating?
2. Is protection provided on one side or both sides?
3. Which side must face outward during installation?
4. Is the protected side marked with protective film?
5. What warranty terms apply to yellowing, light transmission, or weathering?
6. Is the UV package suitable for the destination climate?
Color affects light, heat, privacy, and visual design. Gokai can support OEM requirements for sheet colors, dimensions, protective films, packaging, and branding specifications, subject to material and order requirements.
For example:
- Clear: Maximum daylight and a clean glazing appearance
- Opal: Softer light diffusion and reduced glare
- Bronze: Shade and visual comfort for patio or carport applications
- Blue or green: Decorative or architectural applications
- Embossed surface: Improved diffusion and reduced visibility of scratches or marks

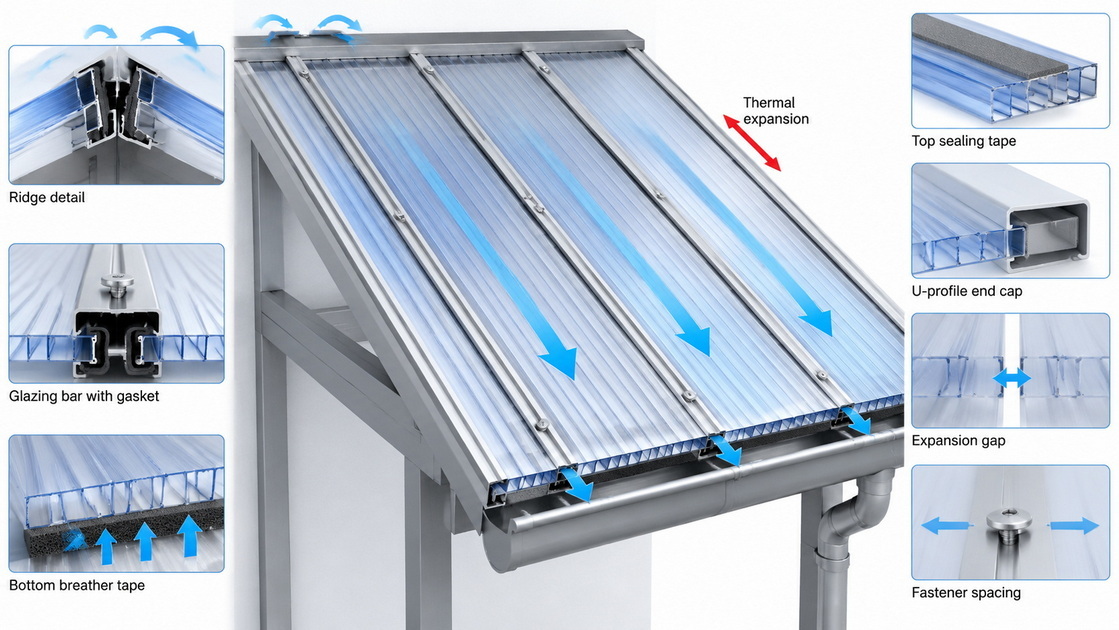

A premium polycarbonate hollow sheet can still fail early if it is installed incorrectly. Many common problems—leaks, cracking around screws, panel deformation, dirt inside cells, and excessive noise—come from poor installation practice rather than poor material selection.
Polycarbonate expands and contracts as temperature changes. This movement must be designed into the glazing system.
A published installation discussion from Palram emphasizes several key practices: provide room for movement, use oversized pre-drilled holes where direct fastening is applicable, avoid overtightening, use flexible EPDM gaskets, and select polycarbonate-compatible sealants.
Another installation guide states that multiwall sheets expand primarily along the rib direction and provides an example allowance of approximately 0.125 inch per 3 feet in both sheet length and width.
Practical rules include:
- Do not force sheets tightly into frames.
- Leave appropriate expansion clearance at edges.
- Use oversized holes if the approved installation system requires screw fixing.
- Do not overtighten screws.
- Use compatible washers and EPDM sealing components.
- Follow the supplier's sheet-specific installation guide.
For roof applications, the internal channels should normally run in the direction of water drainage—from the ridge toward the eave.
This helps reduce the risk of trapped moisture and supports proper condensation management. The upper end and lower end of the sheet need different sealing treatments.
A typical approach is:
- Top edge: Solid aluminum tape to limit dust and moisture entry
- Bottom edge: Breather or vent tape to allow condensation drainage while reducing contamination
- End profile: Aluminum or polycarbonate U-profile for edge protection and a clean finish
Do not use ordinary tape that can fail outdoors. Use tapes and accessories designed for polycarbonate glazing systems.
Some sealants, cleaners, paints, adhesives, and solvents can damage polycarbonate. Compatibility matters.
Avoid using unknown chemical products directly on the sheet. Confirm that sealants are neutral-cure and approved for polycarbonate where sealant is needed. Palram specifically advises using neutral-cure or non-acidic silicone approved for polycarbonate when silicone cannot be avoided.
Recommended accessories may include:
- Aluminum glazing bars
- Polycarbonate H-profiles
- U-profiles
- EPDM rubber gaskets
- Stainless steel or corrosion-resistant screws
- Sealing tapes
- Fixing caps
- Closure systems
- Flashing materials
Likely cause: Open or poorly sealed channels, incorrect tape, damaged end caps, or improper installation direction.
Prevention: Use solid tape at the upper edge, breather tape at the lower edge, and compatible U-profiles. Install channels downward on sloped roof systems.
Likely cause: Undersized drill holes, overtightened screws, no expansion allowance, or unsuitable fasteners.
Prevention: Allow thermal movement, use proper washers or fixing systems, and do not overtighten. Polycarbonate roofing installation guidance consistently emphasizes oversized pre-drilled holes and flexible gasket systems when direct fastening is used.
Likely cause: Non-UV-protected material, poor UV layer quality, incorrect outward-facing orientation, or excessive chemical exposure.
Prevention: Specify UV-protected sheets, confirm the protected side, retain protective film until installation is complete, and use recommended cleaning methods.
Likely cause: Panels installed too tightly, inadequate support spacing, insufficient roof slope, or improper glazing bars.
Prevention: Follow span recommendations, provide expansion clearance, use a suitable support system, and select the correct thickness for wind and snow conditions.
For importers, distributors, project contractors, and brand owners, OEM service should involve more than adding a logo to protective film. A dependable OEM program should support product consistency, packaging protection, technical communication, and scalable supply.
Gokai can support customized requirements for polycarbonate hollow sheet projects, including:
- Custom thickness and wall structure options
- Clear, opal, bronze, blue, green, and other color options
- Standard or customized widths and lengths
- UV-protection options based on application needs
- Private-label protective film
- Customized packaging and export packing
- OEM branding support
- Sample evaluation before volume purchasing
- Container-load planning for global shipments
For serious buyers, the most useful first step is to share the target application, market, required thickness, color, panel dimensions, estimated quantity, and project climate. This enables a more accurate recommendation than a price-only inquiry.
The best polycarbonate hollow sheet is not simply the thickest or cheapest panel. It is the panel that fits the application's span, climate, daylight needs, insulation target, installation system, and expected service life.
For roofing, greenhouse, canopy, and skylight applications, prioritize UV protection, correct multiwall structure, expansion-aware installation, compatible accessories, and reliable technical support. These factors help protect your investment long after the panels leave the factory.
Need an OEM polycarbonate hollow sheet supplier for your market or project? Contact Gokai with your drawing, required thickness, dimensions, color, annual quantity, and destination country to receive a tailored product recommendation and quotation.
Polycarbonate hollow sheet contains internal chambers or ribs that reduce weight and improve thermal insulation. Solid polycarbonate sheet is a single, dense panel with higher optical clarity and is often used for safety glazing, machine guards, and clear protective barriers.
The best thickness depends on greenhouse size, local climate, support spacing, wind load, snow load, and insulation needs. Smaller seasonal structures may use thinner sheets, while commercial or cold-climate greenhouses may need thicker multiwall panels. Request a span and load recommendation from the supplier before ordering.
Yes. UV-protected multiwall polycarbonate sheets are widely used for outdoor roofing, skylights, patios, greenhouses, carports, and canopies. Proper UV orientation, suitable accessories, expansion gaps, and correct installation are essential.
Polycarbonate changes dimension with temperature. If panels are installed too tightly, stress can build up around edges and fasteners, increasing the risk of distortion, cracking, leaks, and noise. Installation guidance recommends leaving room for thermal movement.
Use lukewarm water, a mild soap or detergent, and a soft cloth or sponge. Rinse thoroughly and avoid abrasive pads, strong solvents, harsh alkaline cleaners, or unknown chemical products that may damage the surface.
Yes. For OEM orders, Gokai can discuss customized colors, dimensions, protective-film printing, labels, packaging, and other branding requirements based on project specifications and order volume.
They can be suitable when the thickness, internal structure, framing system, fastening method, support spacing, and local design loads are properly engineered. Buyers should provide local wind and snow conditions so the supplier or project engineer can recommend the correct sheet system.
1. Acme Plastics. *The Pros and Cons of Plastic Roofing Sheets.* Discusses common polycarbonate roofing applications, including greenhouses, patios, sheds, pool covers, and industrial structures, as well as general advantages and limitations of plastic roof panels. [Acme Plastics] [acmeplastics]
2. SABIC. *LEXAN™ THERMOCLEAR™ Sheet Technical Manual.* Provides technical information related to multiwall polycarbonate sheet performance, including impact behavior, temperature range, thermal properties, and example U-values for selected product configurations. [SABIC Technical Manual] [sabic]
3. Palram. *Thermal Expansion and Polycarbonate Roofing Sheets.* Explains why thermal movement must be considered and outlines expansion-friendly installation practices, including oversized holes, EPDM gaskets, suitable fastening, and compatible sealants. [Palram Installation Guidance] [palram]
4. Curbell Plastics. *Polycarbonate Material Properties.* Provides a material overview describing polycarbonate as a tough, transparent plastic with strong impact resistance, stiffness, and dimensional stability. [Curbell Plastics] [curbellplastics]
5. American Polycarbonate. *Multiwall Polycarbonate Installation Guide.* Covers UV protection, impact resistance, thermal expansion allowance, fastening precautions, and handling considerations for multiwall polycarbonate roof systems. [American Polycarbonate Installation Guide] [americanpolycarbonate]
6. Macrolux. *Macrolux Multiwall Polycarbonate Sheets.* Includes comparative information on thickness ranges, light transmission, thermal insulation values, operating temperature, and product configurations. [Macrolux Multiwall] [macroluxusa]
