Views: 258 Author: Gokai Publish Time: 2026-10-07 Origin: Site
Content Menu
● What Is the Difference Between Twinwall and Multiwall Polycarbonate?
● How Do Wall Structure and Thickness Affect Performance?
>> Compare U-Values, Not Just Wall Counts
>> Balance Light Transmission With Solar Heat
>> Check Weight and Loads Separately
● Which Sheet Fits Your Application?
>> Greenhouses and Cold Frames
>> Canopies, Pergolas and Carports
>> Skylights, Roofing and Cladding
● A Five-Step Checklist Before You Order
● Installation Details That Protect Performance
● What Should OEM Buyers Ask a Supplier?
● Common Specification Mistakes
● Make the Choice by Specification
>> 1. Is twinwall polycarbonate the same as multiwall polycarbonate?
>> 2. Is 16 mm multiwall always better than 10 mm twinwall?
>> 3. Which is better for a greenhouse?
>> 4. Can I install multiwall sheets with the flutes running sideways?
>> 5. Does every polycarbonate hollow sheet have UV protection on both sides?
>> 6. What information should I send for an OEM quote?
Twinwall vs. multiwall polycarbonate is not quite an either-or choice. Twinwall is itself a type of multiwall, or hollow, polycarbonate sheet. It has two outer walls connected by internal ribs. Other multiwall designs add walls or use different rib patterns. Those structural differences can affect insulation, daylight, weight and the way a panel fits its glazing system.
If you are buying sheets for a greenhouse, canopy, skylight or distribution range, start with the job the panel must do. A wall count alone cannot tell you whether a product will meet your thermal, structural or budget requirements.
A twinwall polycarbonate sheet has two outer skins with a single tier of hollow channels between them. It is a straightforward option when a project needs daylight, a lightweight panel and some thermal insulation.
Multiwall polycarbonate is the broader category. It includes twinwall sheets, as well as products with three or more walls or specialized internal structures. A supplier may use "multiwall" informally to mean a sheet with more than two walls. For a purchase order, however, "multiwall" alone is too vague.
A clear specification should name the thickness, cross-section, sheet weight, color, UV-protection configuration and intended fixing system. Ask for a drawing or a cut sample when the rib pattern matters.
| Buying consideration | Twinwall sheet | Other multiwall structures |
|---|---|---|
| Internal design | Two outer walls with connecting ribs | Additional walls or alternative rib patterns |
| Typical priority | A practical balance of daylight, weight and insulation | A more specific thermal, optical or structural target |
| Insulation | Depends on thickness and product design | May improve with a suitable structure; compare actual U-values |
| Daylight | Depends on grade and color | Also depends on grade, color and internal geometry |
| Best way to compare | Check the exact product data sheet | Check the exact product data sheet |
The key point: do not compare an unspecified "twinwall" panel with an unspecified "multiwall" panel. Compare two identified products under the same project requirements.
A U-value describes the rate of heat transfer through a material or assembly. A lower value means less heat passes through under the stated test or calculation conditions. This makes it useful when comparing panels for enclosed spaces, but it does not predict a building's total heating cost by itself.
Palram's published SUNLITE product table gives a useful illustration. Its 10 mm twinwall sheet has a stated U-value of 2.9 W/m²·K. Its 16 mm triple-wall sheet is listed at 2.3 W/m²·K, while its 16 mm X-Lite structure is listed at 2.1 W/m²·K. These are Palram product values, not Gokai specifications.
The comparison shows why both thickness and geometry matter. It does not mean every 16 mm multiwall sheet will perform alike. When reviewing quotations, compare data for the precise structure, color and grade being offered.
More daylight is not automatically better. A greenhouse buyer may prioritize light for a particular crop and climate. A buyer covering a sun-exposed waiting area may instead want softer light and less solar heat gain.
For example, Palram lists 79% light transmission for its clear 10 mm twinwall sheet and 76% for its clear 16 mm triple-wall sheet. Its clear 16 mm X-Lite sheet is listed at 60%. These figures illustrate the trade-off between specific products; they should not be treated as universal values for a wall type.
Color and coating can change the result substantially. Ask for both visible light transmission and, where occupant comfort matters, a solar heat gain figure. For agricultural projects, discuss the crop, growing season and condensation requirements rather than selecting a panel from a "clear versus tinted" label alone.
A thicker or more complex sheet is not automatically suitable for every span. Panel behavior depends on its geometry, sheet weight, support spacing, fixing method, orientation and expected wind or snow loads.
Compare the manufacturer's load-span guidance for the proposed panel and glazing system. For structural roofing or code-regulated work, the project designer must confirm the applicable loads and local requirements. Do not substitute a generic thickness recommendation for that check.

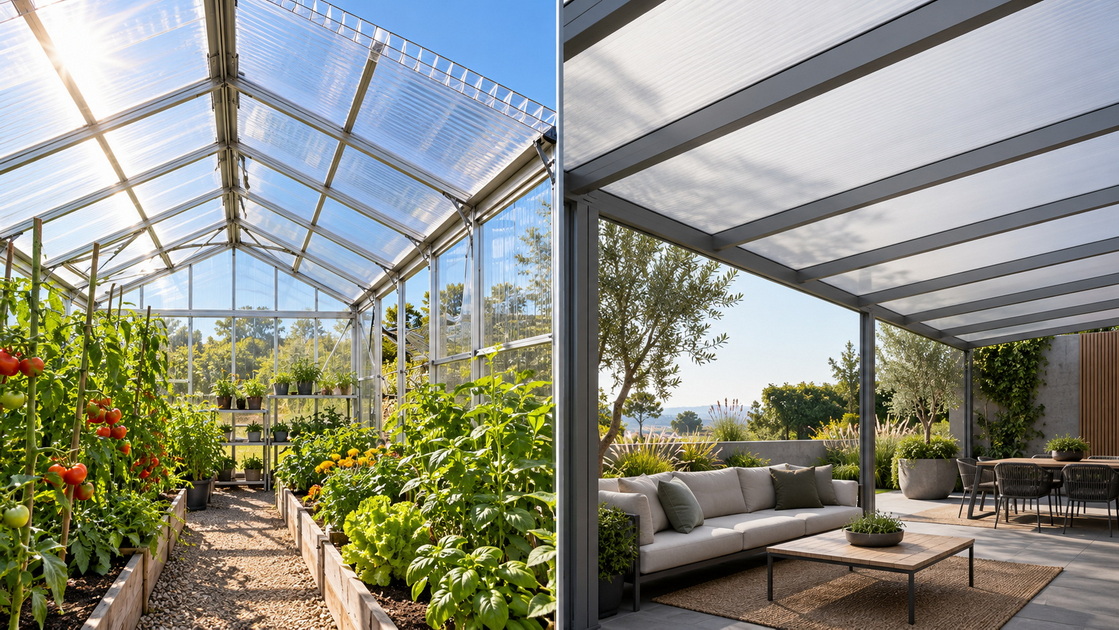

Twinwall is a sensible starting point for many greenhouse and cold-frame discussions. It offers a hollow insulating structure without requiring the buyer to begin with a more elaborate cross-section. The final choice still depends on climate, heating strategy, crop needs and the span of the frame.
For a heated or commercially operated greenhouse, compare several specific structures. Better insulation may be valuable, but it must be weighed against daylight, cost and ventilation. Ask whether an anti-condensation option is available if dripping onto plants is a concern. Do not assume every hollow sheet includes that treatment.
For an open-sided canopy, thermal insulation may matter less than shade, appearance and weather performance. A clear panel can admit ample daylight; an opal or solar-control option may suit an area where glare and heat are concerns.
First confirm the frame dimensions, support spacing and design loads. Then compare sheets that fit those conditions. This is more reliable than choosing "twinwall" or "multiwall" from the application name alone.
Enclosed roof glazing often calls for closer attention to U-value, condensation control, drainage and the complete fixing system. Multiwall structures give buyers more ways to balance these requirements. Yet a low sheet U-value does not correct a poorly detailed joint or an incompatible profile.
For cladding, appearance also matters. Request a physical sample and view it in the intended lighting. Internal ribs, tint and surface finish can look different in a building than they do in a small online image.
Practical example: a distributor sourcing panels for both backyard greenhouses and commercial skylights should consider separate specifications. One stock item does not have to solve two different performance problems.
The most effective way to avoid a disappointing comparison is to turn the project brief into measurable questions.
1. Define the use and environment. State whether the sheet will be used for a heated enclosure, open canopy, skylight or wall. Include location, orientation and any unusual exposure.
2. Describe the frame. Provide panel dimensions, support spacing, roof slope and the intended profiles. Ask the supplier to review the proposed sheet against its published installation and load guidance.
3. Set performance priorities. Rank insulation, daylight, solar control, appearance and budget. Request U-value and optical data for each shortlisted product.
4. Specify the construction. Record thickness, wall or rib pattern, nominal area weight, color and UV-protection side. Confirm that the supplied masking identifies the correct outward-facing surface.
5. Approve a sample and documents. Check a cut cross-section, current data sheet, installation instructions and agreed labeling before placing a volume order.
This process helps buyers compare like with like. It also creates a specification that sales, engineering, purchasing and installation teams can all check.

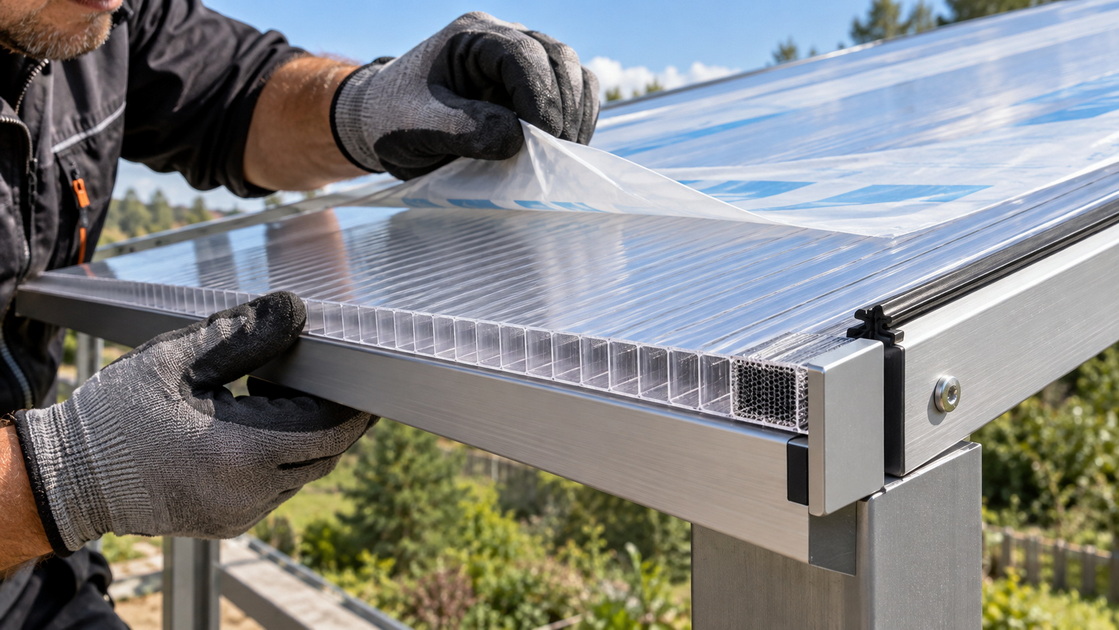

Correct installation is part of the product decision. A suitable sheet can still cause trouble if its channels cannot drain or the frame restrains normal movement.
- Orient the channels downhill. On sloped glazing, flutes should run in the direction of the slope so moisture can drain.
- Face the protected side outward. For one-sided UV-protected products, check the manufacturer's masking and installation instructions before removing the film.
- Allow for thermal expansion. Polycarbonate changes dimension as temperature changes. Follow the specified clearance and edge-engagement instructions rather than clamping a sheet tightly.
- Treat open ends correctly. Use the tape and closure-profile arrangement specified for the system. Upper and lower ends may require different details; drainage must not be blocked.
- Use compatible materials. Confirm that sealants, gaskets and cleaners are suitable for the selected polycarbonate sheet.
As an illustration, SABIC's LEXAN THERMOCLEAR manual advises allowing approximately 3 mm per linear meter for a 50°C temperature change in its general installation guidance. Treat this as an example from that manufacturer, not a universal gap to copy into every Gokai project. Follow the approved instructions for the exact sheet and frame.

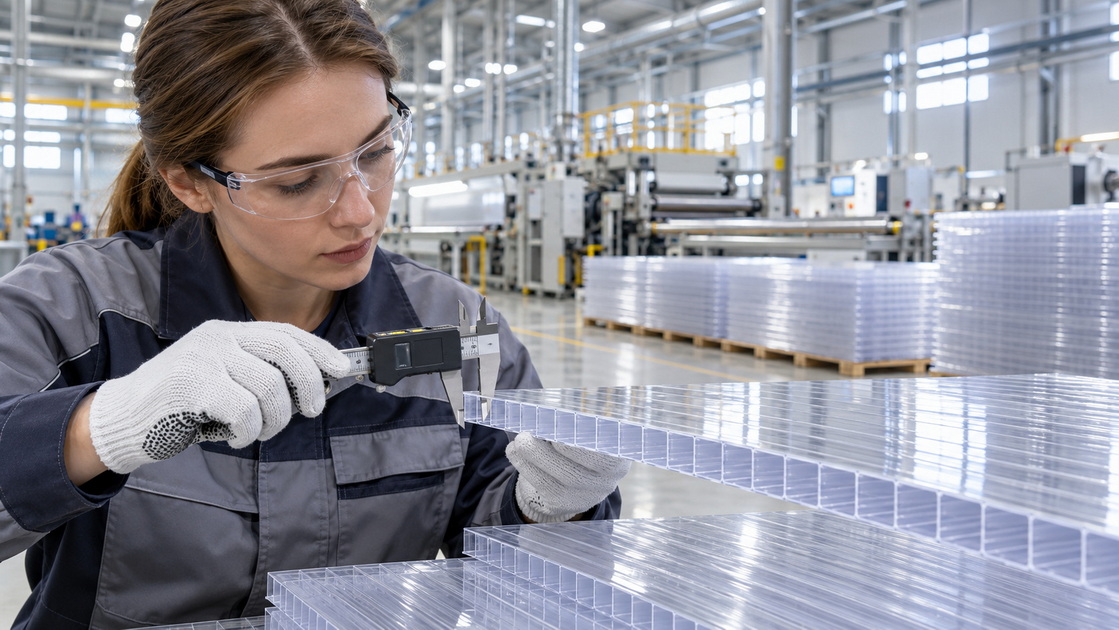

For a global distributor or project buyer, a good OEM brief goes beyond "10 mm clear polycarbonate." It should describe what customers expect to receive, install and reorder.
Ask the supplier to confirm:
- Product identity: structure drawing, thickness, nominal area weight and tolerances.
- Optical and thermal data: light transmission, U-value and any relevant solar-control information for the proposed grade.
- Outdoor configuration: UV-protected side or sides, masking identification and available supporting documents.
- Order format: sheet widths and lengths, cut-to-size requirements, color matching and packaging method.
- Installation compatibility: recommended profiles, tapes, edge details and available load-span tables.
- Commercial controls: sample approval, batch identification, labeling, inspection criteria and agreed shipping terms.
An OEM quotation should identify which specifications are standard, which require custom production, and which still need testing or confirmation. This prevents an attractive sample from becoming an unclear repeat-order specification.
At Gokai, we work with buyers seeking OEM polycarbonate hollow sheets for international projects and distribution. Share your application, target dimensions, structure, color, required documents and estimated quantity. We can then discuss a suitable specification and confirm available options before you commit to production.
The first mistake is to assume more walls always means a better sheet. The right product is the one that meets the project's measured priorities and fits its support system.
The second is to compare transmission percentages without checking color and grade. A clear twinwall sheet and a tinted multiwall sheet are not testing the same daylight objective.
The third is to treat the panel as the whole roof. Profiles, slope, edge sealing and movement allowance influence how the finished installation behaves. Ask for system-level guidance early, particularly when sheets will be installed by a separate contractor.
The useful question is not simply "twinwall or multiwall?" It is: which documented sheet structure meets this project's daylight, insulation, load and installation needs? Start with those requirements, verify the proposed product data, and approve a sample.
Request a Gokai OEM quote: send us your project brief and target sheet specification. We will discuss available polycarbonate hollow sheet options and the details needed for a dependable order.
Twinwall is one type of multiwall polycarbonate. It has two outer walls connected by ribs. "Multiwall" may also refer to three-wall, five-wall or other structured sheets. Specify the cross-section to avoid confusion.
No. A particular 16 mm product may offer a lower U-value, but "better" depends on the application. Consider light transmission, frame design, loads, appearance and cost alongside insulation.
Begin with the greenhouse's climate and operating needs. Compare clear-sheet light transmission, insulation and any condensation-control requirements. Check the exact product data and frame design before selecting a thickness or structure.
For typical sloped glazing, no. The channels should run downhill so moisture can drain. Follow the manufacturer's instructions for the specific product and application.
No. Product ranges can offer one-sided or two-sided protection. Confirm the grade and the marked installation face before ordering or fitting the panel.
Send the application, location, dimensions, structure, color, quantity and target performance. Include available frame drawings, packaging or labeling needs, and any test-document requirements. These details make quotations easier to compare.
1. [Acme Plastics, "Twinwall Polycarbonate vs. Multiwall Polycarbonate: What's the Difference?"] — The source article's definitions and application coverage were reviewed and substantially restructured; its wording was not reproduced. [acmeplastics]
2. [Palram Americas, SUNLITE Twinwall & Multiwall Polycarbonate Sheet] — Source for the named SUNLITE structures and the product-specific U-values and light-transmission figures used as comparisons. [palram]
3. [SABIC, *LEXAN THERMOCLEAR Multiwall Polycarbonate Sheet Technical Manual* (PDF)] — Source for the explanation of U-value and the manufacturer-specific guidance on thermal expansion, flute direction, edge treatment and installation. [sabic]
4. [Plaskolite, *POLYGAL Multiwall Fabrication Guide* (PDF)] — Additional technical guidance on UV-facing orientation, slope, chemical compatibility, installation and the need to match a panel to its support conditions. [plaskolite]
5. [Gokai, Polycarbonate Sheet Manufacturer: Solid & Hollow Sheets] — Gokai's published description of hollow-sheet production, UV-layer processing and protective masking; not a source for the other brands' performance figures. [gokai.com]
