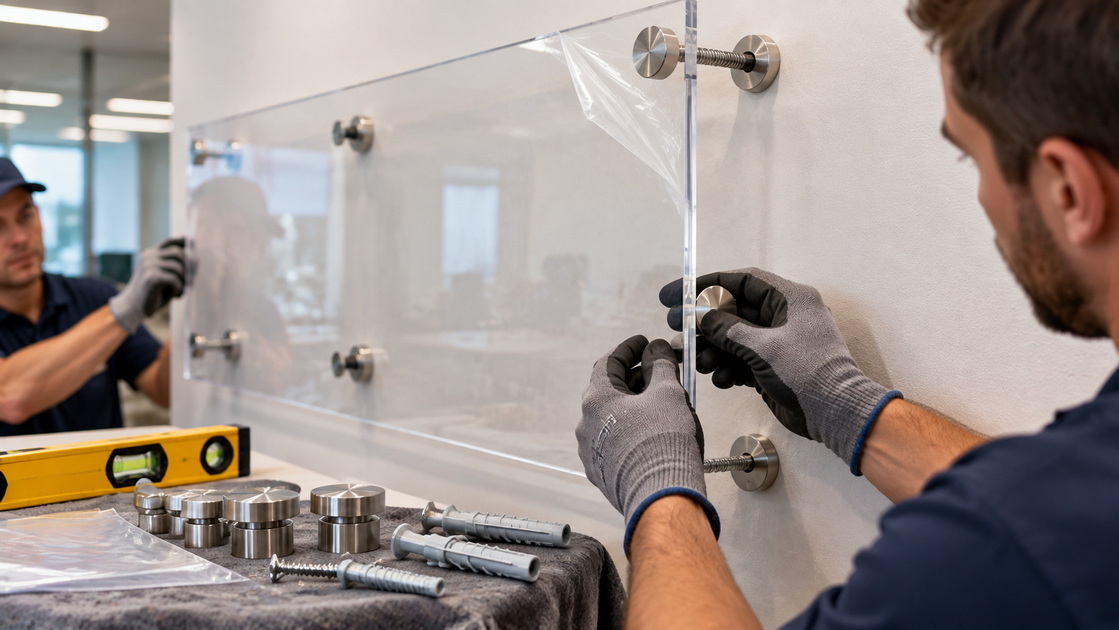

● How to Hang an Acrylic Sign With Standoff Bolts
>> Tools and Materials Checklist
>> 1: Inspect the Wall and Confirm the Sign Position
>> 2: Level the Acrylic Sign Before Marking Holes
>> 3: Drill the Wall and Install Suitable Anchors
>> 4: Install the Standoff Bases
>> 5: Place the Acrylic Sign Carefully
>> 6: Add Washers and Tighten the Caps Gently
>> 7: Check Alignment and Remove Protective Film
● Drilling Acrylic Sheet Without Causing Cracks
>> Best Practices for Drilling Acrylic Signs
>> Hole Size and Edge-Distance Rules
>> Why Thermal Expansion Cannot Be Ignored
● How to Hang Acrylic Signs Without Drilling
>> Use Adhesive Strips for Small, Light Indoor Signs
>> When Double-Sided Tape May Work
● Common Acrylic Sign Installation Mistakes
● Acrylic Sign Design Advice From an OEM Supplier Perspective
● Final Installation Checklist
● Request Custom Acrylic Sheets and OEM Signage Support
● FAQ
>> 1. What is the best way to hang an acrylic sign?
>> 2. Can I screw directly through acrylic sheet?
>> 3. How thick should acrylic be for wall signs?
>> 4. Can acrylic signs be mounted outdoors?
>> 5. Will Command strips hold an acrylic sign?
>> 6. Why did my acrylic sign crack around the screw hole?
>> 7. How do I clean an acrylic wall sign?
A well-installed acrylic sign does more than display a name or message—it communicates quality, credibility, and attention to detail. Whether you are mounting a reception logo, wayfinding panel, retail promotion, office directory, or illuminated display, the right acrylic sign mounting method protects the sheet, improves visual impact, and extends service life.
At Gokai, we work with acrylic sheet applications for signage, displays, interiors, and OEM projects. From a material and fabrication perspective, the most common installation failures are not caused by the acrylic sheet itself. They usually result from improper drilling, inadequate wall anchors, over-tightened screws, unsuitable adhesive, or insufficient allowance for thermal expansion. This guide explains how to hang acrylic signs correctly, safely, and professionally.
Acrylic signage is popular because it offers a premium, glass-like appearance at a lower weight. Quality acrylic sheet can provide excellent clarity, weather resistance, fabrication flexibility, and a high-gloss finish suitable for indoor and outdoor signage applications. Typical clear acrylic can transmit up to 92% of visible light, giving it the bright, polished look many brands want for reception signs, retail displays, and directional panels.
However, acrylic is not installed exactly like metal, wood, or glass. It can expand and contract as temperatures change, and localized pressure around drilled holes can create stress that may later lead to cracking or crazing. For that reason, professional acrylic sign installation requires the correct combination of:
- Appropriate acrylic sheet thickness
- Accurately drilled clearance holes
- Compatible mounting hardware
- Suitable wall anchors
- Controlled fastening pressure
- Adequate spacing for thermal movement
- A mounting method matched to the wall and sign weight
The original guidance from Acme Plastics correctly emphasizes selecting a visible location, leveling the sign, marking drill points, installing anchors, aligning standoffs, and avoiding over-tightening. It also notes that adhesive strips may work for smaller, lighter signs. However, a more complete professional guide must also address wall substrate, hardware selection, drilling practices, thermal expansion, weight planning, outdoor conditions, and long-term maintenance.

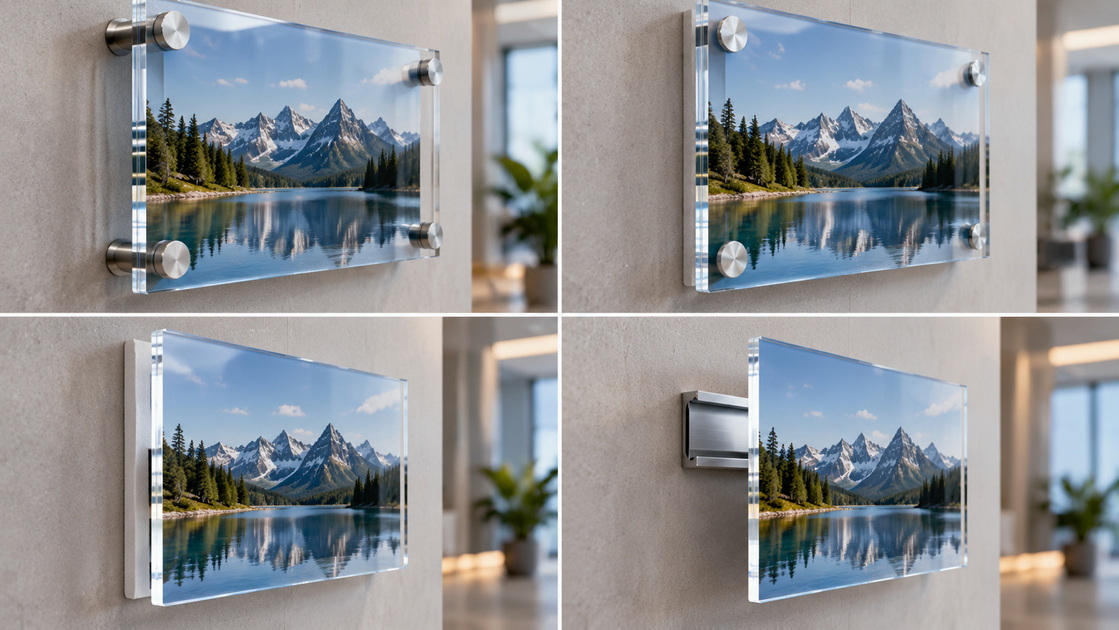

Before drilling or applying adhesive, choose the mounting method based on the sign's dimensions, thickness, weight, wall material, and installation environment.
| Mounting method | Best for | Main advantages | Important limitations |
|---|---|---|---|
| Standoff bolts | Reception signs, office logos, directories, premium brand panels | Professional floating effect, strong mechanical fixing, easy to clean behind sign | Requires drilled holes in wall and sheet |
| Screws with decorative caps | Functional signs, wall panels, industrial labels | Cost-effective, secure, straightforward | Less dimensional visual effect than standoffs |
| Adhesive strips | Small indoor acrylic signs, temporary displays, rental spaces | No drilling, quick installation | Limited weight capacity and surface compatibility |
| Double-sided mounting tape | Lightweight flat panels on smooth surfaces | Clean appearance, no visible hardware | Difficult to reposition; removal may damage paint |
| French cleat or hidden rail | Larger branded panels or layered sign systems | Strong, concealed mounting, removable for service | Requires fabrication planning and accurate leveling |
| Suspended cable system | Window displays, retail graphics, menu boards | Adjustable, visually light, good for glass-front areas | Not ideal for heavy or high-impact locations |
For most long-term business signage, standoff mounting remains the preferred option. It provides a secure connection, creates a modern floating appearance, and allows the sign to stand away from the wall for shadows and depth.
Standoff bolts are cylindrical hardware components that hold an acrylic sign slightly away from the wall. They are widely used for lobby signs, company logos, directional signage, donor boards, menus, and retail branding panels.
Prepare all materials before starting installation:
- Acrylic sign panel with pre-drilled mounting holes
- Standoff mounting hardware
- Wall screws and anchors suitable for the substrate
- Spirit level or laser level
- Tape measure
- Pencil or removable marking tape
- Power drill
- Drill bits appropriate for the wall material
- Screwdriver or drill driver
- Protective gloves and safety glasses
- Soft microfiber cloth
- Rubber, nylon, or silicone washers if supplied or required
If you need to drill the acrylic sign yourself, use a plastic-specific drill bit whenever possible. Acrylic drilling is best performed with the sheet firmly supported and the drill kept perpendicular to the panel. A slow, steady feed helps prevent chipping and heat buildup.
Start with the wall—not the sign. Identify whether you are installing into:
- Drywall with wood or metal studs
- Drywall without a nearby stud
- Concrete
- Brick or masonry
- Tile
- Wood paneling
- Metal framing
- Glass or another specialty surface
Acrylic sign hardware is only as secure as the wall anchor behind it. A large sign should not rely on light-duty drywall anchors alone unless the anchor type, number of fixing points, and load rating have been verified for the specific project.
Position the sign at the intended viewing height. For reception and office signs, center the main visual element around the viewer's typical eye level where practical. For wayfinding signs, ensure the text remains readable from the expected approach direction.
Use painter's tape or a temporary paper template to visualize placement before marking any holes.
Hold the acrylic sign in position with assistance if it is large or heavy. Place a spirit level along the top or bottom edge, then adjust until the sign is perfectly level.
Mark each pre-drilled hole location lightly with a pencil. For a sign with four mounting holes, verify the spacing diagonally as well as horizontally. This prevents a panel from appearing skewed even when the top edge seems level.
Professional tip: Measure from a fixed architectural reference point—such as the ceiling line, door frame, countertop, or adjacent panel—rather than relying only on a visual estimate.
Drill the marked holes to the diameter and depth recommended for the selected anchor. Remove dust from each hole before inserting the anchors.
The correct anchor depends on the wall:
| Wall type | Recommended mounting approach |
|---|---|
| Wood stud | Drive screws directly into the stud when possible |
| Drywall | Use rated hollow-wall anchors, toggle anchors, or self-drilling anchors matched to sign load |
| Concrete | Use masonry anchors or concrete screws |
| Brick | Drill into solid brick where possible, using suitable masonry anchors |
| Tile | Use a tile or diamond bit carefully, then anchor into the substrate behind it |
| Metal stud | Use anchors designed for thin-gauge metal framing or toggle systems |
Do not assume that all wall anchors have equal holding strength. The total sign weight, mounting point count, leverage created by standoff depth, vibration, and public-contact risk all affect the installation decision.
A standard standoff usually consists of:
1. A wall-mounted base
2. A barrel or spacer section
3. A front cap
4. A screw or threaded connector
5. A washer or protective interface, depending on the system
Separate the standoff cap from the base. Secure each base to the wall through the installed anchors. Make sure every base is firmly seated and aligned.
Avoid forcing the hardware into a crooked position. If one base is misaligned, the acrylic panel may twist when you install it, creating stress around the drilled holes.
With the protective film still on the front surface where possible, align the sign's holes with the installed standoff bases.
If the sign includes multiple layers—such as a clear acrylic backer with raised printed acrylic letters—handle it using clean gloves to avoid fingerprints, scratches, or pressure marks.
For large signs, use two installers. Acrylic is lighter than glass, but a large sheet can flex during handling. Excessive flexing can increase the risk of damage, especially near drilled holes or cutouts.
Place a washer between the cap and acrylic face if the hardware design calls for one. Nylon, rubber, or silicone washers can help distribute pressure and reduce direct metal-to-acrylic contact.
Tighten the caps evenly, but do not over-tighten them.
Over-tightening is one of the most common causes of acrylic sign cracks. Acrylic sheets need enough freedom to accommodate normal movement caused by temperature changes. A technical fabrication guide from PLASKOLITE recommends clearance around fasteners, appropriate edge distances, and avoidance of excessive fastening pressure to reduce cracking risk.
The goal is simple: the panel should be secure, flat, and stable—but not clamped under stress.
Once all caps are installed:
- Recheck the sign with a level
- Inspect the edges for uneven gaps
- Confirm that all mounting points are secure
- Remove the protective masking carefully
- Wipe fingerprints with a clean microfiber cloth
Do not use abrasive paper towels, rough cloths, sharp blades, or aggressive chemical cleaners on acrylic. Fine dust can scratch the surface if rubbed dry. A mild soap solution, clean water, and a soft non-abrasive cloth are generally safer choices for routine acrylic cleaning.
Pre-drilled acrylic signs simplify installation, but OEM buyers, fabricators, and installers may need to drill holes after receiving the sheet. This is where technical experience matters.

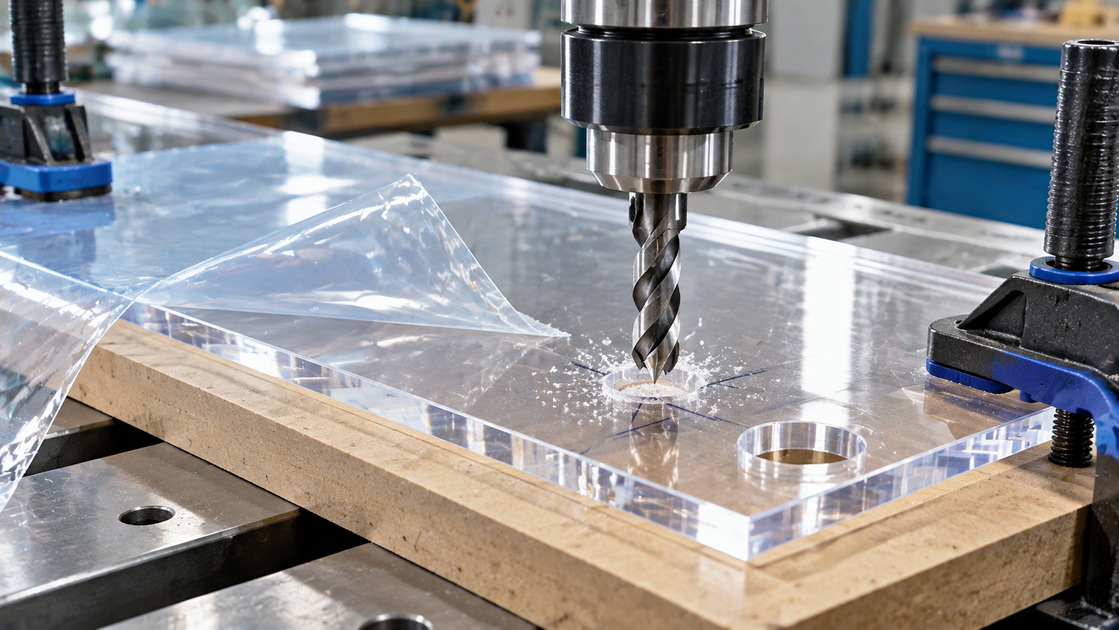

Acrylic can crack when drilling if the wrong bit, speed, support, or pressure is used. Standard drill bits may work in some situations, but bits designed or modified for acrylic are safer because they scrape the material rather than aggressively cutting and grabbing it.
- Keep the protective film on the sheet during drilling.
- Place the acrylic on a flat sacrificial backing board.
- Clamp the sheet securely without excessive pressure.
- Use a sharp, plastic-specific drill bit when available.
- Keep the drill bit vertical to the sheet.
- Drill at a controlled, steady speed.
- Reduce feed pressure as the bit exits the back side.
- Use compressed air or compatible cooling methods to reduce heat.
- Clear chips regularly when drilling thicker material.
- Deburr holes gently without creating stress points.
For mechanical fasteners, acrylic mounting holes should generally allow clearance rather than tightly gripping the screw shank. PLASKOLITE's fabrication guidance states that the clearance hole for a bolt should be at least twice the bolt diameter, while the distance from the hole center to the sheet edge should be at least 1.5 times the drilled-hole diameter. The guide also notes that hole placement and clearance help accommodate thermal expansion and contraction.
This does not mean every project uses identical dimensions. Final hole design should account for the sign's thickness, fastener size, panel dimensions, expected temperature range, wall condition, and application environment.
Acrylic expands more than many common building materials. One manufacturer guide lists a linear thermal-expansion rate of approximately 0.060 inches per 12 inches of acrylic over a 70°F temperature change.
For a small indoor desk sign, this movement may be negligible. For a large outdoor panel exposed to direct sunlight, it can become significant.
This is why a professional outdoor installation should avoid turning every screw into a rigid fixed point. Use clearance holes, washers, appropriate standoff spacing, and installation practices that permit controlled movement.
For lightweight indoor acrylic signs, drilling may not be necessary. Adhesive mounting can be a practical choice for temporary displays, rental spaces, small room labels, promotional graphics, or lightweight wall panels.
However, adhesive mounting is not a universal replacement for mechanical fastening.
Removable picture-hanging strips can be useful when the sign is light enough and the wall surface is smooth, clean, dry, and compatible with the product instructions.
Command's official guidance recommends waiting seven days after painting before application, cleaning the wall with rubbing alcohol rather than household cleaners or water, pressing strips firmly, and waiting one hour before hanging the object. The brand also advises against use over beds, on wallpaper, or for valuable or irreplaceable items.
Before using any adhesive system:
1. Weigh the finished acrylic sign, including printed graphics and decorative layers.
2. Check the exact load rating of the selected adhesive product.
3. Confirm that the wall surface is compatible.
4. Clean and dry the surface exactly as instructed.
5. Use the recommended number of strips.
6. Allow the adhesive to cure before loading it.
7. Test the installation carefully before placing the sign in a public-facing area.
High-bond double-sided tape can create a clean, hardware-free appearance. It is often used for small acrylic labels, lightweight display panels, and smooth interior surfaces.
Choose tape mounting only when:
- The acrylic panel is relatively small and lightweight.
- The substrate is flat, clean, dry, and stable.
- Long-term removal is not a major concern.
- The sign will not experience high heat, direct weather, vibration, or public impact.
- You have tested tape adhesion on the actual substrate.
Avoid using ordinary household tape for permanent business signage. It may fail unexpectedly, leave residue, damage paint, or create uneven support that stresses the acrylic.
The following mistakes can reduce the appearance, safety, and lifespan of an acrylic sign:
- Over-tightening standoff caps and creating stress cracks around holes.
- Using undersized or unsuitable wall anchors for a large panel.
- Ignoring wall type, especially drywall, hollow partitions, tile, or masonry.
- Drilling too close to the edge of the acrylic sheet.
- Using a dull or aggressive drill bit that chips or melts acrylic.
- Forcing fasteners through undersized holes.
- Mounting an outdoor panel without accounting for thermal movement.
- Using adhesive strips on textured, dusty, damp, or freshly painted walls.
- Cleaning acrylic with abrasive materials or incompatible chemicals.
- Leaving protective masking on outdoor acrylic for too long, which can make film removal difficult after weather exposure.
The best installation outcome starts before production. When ordering OEM acrylic signs, do not treat mounting holes as a last-minute detail. Include installation requirements in the product specification.
For a smoother project, provide your acrylic sign supplier with:
- Finished sign dimensions
- Acrylic thickness
- Intended mounting method
- Number and position of mounting holes
- Hole diameter
- Standoff diameter and depth
- Wall substrate type
- Indoor or outdoor use
- Expected temperature exposure
- Printed, engraved, UV-printed, or layered design requirements
- Required packaging and installation hardware
For example, a small indoor directional sign may use thin clear acrylic, rounded corners, four pre-drilled holes, and black standoff caps. A large outdoor brand sign may require thicker UV-resistant acrylic, controlled hole spacing, oversized clearance holes, stainless-steel hardware, and custom protective packaging for export.
At Gokai, OEM acrylic sheet and signage projects can be planned around the final application rather than simply supplying a standard panel. This reduces downstream fabrication problems and helps buyers receive material that is easier to print, cut, drill, install, and maintain.
Before leaving the installation site, verify the following:
- The sign is level horizontally and vertically.
- All standoffs or fasteners are fully secured.
- The acrylic is not visibly bowed, twisted, or stressed.
- No cap is over-tightened.
- The wall anchors are suitable for the wall type and load.
- Mounting holes remain free from cracks.
- Protective film has been removed after installation.
- The sign surface is clean and scratch-free.
- Adhesive-mounted signs have completed their recommended curing time.
- Outdoor signs have adequate allowance for movement and weather exposure.
Acrylic signage should look effortless after installation—but that result depends on careful decisions about material, thickness, drilling, hardware, and wall conditions.
If you are sourcing acrylic sheet, custom-cut acrylic panels, printed sign boards, standoff-mounted office signs, or OEM acrylic display components, Gokai can help you evaluate the right material and fabrication approach for your project. Share your drawings, dimensions, thickness requirement, mounting method, target market, and application environment to receive a more practical OEM solution.
Contact Gokai today to discuss custom acrylic sheet specifications, drilled panels, signage materials, packaging, and global OEM supply options.
For most permanent office, retail, and reception signs, standoff bolts are the best option. They provide a secure mechanical fixing, create a premium floating effect, and make it easier to clean behind the sign. Small, lightweight indoor signs may also be mounted with rated adhesive strips or high-bond tape.
Yes, but the holes should be drilled correctly and should not clamp the acrylic too tightly. Use properly sized clearance holes, maintain safe edge distance, use washers where appropriate, and avoid over-tightening. Acrylic needs room to accommodate normal thermal movement.
The ideal thickness depends on sign dimensions, mounting method, design layers, and expected handling. Thin acrylic may work for small labels and lightweight panels, while larger reception signs and freestanding display panels often require thicker material for stiffness and a more premium appearance. Discuss the application with your acrylic supplier before production.
Yes, acrylic can be used for outdoor signage when the grade, thickness, printing system, mounting hardware, and installation design are appropriate. Outdoor panels require special attention to UV exposure, wind load, thermal expansion, water management, and corrosion-resistant hardware.
They can hold some lightweight indoor acrylic signs if the sign weight, wall type, temperature, and installation instructions match the product's requirements. Follow the manufacturer's preparation and curing guidance, including cleaning with rubbing alcohol and waiting one hour after application before loading the strips.
Common causes include over-tightened caps, holes drilled too close to the edge, undersized holes, poor drilling technique, excessive panel flexing, or insufficient allowance for thermal expansion. Replace cracked panels rather than trying to force them back into service.
Use lukewarm water, mild soap if necessary, and a clean, soft microfiber cloth. Avoid dry wiping dusty acrylic, abrasive pads, rough paper towels, razors, and aggressive solvents. Gently blot dry after cleaning to reduce scratch risk.
1. Acme Plastics. "[Tips for Hanging Acrylic Signs]." Guidance on locating, leveling, marking, anchoring, and mounting acrylic signs with standoff bolts, plus basic no-drill mounting options. [acmeplastics]
2. 3M Command Brand. "[How to Use Command™ Picture Hanging Strips]." Official instructions covering compatible application conditions, wall preparation, pressing time, curing time, and removal methods for Command picture-hanging strips. [command]
3. PLASKOLITE. "[OPTIX® Acrylic Sheet Fabrication Guide]." Technical reference for acrylic properties, drilling, clearance holes, edge distance, fastening, thermal expansion, machining, cleaning, and installation recommendations. [plaskolite]
4. Interstate Plastics. "[Acrylic Fabrication & Machining Guide]." Additional practical fabrication guidance, including the importance of supporting acrylic sheets with a backing board during drilling. [interstateplastics]
5. Duralight Plastics. "[Acrylic Installation Guide]." Installation and drilling guidance emphasizing plastic-specific drill bits, steady drilling, cooling, and backing support. [duralightplastics]
