Views: 239 Author: Gokai Publish Time: 2026-10-08 Origin: Site
Content Menu
● What Is Polycarbonate Hollow Sheet?
● Polycarbonate Hollow Sheet vs. Corrugated Polycarbonate Panels
● Why Polycarbonate Hollow Sheet Is Used in Commercial Projects
>> High Impact Resistance for Safer Daylighting
>> Better Thermal Performance Than Single-Layer Panels
>> UV Protection Matters More Than "UV Resistant" Marketing
● How to Select the Right Polycarbonate Hollow Sheet
>> 1. Define the Application and Load Conditions
>> 2. Choose Light Transmission and Color Intentionally
>> 3. Confirm Thickness, Wall Structure, and Dimensions
>> 4. Plan for Expansion and Contraction
>> 5. Specify Compatible Accessories
● Expert Installation Practices for Polycarbonate Hollow Sheet
>> Install the UV-Protected Side Facing Outward
>> Keep Flutes Running With the Roof Slope
>> Seal the Top and Vent the Bottom
● Common Buyer Mistakes—and How to Avoid Them
>> 1: Treating All Polycarbonate Sheets as the Same
>> 2: Choosing Thickness Only by Price
>> 3: Ignoring Climate and Orientation
>> 4: Using Incompatible Sealants or Cleaners
● Why OEM Buyers Choose Gokai Polycarbonate Hollow Sheet
● Request an OEM Polycarbonate Hollow Sheet Quote
>> 1. What is the difference between polycarbonate hollow sheet and solid polycarbonate sheet?
>> 2. Is polycarbonate hollow sheet suitable for greenhouses?
>> 3. Which side of a polycarbonate hollow sheet faces the sun?
>> 4. Can polycarbonate hollow sheets be cut on site?
>> 5. Do multiwall polycarbonate sheets need expansion gaps?
>> 6. How do I prevent condensation and dirt inside the sheet channels?
>> 7. Can Gokai provide OEM polycarbonate hollow sheets?
Polycarbonate hollow sheet is one of the most versatile daylighting and protective glazing materials for modern construction, agriculture, and industrial projects. For distributors, contractors, greenhouse builders, and OEM buyers, the right sheet design is not simply about choosing a thickness—it requires matching structure, UV protection, light transmission, insulation, load requirements, and installation details to the final application.
At Gokai, we supply polycarbonate hollow sheets, including multiwall/twin-wall sheet solutions, for global OEM projects. This guide explains how hollow polycarbonate differs from corrugated polycarbonate panels, where each material performs best, how to avoid common installation failures, and what B2B buyers should specify before placing an OEM order.
A polycarbonate hollow sheet, also called a multiwall polycarbonate sheet, is an engineered thermoplastic panel with internal ribs and hollow chambers. The ribs connect two or more outer surfaces, creating a lightweight but stiff sheet structure.
Depending on the design, a hollow polycarbonate panel may be produced as:
- Twin-wall polycarbonate sheet
- Triple-wall polycarbonate sheet
- Four-wall or X-structure polycarbonate sheet
- Honeycomb polycarbonate sheet
- Multiwall polycarbonate roofing sheet
The internal channels reduce material weight while improving stiffness and thermal insulation compared with a solid sheet of similar dimensions. This makes polycarbonate hollow sheet particularly suitable for roofing, skylights, greenhouses, awnings, partitions, covered walkways, and industrial daylighting systems.

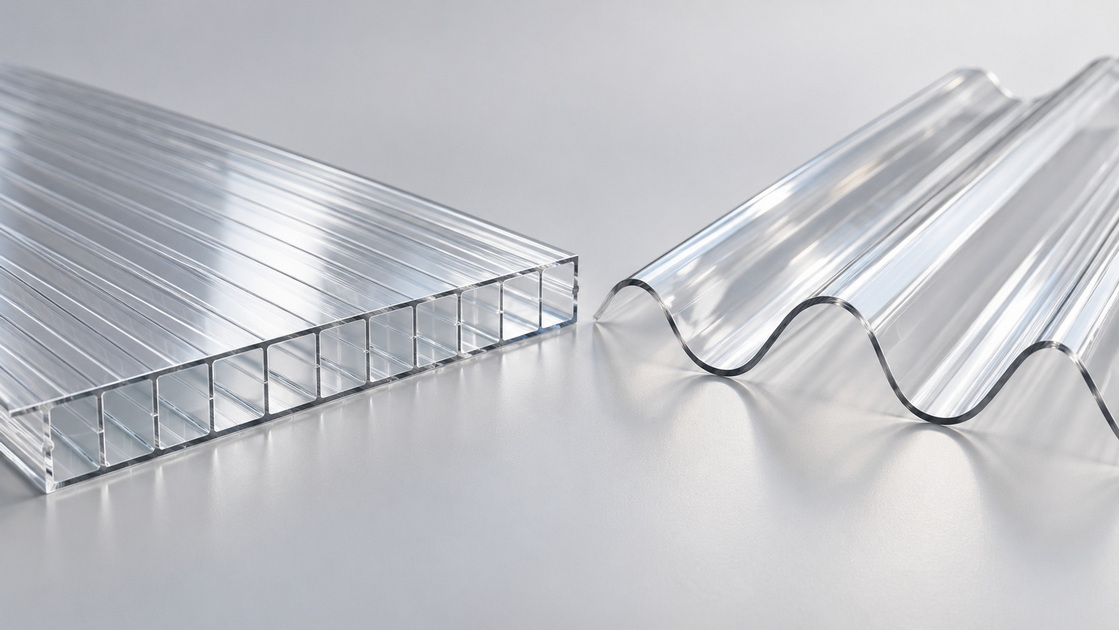

Unlike a corrugated polycarbonate panel, which gains rigidity from its wave-like profile, a hollow sheet gains its performance from internal flutes or cellular chambers. Both options can provide light transmission, weather resistance, and impact resistance, but they solve different project requirements.
The original competitor content correctly identifies corrugated polycarbonate as a lightweight, weather-resistant material used in roofing and siding. However, a buyer needs a clearer distinction: corrugated panels are generally selected for simple profile roofing and cladding, while hollow polycarbonate sheets are often selected when insulation, cleaner aesthetics, and broader structural options matter.
| Feature | Polycarbonate Hollow Sheet | Corrugated Polycarbonate Panel |
|---|---|---|
| Main structure | Internal chambers, ribs, or flutes | Wave-shaped or profiled surface |
| Typical use | Greenhouses, skylights, canopies, partitions, roofing | Agricultural roofs, sheds, carports, siding, simple roofing |
| Thermal insulation | Better due to trapped air layers | Usually lower because it is generally single-layer |
| Weight | Lightweight for its rigidity | Lightweight and easy to handle |
| Light diffusion | Available in clear, opal, bronze, and diffused options | Often clear or translucent, depending on profile and grade |
| Installation system | Aluminum profiles, H-profiles, U-profiles, glazing bars, screws | Overlapping panels, roofing screws, gaskets, closures |
| Design flexibility | Suitable for premium architectural systems | Suitable for economical profile-matching roofs |
| OEM customization | Thickness, color, UV layer, dimensions, packaging, branding | Profile, thickness, color, length, UV treatment, packaging |
For a greenhouse, enclosed patio roof, insulated skylight, or daylighting facade, multiwall polycarbonate sheets usually offer a more balanced combination of light transmission and thermal performance. For a basic agricultural cover, carport, or low-complexity roofing project, corrugated polycarbonate can be a practical and economical option.
Polycarbonate is widely specified because it combines transparency, toughness, low weight, and design flexibility. A clear 3 mm polycarbonate sheet can provide approximately 86% light transmission under ASTM D1003 testing, although actual transmission changes with thickness, color, surface treatment, and internal sheet structure.
For B2B buyers, the real value lies in how these properties work together.
Glass may offer excellent clarity, but it can break under impact. Multiwall polycarbonate is frequently chosen for applications where safety and durability are more important than glass-like optical precision.
Common project environments include:
- Greenhouse roofing exposed to wind, hail, and falling debris
- Factory skylights and rooflights
- Walkway covers and platform shelters
- Carports and bicycle shelters
- School, sports, and public-facility canopies
- Interior partitions that require light without using fragile glazing
A supplier should avoid making broad impact claims without identifying the sheet grade, thickness, test method, and support spacing. Actual performance depends on the panel configuration and the complete installed system—not only the base resin.
The hollow chambers inside a multiwall polycarbonate sheet create air spaces that help reduce heat transfer. This can make the material more suitable than single-layer corrugated panels for applications that need daylighting while attempting to moderate indoor heat loss or heat gain.
For example, greenhouse operators often need to balance:
- Daylight availability
- Crop protection
- Condensation control
- Seasonal heating costs
- Ventilation requirements
- Resistance to weather exposure
A thicker multiwall construction does not automatically mean it is best for every project. Higher thickness may improve insulation, but it can also change light transmission, cost, framing needs, and visual appearance. The correct selection should be based on climate, roof slope, structural design, and project goals.
Outdoor polycarbonate needs a properly engineered UV-protection layer. Without adequate UV protection, prolonged exposure to sunlight may contribute to discoloration, surface degradation, and loss of mechanical performance.
Many multiwall polycarbonate sheets use a UV-protected surface that must face the sun or exterior environment during installation. Installation guides commonly identify the printed or marked protective-film side as the UV-protected side.
For global OEM orders, buyers should confirm:
- Is UV protection applied to one side or both sides?
- Is the UV layer co-extruded or surface coated?
- Which side must face outward?
- Is the protective film clearly marked?
- What warranty conditions apply?
- What weathering, optical, or UV test data is available for the specific grade?
A serious supplier should provide technical documentation rather than relying only on phrases such as "anti-UV," "weatherproof," or "long service life."
Choosing the wrong panel structure can create expensive downstream problems: roof deflection, leaks, discoloration, unwanted heat buildup, condensation, or poor appearance after installation.
Use the following procurement checklist before finalizing a polycarbonate hollow sheet order.
Start with where and how the panel will be used.
Ask:
- Is the sheet for roofing, wall cladding, a skylight, a partition, or a greenhouse?
- Will the panel be installed horizontally, vertically, or on a sloped roof?
- What are the local wind, snow, rainfall, and hail conditions?
- What is the purlin or rafter spacing?
- Does the building code require a particular fire, impact, or structural rating?
A lightweight roof sheet must still be supported correctly. The required support spacing is not universal; it changes with sheet thickness, multiwall structure, span direction, loading conditions, and the project's engineering requirements.
Clear polycarbonate is often used where maximum daylight is needed. However, clear is not always the best choice.
| Color or Surface Option | Typical Project Objective |
|---|---|
| Clear | Maximum visible light for skylights, walkways, and display areas |
| Opal or white | Softer, more diffused daylight and reduced glare |
| Bronze | More shade and a darker architectural appearance |
| Green or blue | Decorative roofing and visual identity applications |
| Embossed or diffused | Better privacy and more even light distribution |
For agricultural projects, a diffused sheet may help distribute light more evenly than a highly transparent panel. For a patio canopy, bronze or opal panels may improve occupant comfort by reducing glare. The choice should be based on function, not only appearance.
A global buyer should specify the full product configuration, including:
- Sheet thickness
- Number of walls or chamber design
- Width and cut-to-length requirements
- Color and transparency
- UV-protected side or dual-sided UV protection
- Protective film details
- Surface finish
- Packaging method
- Pallet specification
- Container loading plan
- Private-label branding requirements
For OEM customers, these specifications help prevent inconsistent deliveries and reduce disputes between procurement, installation, and quality-control teams.
Polycarbonate expands and contracts with temperature changes. This is one of the most important details that inexperienced installers overlook.
Industry installation guidance recommends allowing room for movement, using oversized pre-drilled fixing holes, avoiding over-tightened screws, and using compatible gaskets or sealants. If a sheet is clamped too tightly, thermal movement may lead to buckling, stress around fasteners, distortion, or cracking.
A technical guide for multiwall polycarbonate reports a thermal movement allowance of approximately 0.04 inch per foot per 100°F temperature differential; bronze sheets may require additional allowance. This figure should be treated as a planning reference, not a substitute for the installation instructions of the specific product system.
A quality sheet can still fail if the accessories are wrong. For multiwall polycarbonate projects, commonly required accessories include:
- Aluminum glazing bars
- Polycarbonate H-profiles
- U-profiles or end caps
- EPDM gaskets
- Breather tape
- Solid sealing tape
- Compatible neutral-cure silicone
- Corrosion-resistant fasteners
- Flashing and closure components
Always confirm chemical compatibility. Certain sealants, cleaners, solvents, or adhesives can damage polycarbonate surfaces or increase stress-cracking risk.
Correct installation protects product performance, appearance, and warranty eligibility. The following practices are especially important for roofing and greenhouse projects.
If the sheet uses one-sided UV protection, the protected side must face sunlight. The printed protective film typically identifies that side. Installing the panel upside down can shorten outdoor service life and undermine weathering performance.
For hollow polycarbonate roofing, internal channels should normally run in the direction of the roof slope. This helps drainage and reduces the chance that moisture remains trapped inside the flutes. Installation guidance also emphasizes orienting flutes downward to support drainage.
The upper ends of the channels should be protected from debris and moisture. The lower ends require a system that allows condensation to drain and the sheet to breathe appropriately. A common approach uses solid tape at the top and perforated breather tape at the bottom, paired with suitable end profiles.
Fasteners should hold the system securely, but excessive tightening can deform the sheet and create stress concentration around the fixing point. Use the recommended gasket, correct screw type, and oversized holes where required to allow thermal movement.
The competitor article highlights general benefits but does not adequately address failure risks. In practice, most complaints about polycarbonate panels are linked to product selection, installation, or specification gaps.
Not every sheet has the same UV layer, resin quality, wall design, warranty, optical performance, or structural capability.
Better approach: Request a technical data sheet, samples, product drawings, UV-side identification details, and test documentation for the exact grade being purchased.
A thinner sheet may reduce purchase cost but may require tighter support spacing or offer less insulation. A thicker sheet may add cost without delivering meaningful value for a low-demand application.
Better approach: Evaluate total installed value, including framing, freight, labor, energy performance, expected lifespan, and maintenance risk.
A clear panel on a hot, south-facing canopy may create excessive glare and solar heat. A dark or low-transmission panel may be unsuitable for a greenhouse requiring high daylight levels.
Better approach: Consider local climate, roof orientation, ventilation, shading, and the end user's comfort or crop-lighting needs before selecting color and thickness.
Harsh chemicals and unsuitable adhesives can damage polycarbonate.
Better approach: Use supplier-approved neutral-cure sealants and cleaning instructions. Test any unfamiliar chemical product before full-scale use.
For distributors, construction-material brands, agricultural-project suppliers, and importers, an OEM supplier must provide more than a sheet product. The supplier should help transform product specifications into reliable, repeatable deliveries.
Gokai can support global OEM customers with customized polycarbonate hollow sheet solutions based on project and market requirements, including:
- Customized thickness and multiwall structure
- Clear, opal, bronze, colored, and diffused options
- UV-protection configurations
- Cut-to-length and packaging requirements
- Protective film and private-label options
- Export-ready palletization and container loading support
- Sample evaluation and technical specification communication
The best OEM relationship starts with a clear product brief. Before requesting a quotation, prepare your target sheet dimensions, thickness, color, project application, annual volume, destination market, loading preference, and any required standards or documentation.
Looking for a dependable polycarbonate hollow sheet supplier for greenhouse panels, skylights, canopies, roofing, or private-label distribution?
Contact Gokai with your required thickness, sheet structure, color, dimensions, UV-protection needs, and estimated order quantity. Our team can help you evaluate the appropriate multiwall polycarbonate sheet configuration for your application and prepare an OEM-oriented quotation.
Polycarbonate hollow sheet contains internal air chambers and ribs, so it is lighter and typically provides better thermal insulation. Solid polycarbonate sheet is denser, offers a more glass-like appearance, and may be preferred for machine guards, security glazing, signage, and applications requiring a solid cross-section.
Yes. Multiwall polycarbonate sheet is widely used for greenhouse roofing and walls because it can provide daylight transmission, impact resistance, UV protection, and improved insulation compared with single-layer glazing. The ideal thickness and light-diffusion level should be selected according to climate and crop requirements.
For sheets with UV protection on one side, the UV-protected side must face outward toward the sun. The protective film is usually printed or marked to identify the correct side.
Yes. Polycarbonate sheets can generally be cut with suitable tools, such as a fine-tooth circular saw or jigsaw. Support the sheet during cutting, remove chips from the internal channels, and reseal the edges with the specified tape and profiles after cutting.
Yes. Polycarbonate changes dimension with temperature. Allowing expansion gaps, using oversized holes where required, and avoiding over-tightened fasteners helps reduce stress, deformation, and premature failure.
Install the sheet with flutes following the roof slope, use solid tape at the upper edge, use perforated breather tape at the lower edge, and fit suitable end caps or U-profiles. This allows controlled drainage while reducing dust and insect entry.
Yes. Gokai can support OEM requirements such as custom dimensions, thicknesses, color options, UV protection, protective film, packaging, and private-label requirements. Confirm the final specification, target application, destination market, and required documentation before production.
1. Piedmont Plastics. "[Corrugated Polycarbonate Panels FAQ]." Accessed September 2026.
2. SABIC. "[LEXAN™ THERMOCLEAR™ Multiwall Polycarbonate Sheet Technical Manual]." Product technical manual.
3. Palram. "[Thermal Expansion and Polycarbonate Roofing Sheets]." Installation guidance, 2023.
4. Plaskolite. "[TUFFAK® Polycarbonate Sheet Fabrication Guide]." Technical data and fabrication guidance.
5. Duralight Plastics. "[Multiwall Polycarbonate Technical and Installation Guide]." Installation and thermal-movement guidance.
6. 365 Plastics. "[How to Install Multiwall Polycarbonate Roofing Sheets]." Installation guidance, 2024.
7. Polycarbonate Store. "[Step-by-Step Guide to Installing Multi-Wall Polycarbonate Panels]." UV-side and installation guidance.
