Cutting acrylic (PMMA) might seem straightforward, but achieving a distortion-free, glass-like edge requires an understanding of the material's thermal properties and molecular structure. As a leading global supplier of high-quality acrylic sheets, Gokai has overseen thousands of OEM projects. In this comprehensive guide, we combine industrial expertise with practical workshop tips to ensure your next project is a success.

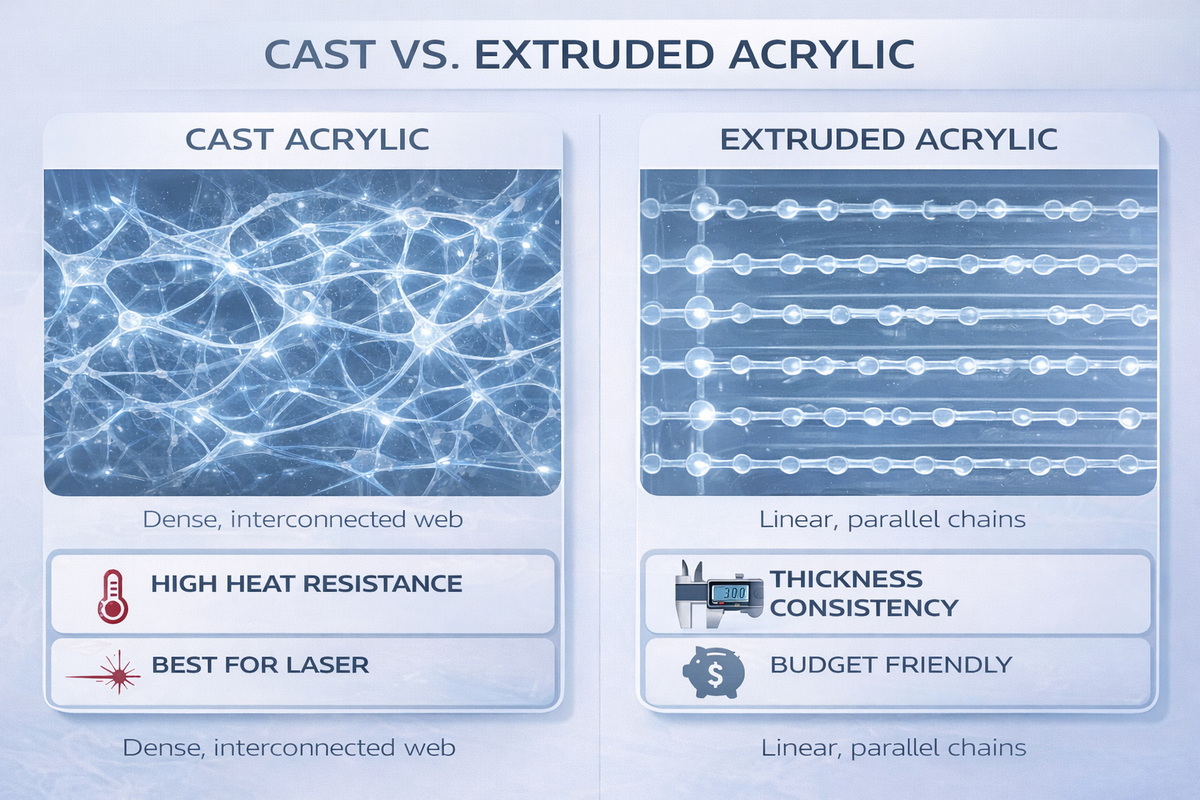

Before picking up a tool, you must identify your material. The "how" of cutting is dictated by the "how" of manufacturing.
Cast Acrylic: Higher molecular weight, better for laser cutting and machining. It doesn't melt as easily, providing a cleaner finish.
Extruded Acrylic: More dimensionally stable in thickness but prone to melting during high-speed friction cutting.
For thin sheets (up to 1/4 inch or 6mm), the simplest and most cost-effective method is the hand-scoring technique. This relies on creating a "stress riser" in the material.
Preparation: Leave the protective film on the sheet to prevent surface scratches.
Marking: Use a fine-tip permanent marker and a metal straightedge.
The Score: Use a specialized acrylic scoring knife. Draw the knife toward you 5–10 times until you have a groove roughly 1/3 of the way through the thickness.
The Snap: Place the sheet on a flat table with the scored line aligned with the edge. Apply quick, even downward pressure.
Pro Tip: Never try to "saw" with a scoring knife. It is a precision tool meant to weaken the molecular bond along a specific vector.
When dealing with heavy-duty acrylic plates (6mm to 25mm+), manual scoring is impossible. You need mechanical intervention.
To avoid chipping, you must use a plastic-cutting blade.
Tooth Count: Look for a "Triple Chip Grind" (TCG) blade with 60 to 80 teeth.
Heat Management: If the blade moves too slowly, the friction creates heat, melting the plastic onto the blade. If it moves too fast, it chips.
For intricate shapes, a jigsaw is essential.
Blade Selection: Use a "Metal Cutting" or "Fine Tooth Plastic" blade.
Stability: Clamp the acrylic firmly to a sacrificial piece of plywood to prevent vibration, which is the #1 cause of cracking.
For OEM clients and large-scale production, manual methods lack the necessary repeatability.
Laser cutting (CO2) is the gold standard for Cast Acrylic.
Flame-Polished Edges: The laser vaporizes the material, leaving behind a clear, polished edge that requires no further finishing.
Precision: Tolerances can reach $\pm 0.1mm$.
Because lasers can cause "crazing" (small cracks) in extruded acrylic due to thermal stress, CNC Routing is often the better choice for high-volume mechanical parts. It provides dimensional accuracy without the heat-affected zone.

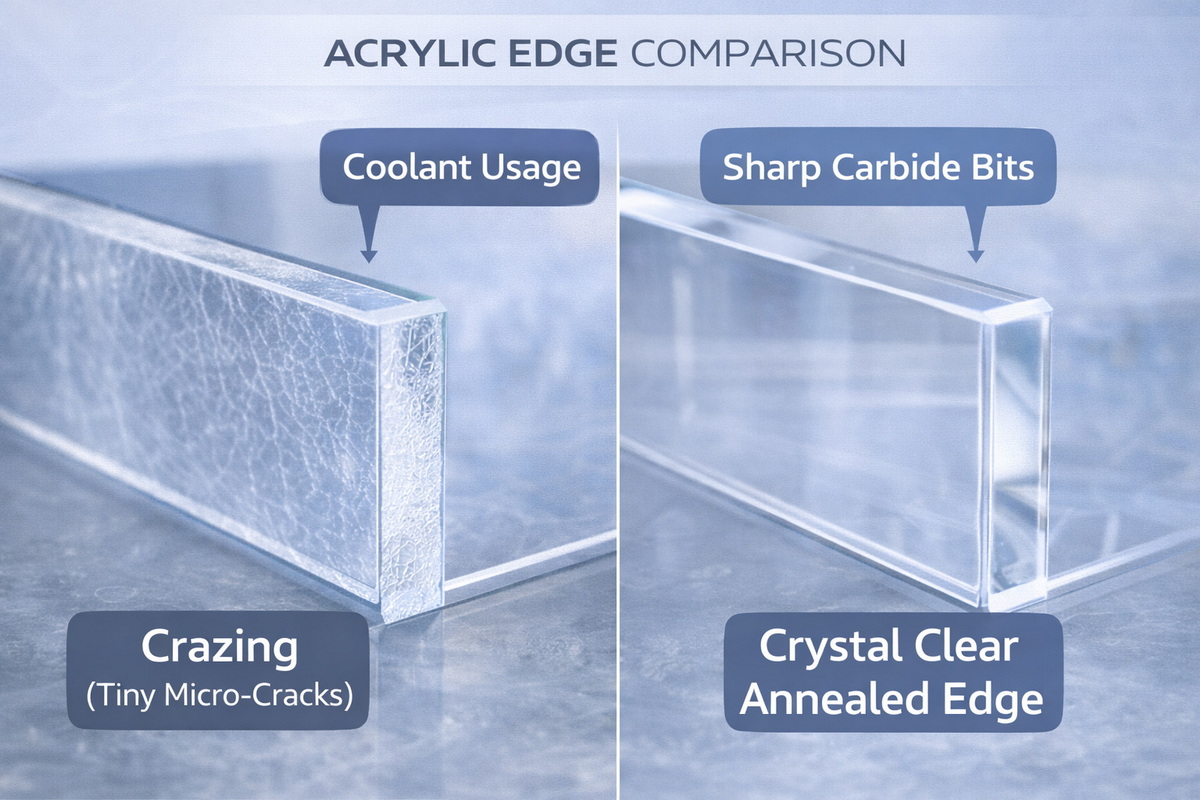

A common "information gap" in basic guides is Crazing. These are tiny internal cracks that appear after cutting, often when the material comes into contact with cleaning agents or adhesives.
Annealing: After mechanical cutting, heat the acrylic in a controlled oven to relieve internal stress.
Coolants: When drilling or sawing, use a water-based coolant or a constant air stream to keep the "kerf" (the cut width) cool.
Tool Sharpness: Dull tools generate 40% more heat. Always use factory-sharp carbide-tipped bits.

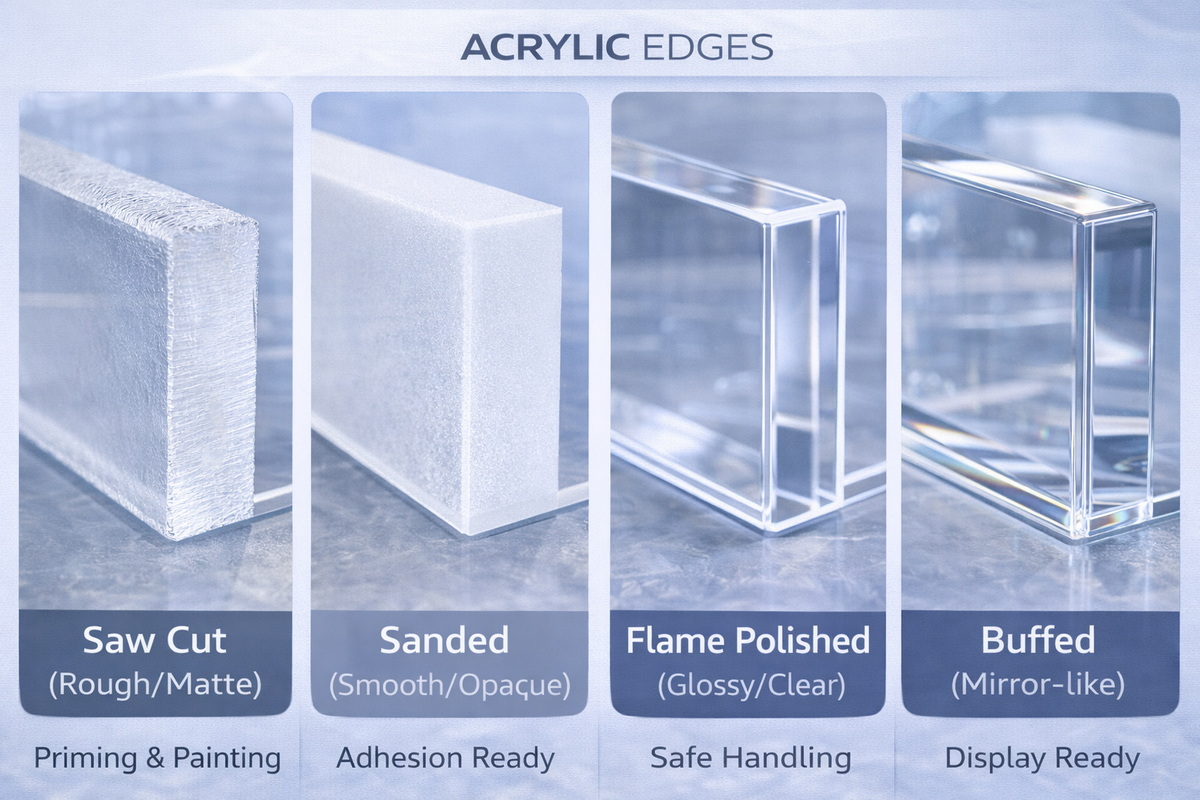

A cut is only half the job. To reach a "Gokai-Standard" finish, you must treat the edges.
| Method | Best For | Result |
| Sanding | Manual projects | Matte, smooth edge |
| Flame Polishing | Fast production | High gloss, crystal clear |
| Buffing Wheel | Professional signs | Mirror-like transparency |
| Scraping | Removing saw marks | Straight, square edges |
If you choose to sand, follow this grit progression: 120 → 220 → 400 → 600 (Wet) → 800 (Wet). Using water during the final stages prevents the dust from clogging the paper and scratching the surface.
Acrylic is a plastic, but it behaves like glass when it shatters.
Eye Protection: High-speed shards are sharp. Always wear ANSI-rated goggles.
Respiratory Health: Cutting acrylic releases micro-plastics and localized fumes. Ensure your workspace has active ventilation.
Work Holding: Never hold the sheet by hand while power-sawing. Use heavy-duty clamps.
As a forward-thinking supplier, Gokai recognizes the shift toward R-MMA (Recycled Methyl Methacrylate). Cutting recycled acrylic requires slightly lower temperatures and sharper blades, as the material can be more brittle than virgin PMMA.
Match the tool to the thickness.
Keep the protective film on until the very last second.
Manage heat to prevent melting and crazing.
Support the material to eliminate vibration.
Whether you are sourcing bulk clear acrylic or need custom-cut sheets for global distribution, Gokai provides the material expertise and manufacturing power to scale your business. Our sheets are optimized for easy fabrication and long-term UV stability.
Contact Our Technical Team for a Quote Today
Q1: Why did my acrylic sheet crack while I was sawing it?
A: This is usually caused by vibration. Ensure the sheet is clamped tightly against a flat surface or a sacrificial board. Also, check that you are using a high-tooth-count blade designed for plastics.
Q2: Can I use a standard wood-cutting blade?
A: It is not recommended. Wood blades have fewer teeth and a different "set," which will likely cause the acrylic to chip or shatter. Use a carbide-tipped blade with at least 60 teeth for a 10-inch saw.
Q3: How do I remove the smell of burnt plastic after cutting?
A: The smell comes from melted residue. Using an air compressor to blow air onto the cut line while sawing helps cool the material and reduces odors. For laser cutting, an exhaust system is mandatory.
Q4: Is it better to laser cut or CNC route acrylic?
A: If you want a finished, clear edge immediately, choose Laser. If you are worried about stress cracks (crazing) or are working with Extruded acrylic, CNC routing is safer.
Q5: Can I cut acrylic with a utility knife?
A: You can only score it. You cannot cut all the way through thick sheets with a utility knife. For sheets over 3mm, you will need a specialized scoring tool or a power saw.
