DIBOND® ACM panels are aluminum composite panels used for signage, printing, retail displays, and decorative applications. For buyers comparing DIBOND with other aluminum composite material options, the important question is not simply which sheet looks best. It is which panel construction, finish, and fabrication method will deliver reliable results.
At Gokai, we supply aluminum composite panels and related sheet materials with OEM support for global customers. Our recommendation is straightforward: start with the application, then define the specification.
This guide explains what DIBOND is, how it differs from generic ACM, and what to check before ordering panels for your next project.
DIBOND is a branded aluminum composite sheet from 3A Composites. ACM means aluminum composite material, while ACP means aluminum composite panel. Buyers often use ACM and ACP interchangeably.

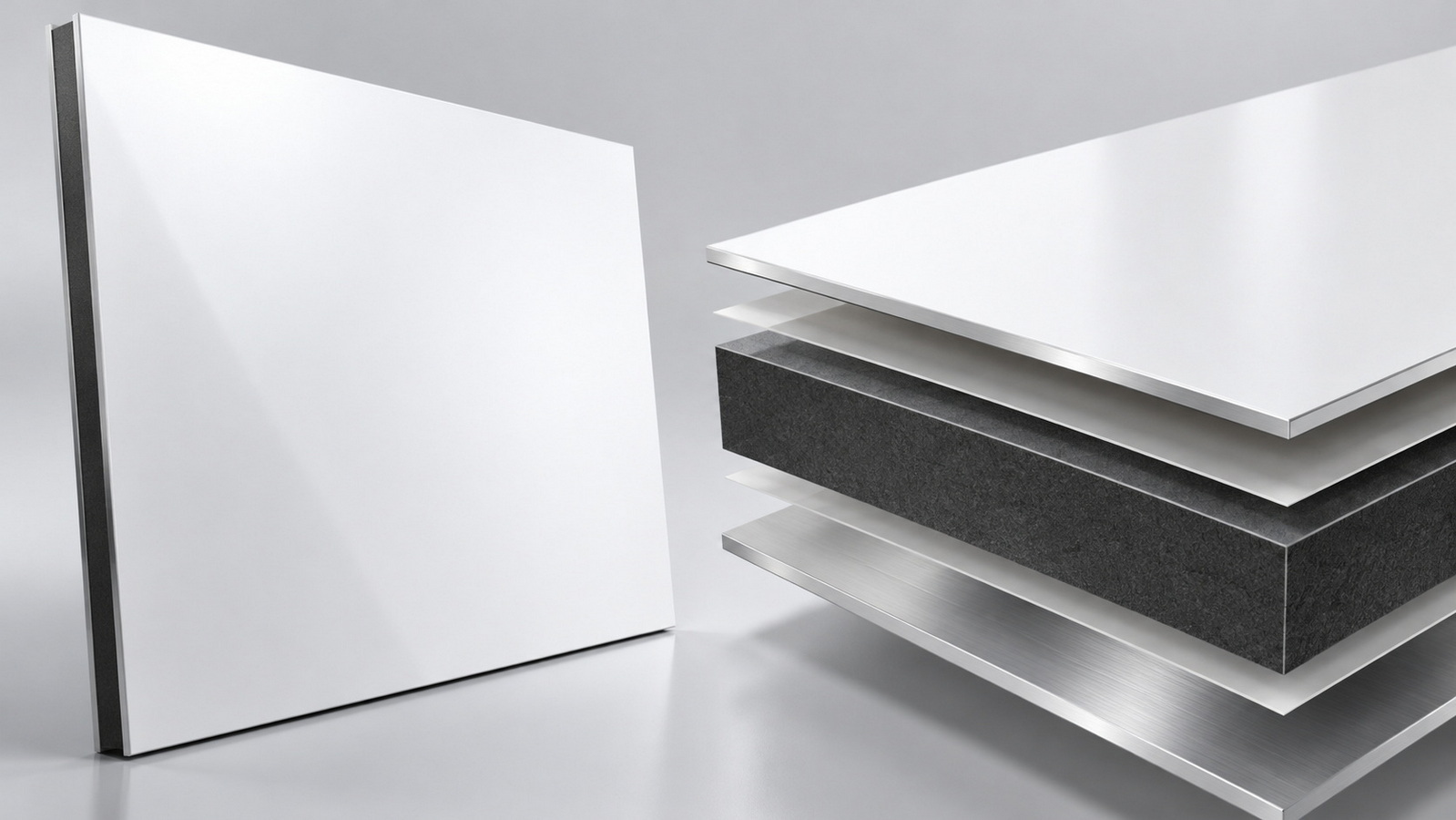

The basic construction combines two aluminum cover sheets bonded to a core. Standard DIBOND uses a polyethylene core; the broader product family also includes mineral-core options.
This sandwich structure separates the aluminum faces, creating useful bending stiffness without the weight of a solid metal sheet of the same overall thickness.
However, construction varies between products. Standard DIBOND has 0.3 mm aluminum cover layers, while certain specialized versions use different skin thicknesses. The product name alone is not a complete specification.
DIBOND is a brand, not a generic name for every aluminum composite panel. Other ACM products can differ in skin thickness, core composition, coating, dimensional tolerances, and processing suitability.
An OEM panel should therefore be evaluated against agreed requirements rather than described as automatically identical to DIBOND.
If a contract specifically requires DIBOND, obtain approval before proposing another brand. Gokai-branded or private-label panels should retain their correct product identity.
A smooth, stable substrate supports detailed graphics, lettering, and consistent visual presentation.

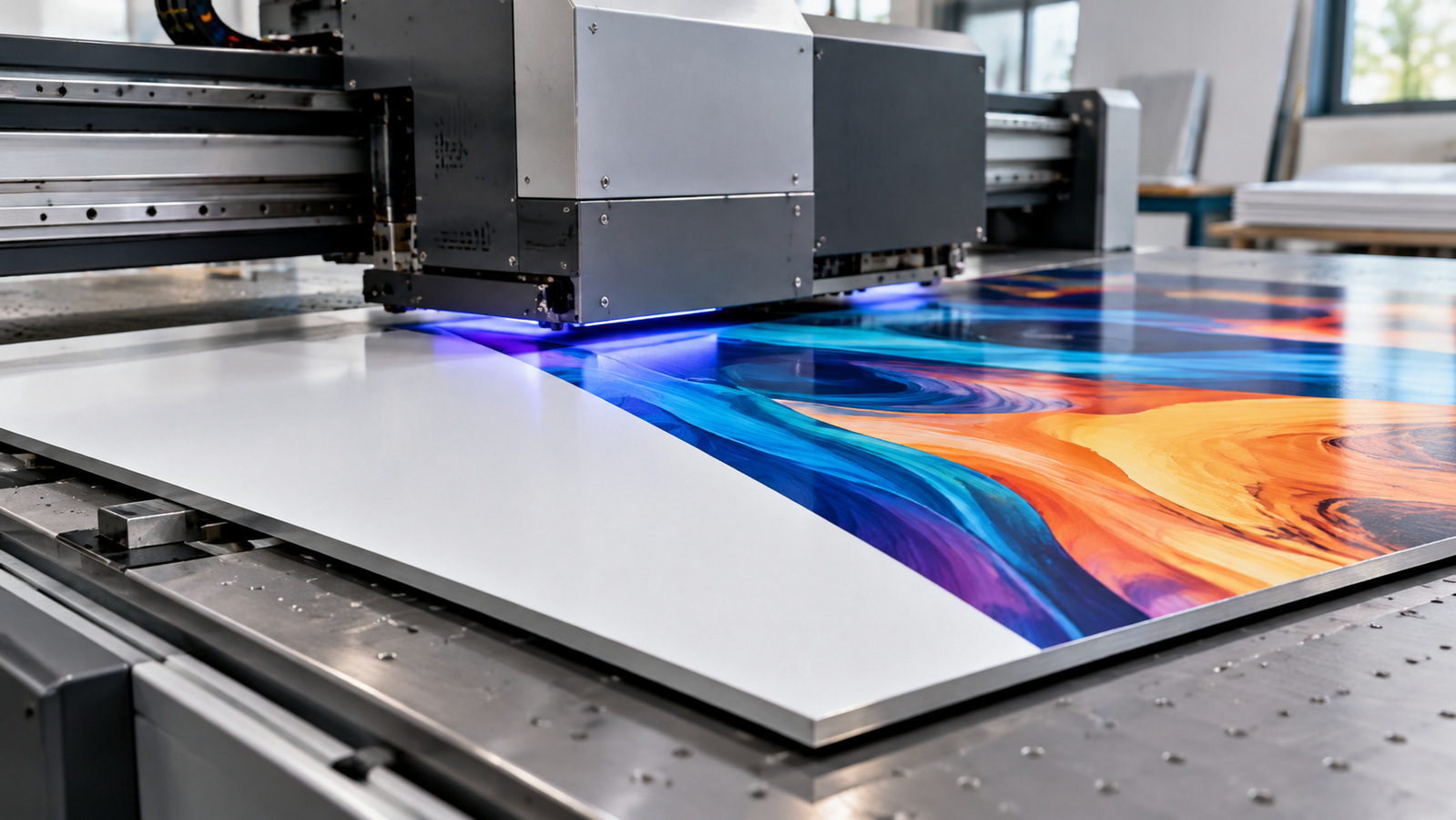

DIBOND is widely used for direct printing and applied graphics. However, ink adhesion depends on the exact coating, ink system, curing conditions, and surface preparation.
A panel that looks suitable is not necessarily ready for every printing process.
The manufacturer lists typical weights of 2.9 kg/m² for 2 mm standard DIBOND and 3.8 kg/m² for its 3 mm version.
These figures help estimate handling and shipping requirements. They are product-specific reference values, not universal weights for all ACM panels.
Depending on the grade, aluminum composite panels can be sawed, drilled, routed, folded, riveted, or bonded.
Available surfaces include painted, brushed, metallic, mirror, and decorative finishes. Processing restrictions vary, particularly for specialized surfaces.
My purchasing priority would be specification: a finish sample is valuable, but it cannot replace construction details and processing guidance.
Two panels labeled "3 mm ACM" may perform differently because overall thickness does not describe the complete structure.
Use the following comparison framework before requesting prices.
| Selection factor | What to confirm | Why it matters |
|---|---|---|
| Overall thickness | Nominal value and tolerance | Influences fit, rigidity, and fabrication |
| Aluminum skins | Thickness on both faces | Affects machining and panel behavior |
| Core | Composition and documented classification | Determines application suitability |
| Surface coating | Chemistry, gloss, and intended exposure | Affects printing and durability |
| Dimensions | Sheet size, squareness, and tolerances | Influences yield and assembly |
| Fabrication | Approved cutting and forming methods | Reduces processing failures |
| Documentation | Reports tied to the supplied grade | Supports verification and traceability |
Avoid comparing an economical thin-skin display panel with a heavier construction solely by price per sheet.
For repeat orders, retain an approved sample and written specification. Both should identify the exact surface, construction, and acceptance criteria.

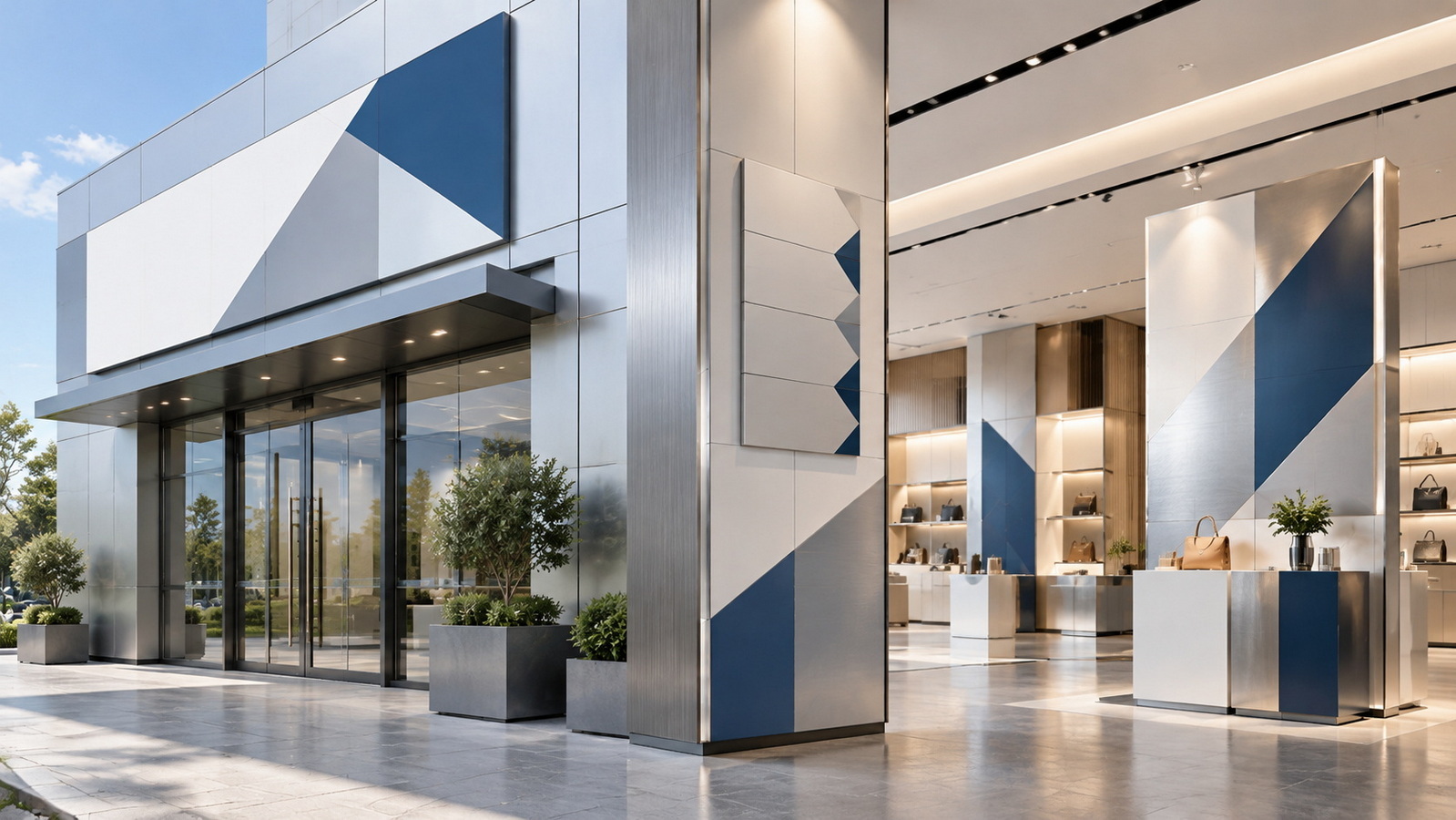

ACM is commonly selected for shop signs, directional panels, information boards, and branded displays.
Outdoor suitability depends on the complete installation: panel grade, graphics, fasteners, supporting frame, exposure, and maintenance.
Do not assume that a weather-resistant substrate automatically gives the printed image the same service life.
Composite panels provide clean surfaces for product displays, exhibition structures, counters, and decorative features.
For reusable displays, evaluate edge protection, transport packaging, and assembly details alongside appearance. Repeated handling can expose weaknesses that are not visible in a showroom sample.
Flat surfaces and varied finishes make ACM useful for photographic mounting, printed artwork, and interior branding.
Check lighting conditions before approving gloss. A highly reflective surface may look attractive in a sample but create unwanted glare in its final location.
An aluminum face does not make the complete composite panel noncombustible.
Polyethylene-core ACM can contribute fuel to a fire. UK government research identifies unmodified polyethylene-core ACM as a particularly serious external-cladding hazard.
This distinction matters whenever a project moves beyond ordinary display work into regulated building applications.
Before specifying panels for wall linings, façades, or other regulated uses, confirm:
- The exact core and product grade.
- Applicable local requirements.
- Relevant test and classification reports.
- Whether evidence concerns a panel or an assembled system.
- Installation details and any required professional approval.
"FR" is not a universal permission to use a panel anywhere. Likewise, a classification for one construction must not be transferred to another.
Do not assume food-contact suitability either. If direct food contact is intended, request documentation covering the exact product and intended conditions.
Use material matching the intended production specification.
The trial should include the actual finish, artwork, ink system, cutting process, and mounting method. Testing an unrelated sample can create false confidence.
Use the panel manufacturer's recommended tooling and operating parameters. Support the sheet adequately and inspect the first cuts for burrs, chipped coatings, and edge separation.
Provide suitable extraction and personal protection based on the process and workplace requirements.
For routed-and-folded parts, confirm that the grade supports the operation. Do not copy groove settings from a different panel construction without verification.
Remove protective film according to the supplier's instructions and prepare the surface using approved methods.
Then evaluate:
1. Ink adhesion and curing.
2. Color and fine-detail reproduction.
3. Surface scratching during handling.
4. Compatibility with laminates or applied vinyl.
5. Appearance after fabrication and assembly.
For demanding applications, agree on a documented test method and pass criteria before production.
Good dimensional stability does not mean zero thermal expansion.
Standard DIBOND technical data lists linear expansion of 2.4 mm per meter for a 100°C temperature change.
For an illustrative 2 m panel experiencing a 50°C change:
ΔL=2.4×2×50/100=2.4 mm
That movement should inform fixing and joint design. It is not, by itself, a universal installation-gap recommendation.
Final detailing must also consider tolerances, restraints, panel geometry, and the installation system.
For overseas buyers, the greatest avoidable risk is often an incomplete specification rather than an obviously defective sample.
A structured approval process makes quotations more comparable and repeat orders easier to control.
Provide the supplier with:
- Application and destination country.
- Indoor or outdoor exposure.
- Sheet dimensions and quantities.
- Overall thickness and aluminum skin requirements.
- Core requirements.
- Color, finish, and gloss reference.
- Printing, routing, folding, or bonding plans.
- Required documentation.
- Protective-film branding and packaging needs.
- Destination port and requested delivery terms.
Ask the supplier to identify any unavailable combination instead of silently substituting materials.
Approve a physical sample and final specification. Record color expectations, dimensional tolerances, surface-quality criteria, packaging, and inspection methods.
Where performance matters, evaluate fabricated samples rather than untouched sheets alone.
For example, a hypothetical sign producer could approve a white sample successfully but later encounter poor ink adhesion on production panels. Testing the actual coating and ink combination before release helps address that risk.
This is a planning example, not a reported Gokai customer case.

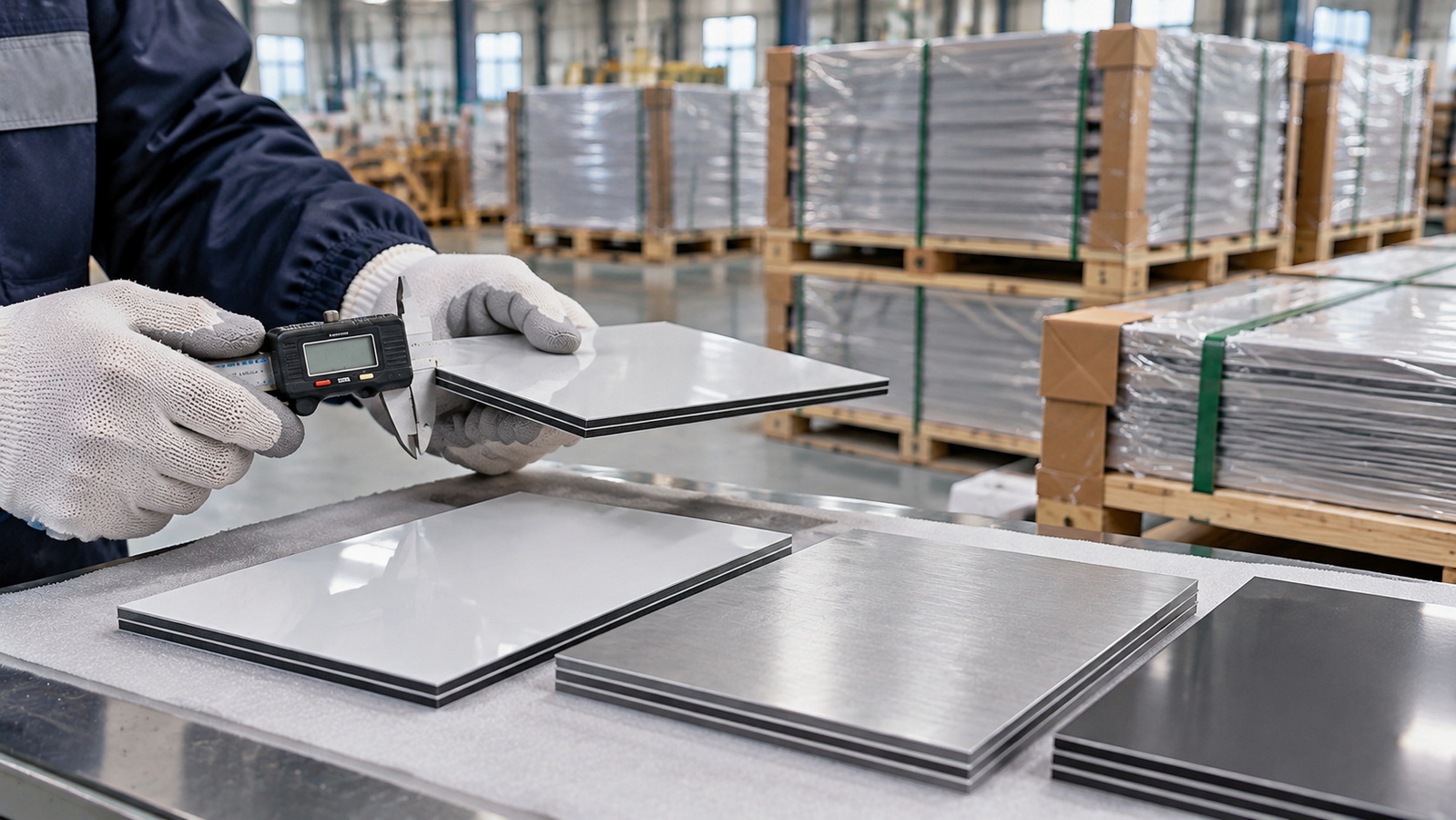

Check the production lot against the agreed requirements.
Inspection can cover dimensions, overall thickness, skin thickness using an agreed method, surface appearance, flatness, protective film, and packaging condition.
Keep batch identification and inspection records. Photographs are useful, but they do not replace measurements or relevant test documentation.
The lowest quotation is not necessarily the lowest delivered project cost.
A practical comparison includes:
- Material price and usable sheet area.
- Cutting waste.
- Printing preparation.
- Fabrication time and rejects.
- Protective packaging.
- Freight and local handling.
- Installation and potential replacement.
A larger sheet may improve nesting but complicate handling. A cheaper finish may require additional printing preparation.
Ask each supplier to quote against the same specification and trade terms. Otherwise, apparent savings may simply reflect different materials or excluded costs.
ACM combines aluminum and core material, so recycling requires an appropriate collection and processing route.
Manufacturer statements about recyclability do not guarantee local acceptance. Confirm whether nearby processors accept composite offcuts, printed panels, or adhesive-contaminated material before making disposal plans.
Gokai supplies aluminum composite panels and supports OEM requirements for global buyers, including branded protective-film options.
Send your application, dimensions, quantities, finish reference, fabrication plans, and documentation requirements to request a project-specific quotation.
Ask for a representative sample and written confirmation of the proposed construction before approving production. For brand-specified projects, identify any proposed alternative clearly and obtain the necessary approval.
DIBOND is a specific brand within the ACM category. Other aluminum composite panels may have different skins, cores, coatings, and tolerances. They should not automatically be treated as interchangeable.
Many DIBOND grades suit outdoor applications. Confirm the exact finish and grade, then evaluate the graphics, supporting structure, fixings, and exposure conditions.
It may be appropriate, but thickness alone cannot answer the question. Panel dimensions, skin thickness, support spacing, wind exposure, and mounting details also matter.
Suitable grades can accept direct printing. Test the actual coating, ink, curing process, and adhesion requirements before committing to a production run.
No blanket claim is appropriate. Core composition and product construction affect fire behavior. Verify documentation and applicable requirements for the exact application.
Gokai offers OEM aluminum composite panels. Buyers should compare the proposed specification with their requirements. Any substitution on a DIBOND-specified project needs appropriate approval and accurate branding.
1. [Piedmont Plastics — "What Is Dibond®?"]
Published July 28, 2022. Original article reviewed for its introductory explanation, application coverage, fabrication advice, and purchasing discussion. Broad performance claims were narrowed rather than repeated without qualification. [piedmontplastics]
2. [3A Composites — DIBOND® Product Overview]
Primary manufacturer source for brand identity, composite construction, principal applications, and specialized product variants. [display.3acomposites]
3. [3A Composites — DIBOND® Product Guide and Technical Data]
Primary source for standard panel weights, aluminum cover-layer thickness, thermal expansion, processing options, surface-specific limitations, printing guidance, and recycling information. Technical values are typical manufacturer data, not guarantees for other brands. The thermal-movement example is calculated from the published coefficient using explicitly stated hypothetical dimensions and temperature change. [display.3acomposites]
4. [UK Government — "Summary of Research on Non-ACM Cladding"]
Published April 2, 2020. Authoritative background on the external-cladding fire hazard associated with unmodified polyethylene-core ACM. Used for hazard context, not as a substitute for current project-specific regulatory advice. [gov]
5. [Shanghai Gokai Industry Co., Ltd. — Aluminum Composite Panels]
Company source for its aluminum composite panel offering, published specification options, sample availability, and OEM protective-film support. Project-specific availability and performance require written confirmation. No blanket fireproof, universal certification, or service-life claims have been carried into this article. [gokai.com]
