Views: 255 Author: Gokai Publish Time: 2026-10-11 Origin: Site
Content Menu
>> Where Paper Foam Board Works Best
● What Display-Market Consolidation Means for Buyers
● How to Specify OEM Paper Foam Board
>> Build a Complete Purchase Specification
>> Match Thickness to the Finished Display
● Printing and Mounting: Validate the Complete System
>> A Practical Sample-Test Workflow
>> Test Adhesives and Laminates Separately
● Compare Paper Foam Board with Other Display Substrates
● Quality Control for Repeat OEM Orders
>> Define Observable Acceptance Criteria
● Compare Cost per Usable Panel
>> Evaluate the Full Delivered Cost
>> Improve Packaging Before Increasing Volume
>> Reduce Waste Through Better Planning
● Start Your OEM Paper Foam Board Project with Gokai
>> 1. Is Paper Foam Board the Same as Ordinary Cardboard?
>> 2. Can Paper Foam Board Be Used Outdoors?
>> 3. Which Thickness Should I Choose?
>> 4. Can I Print Directly on Paper Foam Board?
>> 5. What Information Does Gokai Need for an OEM Quote?
>> 6. Is Paper Foam Board Recyclable?
Paper Foam Board gives printers, display fabricators, and distributors a lightweight substrate for indoor graphics. However, successful purchasing requires more than choosing a thickness and comparing sheet prices. Paper quality, surface compatibility, flatness, packaging, and repeat-order consistency all influence the finished result.
At Gokai, we supply Paper Foam Board and other sheet materials, with OEM services available for global customers. This guide explains how to evaluate paper-faced foam board, develop a practical purchase specification, and qualify a supplier before committing to production quantities.
Paper Foam Board is a sandwich-structured sheet consisting of a polystyrene foam core laminated with paper on both sides. The core keeps weight low, while the paper facings provide surfaces for printing, mounting, and graphic presentation.
Buyers may encounter names such as paper-faced foam board, foamcore board, and KT board. These terms help identify the general category, but they do not guarantee identical construction or performance.
Two sheets with the same nominal thickness can behave differently because of variations in:
- Paper weight and coating.
- Core construction and consistency.
- Bonding between the paper and foam.
- Surface finish and color.
- Storage conditions and handling.
From a procurement perspective, the product name is only the starting point. A usable specification must describe the actual sheet construction and intended production process.
Typical applications include indoor promotional signs, presentation boards, mounted photographs, retail graphics, exhibition panels, and temporary point-of-purchase displays.
Its low weight and straightforward cutting make it attractive for projects that need an economical, easy-to-handle substrate.
However, standard paper-faced foam board is not a default choice for wet locations, prolonged outdoor exposure, or demanding structural applications. These conditions require a different material or a specifically qualified construction.
In June 2023, Piedmont Plastics announced its acquisition of Diversified Display Products, a New Jersey distributor established in 1984. Its product range included rigid and foamboard substrates, wide-format media, and large-format printing supplies.
For board buyers, the announcement illustrates how substrates form part of a wider production ecosystem. Printers need materials, compatible consumables, dependable availability, and practical support—not simply access to individual sheets.
The acquisition itself does not prove a market growth rate or a change in foam board pricing. Its value here is contextual: distribution capability and product breadth matter alongside material specifications.
When assessing an OEM paper foam board supplier, consider how the proposed supply arrangement will support your own inventory, conversion workflow, and customer commitments.
A detailed inquiry allows suppliers to quote comparable products. Without one, a low quotation may refer to a different paper facing, sheet size, or packaging arrangement.

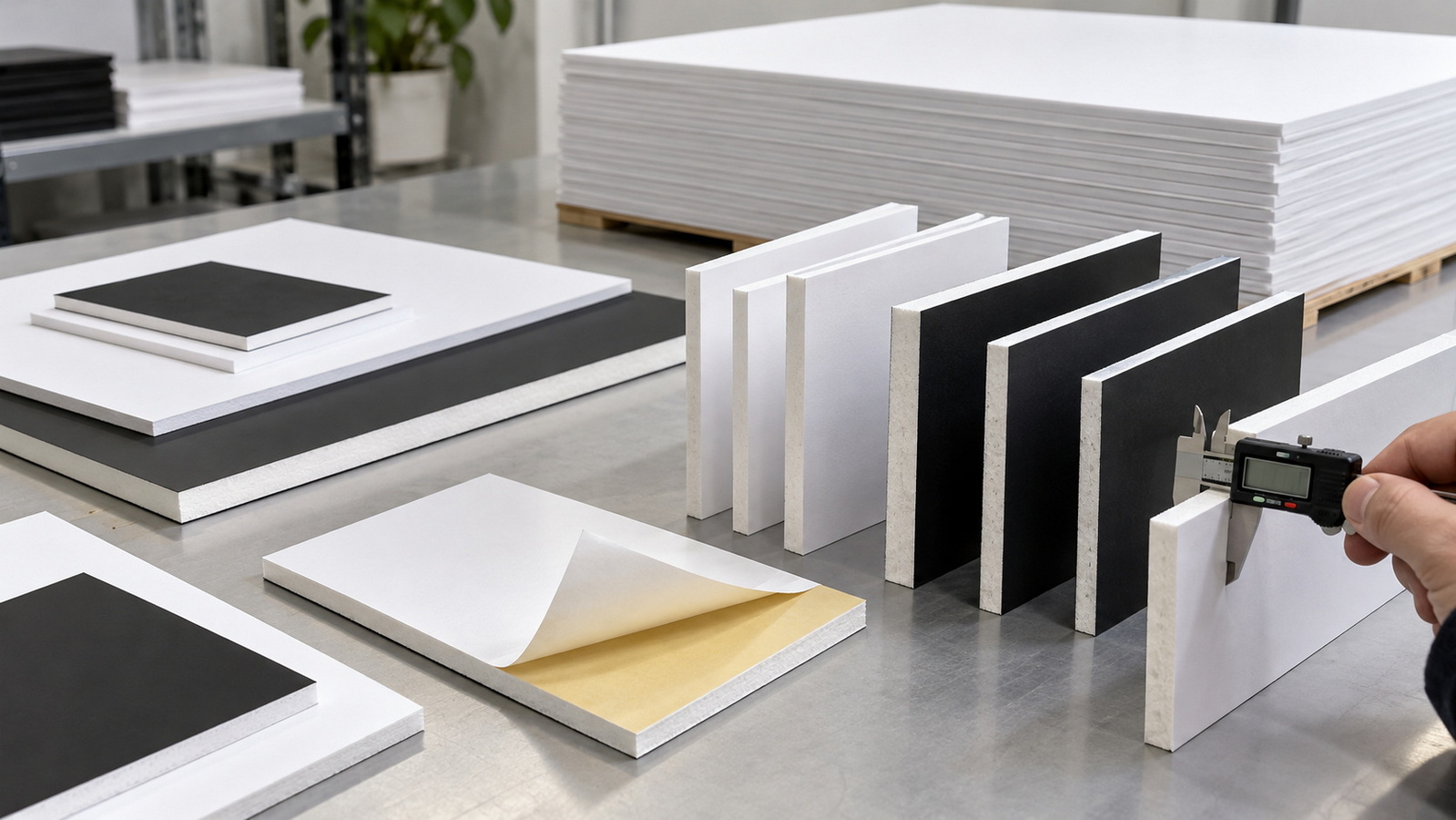

Gokai's published product information lists thicknesses of 3 mm, 5 mm, and 10 mm. It also describes multiple paper weights, colors, sheet sizes, and an optional one-side adhesive backing.
Treat these as available configurations to discuss, rather than assuming every combination is stocked or suitable for every application.
| Specification | What to communicate | Why it matters |
|---|---|---|
| Application | Indoor sign, mounted graphic, display panel, or presentation board | Establishes the operating requirements |
| Thickness | Nominal thickness and agreed tolerance | Supports cutting, framing, and assembly |
| Sheet dimensions | Width, length, and dimensional tolerance | Affects cutting yield and machine fit |
| Paper facing | Paper weight, coating, color, and finish | Influences printing and mounting |
| Surface configuration | Standard board or one-side adhesive backing | Determines workflow and handling |
| Printing method | Equipment, ink system, and printed sides | Guides compatibility testing |
| Quality criteria | Flatness, edge condition, and facing adhesion | Makes acceptance measurable |
| Packaging | Sheets per pack, protective layers, and pallet arrangement | Helps prevent delivery damage |
For repeat orders, retain an approved sample and a written specification. Both parties should reference the same revision.
Thickness should follow the display design, not habit.
A small mounted graphic and a large unsupported panel have different requirements. Span, framing, handling frequency, and installation method can matter as much as nominal thickness.
Request representative samples and evaluate them at the finished dimensions whenever practical. A small sample may look flat and rigid while revealing little about a much larger panel.
Avoid promising that one thickness will solve every display requirement.

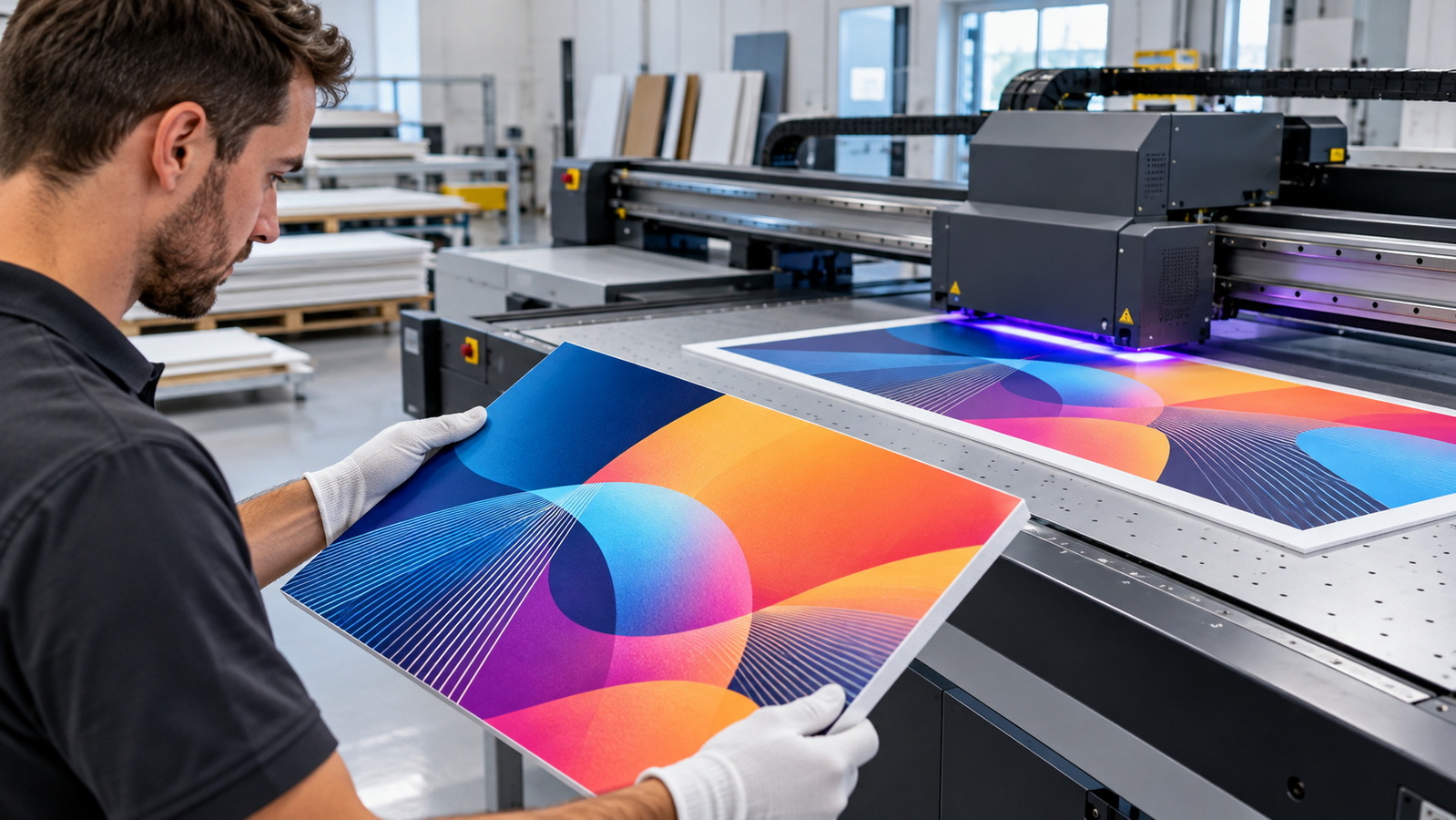

Gokai describes its Paper Foam Board as supporting printing applications, including digital and UV flatbed printing. Nevertheless, compatibility must be confirmed for the specific board, machine, ink, and settings.
Paper coatings differ, and a successful result on one product does not automatically transfer to another.
For production approval, validation should cover both appearance and handling performance.
1. Confirm the supplied sample matches the proposed production construction.
2. Print a test file containing solid colors, fine text, gradients, and large coverage areas.
3. Inspect ink adhesion, surface appearance, and any visible distortion.
4. Cut the board using the intended production method.
5. Mount or assemble it with the selected adhesive, film, or hardware.
6. Recheck the finished panel after handling and storage.
Document the equipment settings and material batch used during testing. Photographs help, but an approved physical sample provides a stronger comparison for future deliveries.
Printing approval does not establish adhesive compatibility.
For mounted graphics, assess whether the adhesive produces bubbles, uneven bonding, surface damage, or distortion. For adhesive-backed board, check release-liner handling, positioning, and bond performance on the intended graphic material.
Some foam board manufacturers warn against exposing polystyrene cores to solvent-based paints. Do not assume that an exposed core will tolerate an unfamiliar chemical product.
Obtain compatibility guidance and run a small trial before full production.
Material selection becomes easier when the operating environment is clear.
Paper Foam Board often suits short-term interior graphics. Other sheet materials may be more appropriate when moisture exposure, repeated handling, or fabrication demands change.
| Material | Typical reason to consider it | Main question before approval |
|---|---|---|
| Paper Foam Board | Lightweight indoor graphics and mounting | Will the facing and flatness meet the application? |
| PVC Foam Board | Applications requiring greater moisture resistance | Is the selected grade suitable for the exposure? |
| Aluminum Composite Panel | More demanding rigid display or signage projects | Does the panel specification match installation needs? |
| PP Hollow Sheet | Lightweight temporary signage or protective uses | Will its surface and structure suit the graphic? |
These are selection prompts, not interchangeable performance guarantees.
Compare the actual grades proposed by your supplier. Request relevant technical information and test the finished assembly rather than relying only on broad material categories.
An approved first order is useful only if later deliveries remain consistent.
For OEM purchasing, establish inspection criteria before production. This reduces disputes and makes it easier to separate manufacturing variation from transportation damage.
A practical incoming inspection can include:
- Sheet dimensions and thickness.
- Surface cleanliness and visible marks.
- Flatness under an agreed assessment method.
- Edge condition and corner damage.
- Paper-to-core bonding.
- Packaging integrity and labeling accuracy.
Agree on the sampling method, allowable variation, and reporting process with the supplier. Avoid vague instructions such as "premium quality" without defining what acceptance means.
Record the order reference, batch identification where available, inspection date, and any nonconformities.
When reporting a problem, provide photographs, affected quantities, packaging observations, and the production conditions under which it appeared.
This creates a clearer route to corrective action than a general complaint that the material "does not work."
For important repeat programs, require approval before changes to facing, construction, or packaging.
The lowest sheet price does not necessarily produce the lowest project cost.
Large, lightweight sheets occupy substantial shipping space and can be vulnerable to edge or corner damage. Cutting waste, damaged stock, and rework can erase an apparent purchasing advantage.
Compare offers using a consistent commercial basis, including the agreed trade term and destination.
Consider:
- Material price.
- Freight and destination charges.
- Applicable duties and taxes.
- Protective packaging.
- Cutting yield.
- Expected handling losses.
- Production rework and replacement costs.
A useful planning measure is total delivered and conversion cost divided by the number of acceptable finished panels.
This is a purchasing framework, not a guaranteed savings formula. Use your own shipment and production records to calculate it.

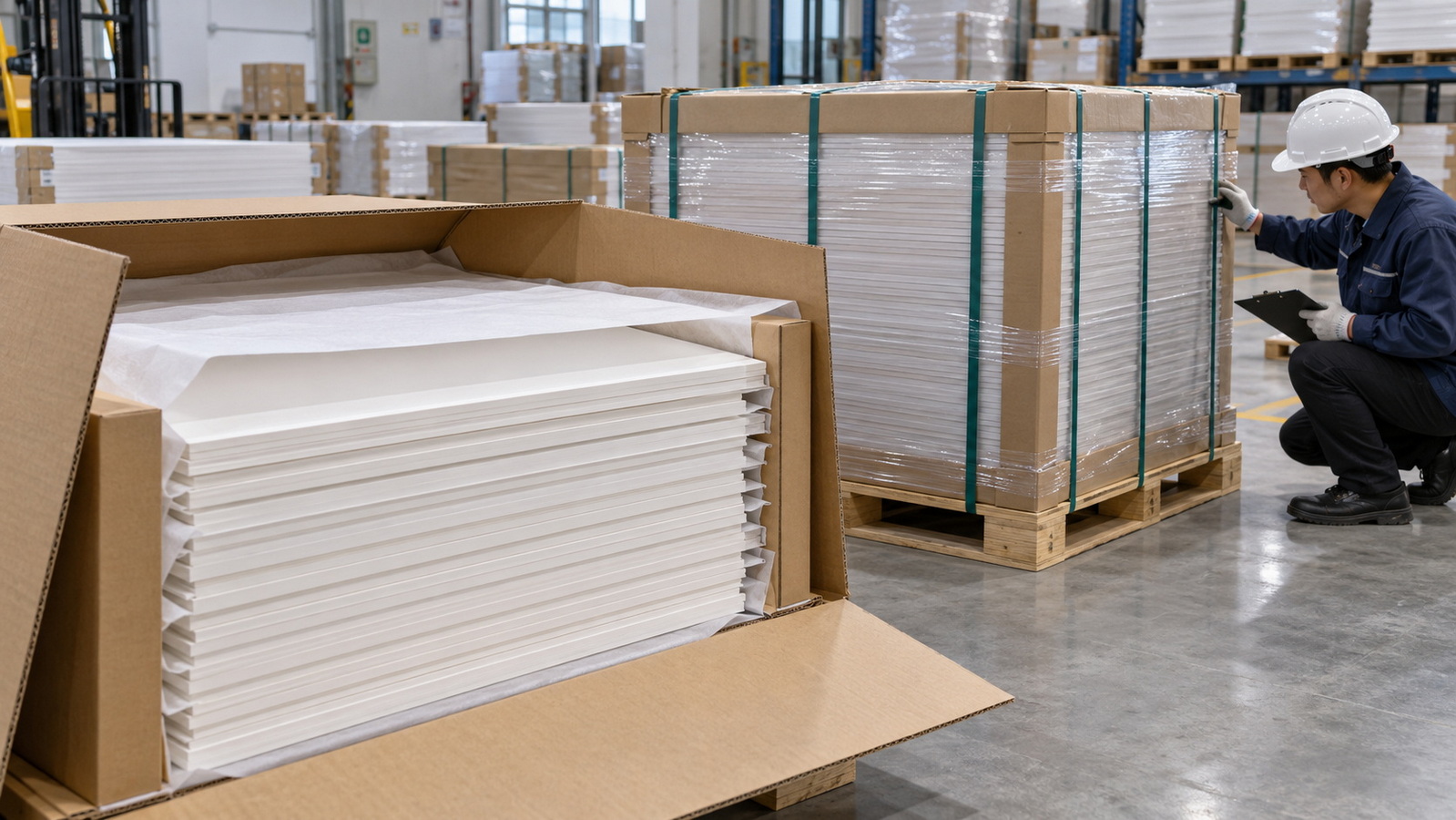

Ask for packaging photographs and details before the first bulk shipment.
Discuss corner protection, interleaving, outer protection, pallet stability, and receiving procedures. Protective measures should reflect the shipment route and handling conditions.
Inspect a trial delivery before scaling the program. A successful sample courier shipment does not necessarily demonstrate that full-size palletized sheets will arrive in equivalent condition.
Paper-facing does not make a foam board equivalent to ordinary paper.
Standard paper-faced foam board combines paper, a polymer foam core, and bonding materials. Printing, mounting films, and adhesives can add further components.
Whether a finished board is accepted for recycling depends on the local collection system and the recycler's requirements.
Do not describe every Paper Foam Board product as biodegradable, plastic-free, or universally recyclable.
Practical measures include improving cutting layouts, matching sheet dimensions to common panel sizes, protecting stock from damage, and reusing displays where the design allows it.
Before making disposal claims, ask the receiving recycler whether it accepts the complete printed and mounted product—not just clean paper or unlaminated foam.
For customers requiring specific environmental documentation, request evidence for the exact supplied configuration. General claims about a material category are not enough.
Gokai supplies Paper Foam Board for international buyers seeking material options and OEM support.
To begin a useful quotation discussion, send your destination, required quantity, thickness, sheet dimensions, facing requirements, and printing or mounting process.
Include the intended display environment and any packaging or labeling requirements. If the application is new, request representative samples before confirming a bulk order.
A well-defined inquiry helps both parties identify a suitable configuration, establish realistic acceptance criteria, and reduce avoidable production risk.
No. Paper Foam Board uses a foam core between paper facings. Ordinary cardboard has a different construction. The materials should not be assumed to have identical stiffness, printing behavior, or disposal requirements.
Standard paper-faced foam board is generally intended for indoor applications. For outdoor or humid conditions, discuss alternative substrates or a specifically qualified product. A protective film alone does not establish outdoor suitability.
Choose according to panel dimensions, support, handling, and installation. Gokai lists 3 mm, 5 mm, and 10 mm options, but the correct choice requires application testing rather than thickness alone.
Suitable products can support direct printing. Confirm compatibility with the exact facing, printer, ink, and settings. Approve a representative print test before placing a production order.
Provide quantity, destination, dimensions, thickness, color, paper-facing requirements, adhesive configuration, and intended use. Add packaging, labeling, and acceptance requirements so the quotation reflects the actual project.
Acceptance varies by product construction and local recycling arrangements. Ask the recycler about the complete composite, including ink, films, and adhesives. Do not place it in a paper-only stream without confirmation.
1. Piedmont Plastics, "Piedmont Plastics Acquires Diversified Display Products," June 26, 2023. Source for the acquisition date, distributor background, location, and product categories. The announcement is used as historical context, not as evidence of current market growth or pricing. [piedmontplastics]
2. Shanghai Gokai Industry Co., Ltd., "Paper Foam Board." Source for Gokai's published material construction, applications, thickness options, facing options, adhesive-backed configuration, and printing descriptions. Availability and compatibility should be confirmed for the specific order. [gokai.com]
3. 3A Composites USA, "FOME-COR Products." Manufacturer source for paper-faced polystyrene foam board construction, short-term indoor display applications, printing and fabrication uses, and the warning concerning solvent-based paints on the core. These product-specific properties are not presented as Gokai test results. [3acompositesusa]
4. Laird Plastics, "Foam PVC, Gatorfoam & Paper-Faced Display Boards." Source for general application distinctions, particularly indoor paper-faced foamboard use and the comparatively greater moisture resistance of foam PVC. [lairdplastics]
5. Hong Kong Environmental Protection Department, "GREEN@COMMUNITY — FAQ." Source for local recycling guidance requiring separation of non-paper materials from paper recycling. It does not establish universal acceptance or rejection of every foam board construction. [wastereduction.gov]
6. Editorial analysis: the purchasing specification, sample-validation workflow, batch-record recommendations, and delivered-cost framework are practical analytical additions developed for this article. They are not quoted customer reviews, independently measured savings, or claims of completed Gokai projects.
