Views: 266 Author: Gokai Publish Time: 2026-10-20 Origin: Site
Content Menu
● What Is Polycarbonate Siding?
>> Solid vs. Multiwall Polycarbonate for Exterior Walls
● Benefits of Polycarbonate Solid Sheet for Siding
>> Impact Resistance for Exposed Areas
>> Daylight, Visibility, and Design Flexibility
>> Fabrication Options for Custom Projects
● UV Protection, Solar Heat, and Insulation Are Different
>> UV Blocking Does Not Guarantee Outdoor Durability
>> Visible Light Transmission Does Not Measure Solar Heat Gain
>> Solid Sheet Is Not Equivalent to Insulated Multiwall Glazing
● How to Select Polycarbonate Solid Sheet for Exterior Cladding
>> Start With Loads and Support Spacing
>> Match Surface Finish to Maintenance
● Installation Insight: Calculate Thermal Movement Before Cutting
>> Practical Installation Checklist
>> Industrial Wall With a Viewing Requirement
>> Greenhouse Wall With Heating Costs
>> Outdoor Windbreak for a Public Walkway
● OEM Procurement: Turn Requirements Into a Verifiable Order
>> Information to Include in Your Inquiry
>> Sample Approval and Batch Inspection
>> Compare Total Installed Cost
● Specify Your Polycarbonate Siding With Gokai
>> Can polycarbonate solid sheet be used for exterior siding?
>> Is solid polycarbonate better than multiwall polycarbonate?
>> Will outdoor polycarbonate siding turn yellow?
>> What thickness should I choose?
>> Is polycarbonate siding fireproof?
>> How should polycarbonate panels be cleaned?
>> Does Gokai provide OEM polycarbonate sheets?
Polycarbonate solid sheet for siding offers a practical combination of impact resistance, transparency, lightweight handling, and fabrication flexibility. For architects, contractors, distributors, and OEM buyers, it can provide daylight and visibility where conventional opaque cladding cannot. However, successful exterior applications depend on selecting the correct sheet grade and designing the complete installation—not simply purchasing a transparent panel.
At Gokai, we supply polycarbonate solid sheet and related sheet materials for global customers, with OEM support for customized specifications. Our approach starts with the application: where the panel will be installed, what performance it needs, and how it will connect to the surrounding structure.
This guide explains the benefits, limitations, and purchasing decisions that matter when specifying polycarbonate siding for commercial and industrial projects.
Polycarbonate siding describes polycarbonate panels used as vertical enclosure materials, translucent wall sections, or protective screens. It is an application category rather than a single product construction.

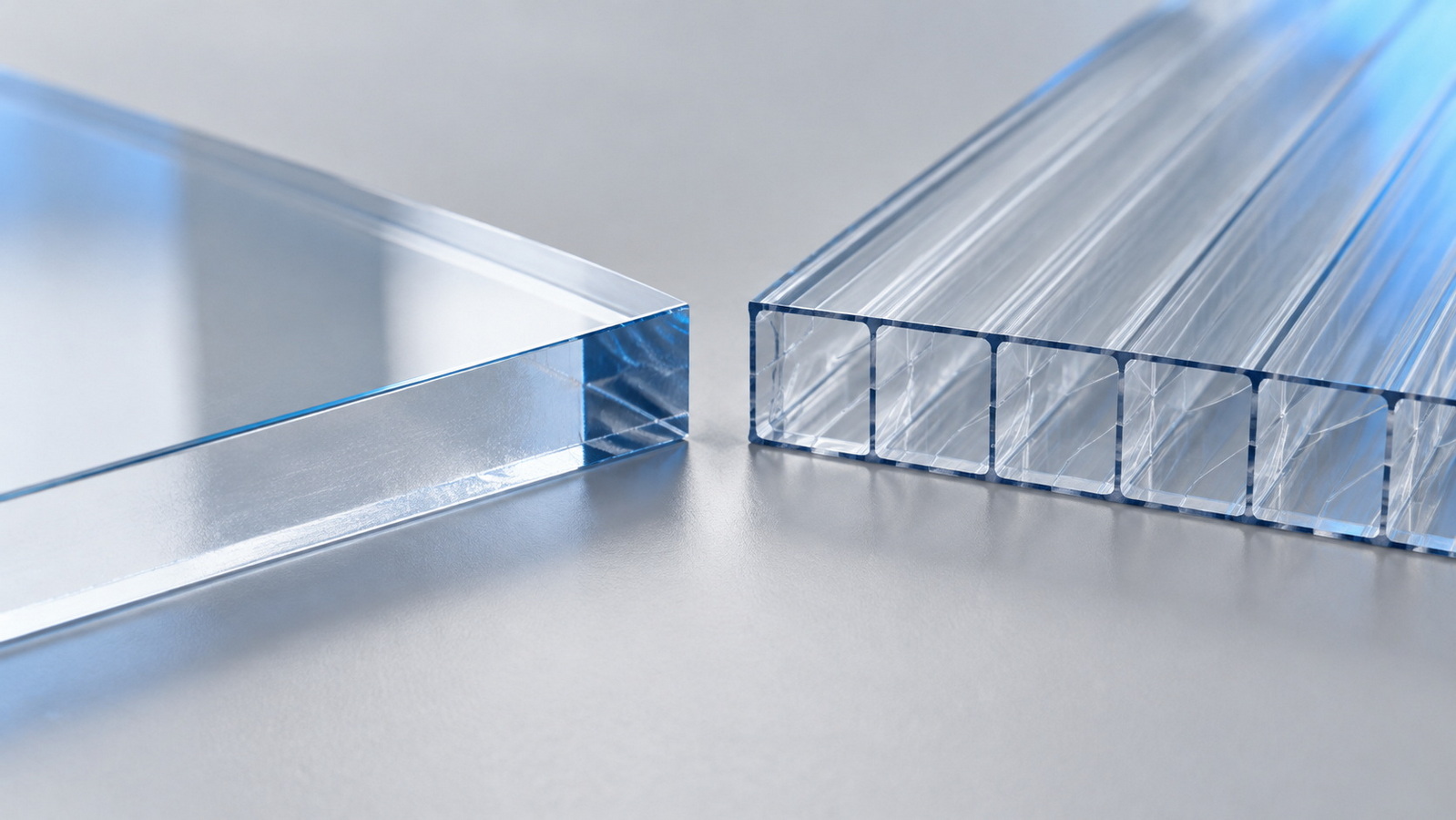

Buyers should distinguish between two sheet types:
- Solid polycarbonate sheet: a dense panel without internal cavities.
- Hollow polycarbonate sheet: a twinwall or multiwall panel containing ribs and air chambers.
Both can serve wall-related applications, but they solve different problems. Solid sheet suits projects that prioritize visibility, fabrication flexibility, and impact-resistant glazing. Multiwall sheet is often considered where low weight and thermal insulation are more important.
Neither product should automatically be treated as a load-bearing wall or a complete weatherproof façade system. Framing, connections, drainage, and local building requirements remain essential.
| Selection factor | Solid polycarbonate sheet | Multiwall polycarbonate sheet |
|---|---|---|
| Construction | Continuous, dense panel | Layered panel with internal chambers |
| Visual effect | Clear views or textured finishes | Translucent appearance with visible ribs |
| Weight at equal overall thickness | Generally heavier | Generally lighter |
| Thermal insulation | Single-sheet performance | Air chambers contribute to insulation |
| Fabrication | Suitable for cutting, drilling, and forming | Processing must preserve channel functionality |
| Typical priority | Visibility and protective glazing | Lightweight daylighting and insulation |
The right choice depends on the finished assembly. Comparing sheets by thickness alone overlooks important differences in construction and performance.
Polycarbonate is valued for its high impact resistance. It is a useful candidate for exterior screens, pedestrian areas, sports facilities, and industrial enclosures where accidental impact is a concern.
However, "impact resistant" does not mean indestructible. Sheet thickness, temperature, fixing details, and the type of impact affect performance.
My recommendation is to evaluate the complete panel assembly rather than rely on a generic strength comparison. Ask what test was performed, which thickness was tested, and whether the result applies to your proposed installation.
Ordinary polycarbonate sheet should not be described as bulletproof, hurricane-rated, or certified security glazing without application-specific evidence.
Solid polycarbonate weighs approximately half as much as conventional glass at equal thickness. This can simplify handling and reduce the dead load of suitable glazing assemblies.
For reference, published solid-sheet data show approximately:
- 4.8 kg per square meter for 4 mm polycarbonate.
- 7.2 kg per square meter for 6 mm polycarbonate.
These are illustrative material values, not Gokai shipment specifications.
Lower weight does not remove the need for lifting plans. Large panels can be difficult to control in wind, and support design must still account for pressure, suction, and movement.
Clear solid polycarbonate can provide high visible light transmission. Some published 3 mm clear-sheet grades transmit around 90% of incident visible light.
Actual performance varies with thickness, tint, texture, coating, and product grade.
For industrial buildings, transparent wall sections can introduce daylight while maintaining visibility. Opal or textured panels can offer greater visual privacy and light diffusion.
The important question is not simply, "Which panel lets in the most light?" It is, "Which panel creates the right indoor conditions?"
Solid polycarbonate can be cut, drilled, routed, and formed using suitable procedures. Selected grades can also be cold-curved within manufacturer-defined limits.
This flexibility supports projects involving:
- Custom-sized wall panels.
- Protective window infills.
- Curved architectural features.
- Equipment enclosures.
- Branded or colored exterior screens.
Processing limitations depend on the selected product. Abrasion-resistant coatings, for example, may change allowable forming methods.
These three concepts are frequently confused, leading to avoidable purchasing mistakes.
A panel's ability to block ultraviolet radiation is not the same as its ability to resist weathering.
For exterior siding, specify a UV-protected grade intended for outdoor use. Co-extruded UV layers help protect the sheet against sunlight-related degradation.
Confirm whether protection is present on one side or both sides. For single-sided products, the protected surface must face the intended exposure.
Also request written warranty conditions. Coverage may depend on installation, cleaning, geography, and permitted changes in light transmission or yellowness.
A dark panel is not automatically the best solution for controlling heat.
Visible light transmission describes how much visible light passes through the sheet. Solar heat gain describes how solar energy contributes to heat inside the enclosure.
Published product tables demonstrate that panels with similar light transmission can have different solar heat-gain characteristics.
When comparing exterior polycarbonate panels, request both values where available. This helps balance daylight, glare, privacy, and cooling requirements.
Solid polycarbonate offers different thermal performance from glass, but it should not be presented as equivalent to an insulated multiwall system.
If winter heat retention is a primary objective, compare documented U-values for the proposed constructions. A lower U-value indicates lower thermal transmittance under the stated conditions.
Frame design, seals, and air leakage also influence the finished enclosure. Avoid promising energy savings from sheet properties alone.
There is no universally correct thickness for polycarbonate siding.
Selection depends on:
- Panel width and height.
- Wind pressure and suction.
- Support spacing.
- Edge engagement.
- Allowable deflection.
- Impact exposure.
- Fixing arrangement.
A thicker sheet may reduce deflection, but it cannot compensate for inadequate edge retention or unsuitable connections.
For building façades, have the assembly reviewed by a qualified designer. Use load-span information that matches the selected sheet and fixing system.
Uncoated polycarbonate can scratch during cleaning, handling, or repeated contact.
Where appearance is critical, investigate whether an abrasion-resistant grade is appropriate and available. Check its outdoor suitability and fabrication restrictions before specifying it.
Textured finishes can change visual appearance and light diffusion, but texture should not be confused with a scratch-resistant coating.
Approve a physical sample whenever color, haze, or surface appearance matters. Photographs are not reliable substitutes.
Polycarbonate must not be described as noncombustible merely because a particular grade achieves a favorable fire classification.
Fire results depend on the product, thickness, test method, and sometimes installation conditions.
Request current documentation identifying:
1. The tested product.
2. The covered thickness range.
3. The applicable standard.
4. The classification achieved.
5. Any installation limitations.
A material test result does not automatically establish compliance for an entire façade assembly.
Thermal expansion is one of the most important installation considerations for solid polycarbonate siding.
A representative published coefficient is 0.065 mm per meter per degree Celsius. Using that value, a 2-meter panel experiencing a 50°C temperature change would change length by approximately 6.5 mm.
This illustrates why a tightly fitted panel can develop problems as temperatures change.
The calculation is:
Length change=expansion coefficient×panel length×temperature change
Use the selected supplier's coefficient and expected sheet temperatures for project calculations. Sheet surface temperature can differ from ambient air temperature.
1. Confirm which surface faces the weather.
2. Allow movement within the framing system.
3. Follow specified hole-clearance requirements.
4. Use compatible gaskets, sealants, and accessories.
5. Avoid excessive fastener pressure.
6. Maintain adequate edge engagement.
7. Provide drainage appropriate to the assembly.
8. Remove protective film according to supplier instructions.
Expansion clearance must be coordinated with fixing positions and installation temperature. Simply adding an arbitrary gap around every panel is not a complete design method.
The following examples illustrate selection logic rather than documented Gokai customer projects.
A workshop needs a transparent wall section so supervisors can observe activity from outside.
Solid polycarbonate is worth evaluating because visibility and impact resistance are priorities. The specification should address deflection, cleaning chemicals, scratch exposure, and replacement access.
If indoor climate control is important, compare the proposed assembly against insulated glazing alternatives.
A greenhouse operator wants daylight but also needs to limit heat loss.
Multiwall polycarbonate may better match that objective because its internal air chambers contribute to insulation. Clear solid sheet may still suit selected viewing sections.
The decision should balance daylight, heat retention, ventilation, and the needs of the plants—not transparency alone.
A walkway requires visibility and protection from wind.
UV-protected solid polycarbonate may be suitable, subject to load and connection design. Public access also makes impact exposure, edge treatment, and maintenance especially important.
An approved mock-up can reveal glare, sightline, and fixing issues before the full order is produced.
For international buyers, the strongest purchasing document is a specification that can be checked during production and inspection.
Send Gokai:
- Application and destination market.
- Solid or hollow sheet preference.
- Thickness and permitted tolerance.
- Dimensions and quantity.
- Color and surface finish.
- Outdoor exposure conditions.
- UV-protection requirements.
- Required technical documentation.
- Fabrication drawings.
- Packaging and delivery requirements.
Confirm available options, minimum order quantities, and lead times before committing to a project schedule.

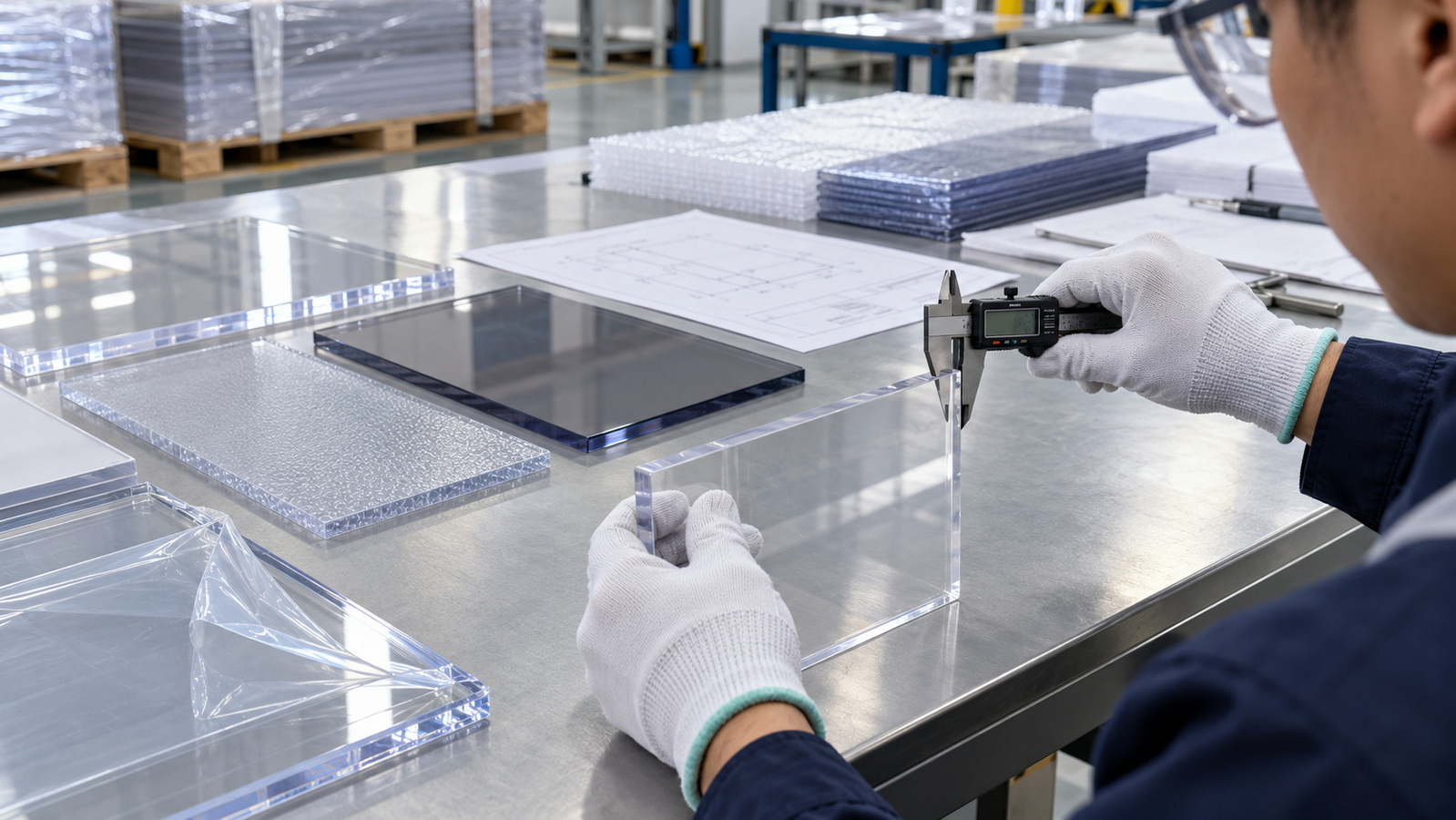

Approve a representative sample, then define how the shipment will be checked.
Useful inspection points include thickness, dimensions, flatness, visual defects, color consistency, surface finish, protective-film condition, and packaging.
Samples demonstrate appearance and processing behavior, but they do not replace standardized testing.
For repeat orders, retain an approved reference sample and record the agreed product description. This provides a clearer basis for resolving differences between batches.
Evaluate more than the sheet price.
Consider transport, cutting yield, framing, accessories, installation labor, maintenance, and replacement access. Custom dimensions may reduce offcuts, but packaging and freight constraints can offset part of that benefit.
Recyclability should also be assessed practically. Collection and reprocessing depend on local facilities and whether coatings or contamination affect acceptance.
Gokai supports global buyers sourcing polycarbonate solid and hollow sheets, including customized dimensions, thicknesses, colors, and outdoor UV-protected options.
The most useful starting point is a project brief rather than a general request for the cheapest panel.
Send Gokai your drawings, destination market, application, required dimensions, quantity, and documentation needs. Ask for a proposed specification, representative samples, and an OEM quotation before confirming production.
A well-defined order connects material selection with installation performance and provides a more reliable foundation for repeat supply.
Yes, when the selected grade is suitable for outdoor exposure and the complete assembly meets project requirements. UV protection, loads, framing, drainage, and fire documentation must all be considered.
Neither is universally better. Solid sheet generally suits visibility and protective glazing. Multiwall sheet often suits lightweight daylighting and insulation. Compare the finished assemblies against your priorities.
Unprotected grades can degrade under prolonged sunlight. Outdoor UV-protected grades are designed to reduce that risk. Performance depends on the product, exposure, installation, and warranty conditions.
Choose thickness using panel dimensions, loads, support spacing, fixing details, and allowable deflection. A standard thickness recommendation without those inputs is insufficient for façade design.
No. Particular grades may achieve specified fire classifications, but polycarbonate is not inherently noncombustible. Obtain current documentation covering the exact product and thickness.
Use mild detergent, water, and a soft cloth according to supplier guidance. Avoid abrasive tools and unapproved solvents. Confirm cleaner compatibility, particularly for coated panels.
Yes. Gokai offers OEM and bulk purchasing support with customized specifications. Confirm the requested dimensions, thickness, color, UV protection, documentation, and packaging before placing an order.
1. Acme Plastics — “The Benefits of Polycarbonate Siding.”
The original article used as the starting point for this rewrite primarily discusses twinwall and multiwall polycarbonate sheets. The rewritten article retains relevant themes, including impact resistance, daylighting, and lightweight handling, while distinguishing solid sheets from hollow sheets and avoiding absolute claims about yellowing or fire performance. [acmeplastics]
2. Palram Industries — “PALSUN® Flat Solid Polycarbonate Sheet,” Australian Technical Brochure.
Technical reference for typical light transmission, density, sheet weight, and a thermal expansion coefficient of approximately 0.065 mm per meter per degree Celsius. It also supports the distinctions between UV protection and weathering resistance, visible light transmission and solar heat gain, and product-specific fire classifications. These published values are reference data for the identified products, not **guaranteed** specifications or certifications for Gokai sheets. [palram]
3. Brett Martin — “Marlon FS: Rooflights, Glazing & Fabrication.”
Reference for the lightweight construction, impact resistance, fabrication options, and applications of solid polycarbonate sheet. It also informs the article’s guidance on allowing for thermal movement and requesting current fire-performance documentation for the selected product. [brettmartin]
4. Brett Martin — “Flat Polycarbonate Sheet,” Product Brochure.
Supporting reference for typical solid-sheet density, thermal expansion, and the distinction between standard solid polycarbonate and outdoor grades with UV protection. Light-transmission values from different grades, thicknesses, or product tables should not be treated as a universal performance guarantee. [brettmartin]
5. Shanghai Gokai Industry Co., Ltd. — “Polycarbonate Sheet.”
Company-published reference for Gokai’s solid and hollow polycarbonate sheet supply, OEM and bulk purchasing support, dimensional and color customization, and available UV-protection options. Specific capabilities, technical specifications, documentation, minimum order quantities, and delivery schedules remain subject to written order confirmation. [gokai.com]
The selection workflow, inquiry checklist, inspection recommendations, and three project scenarios are editorial guidance developed from the referenced material properties and supplier information. The scenarios are illustrative, not customer testimonials or documented Gokai projects.
