GK-PCSH
GoKai
| Quantity: | |
|---|---|
Short Description

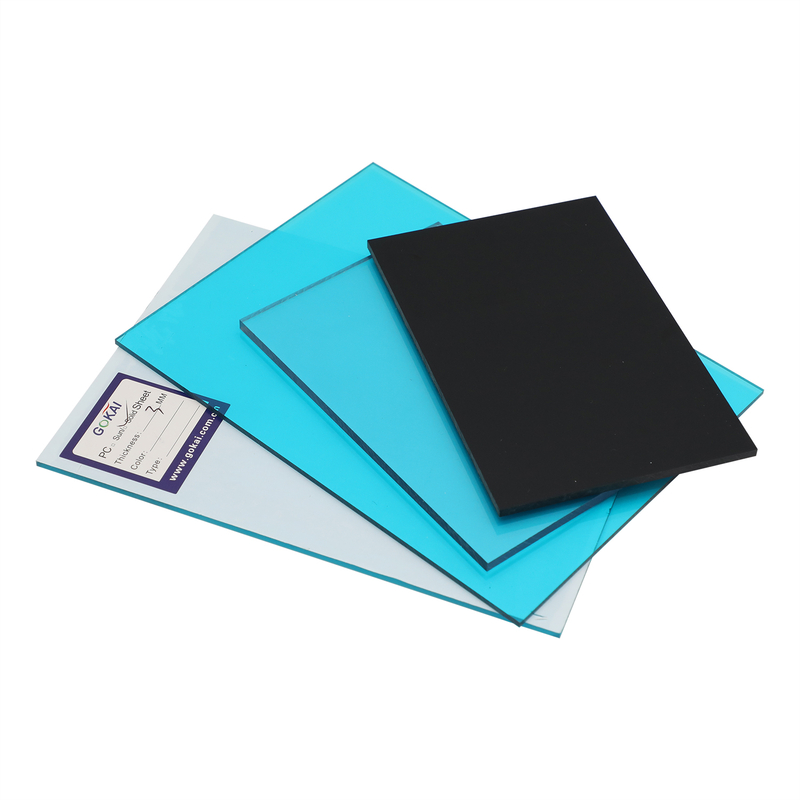

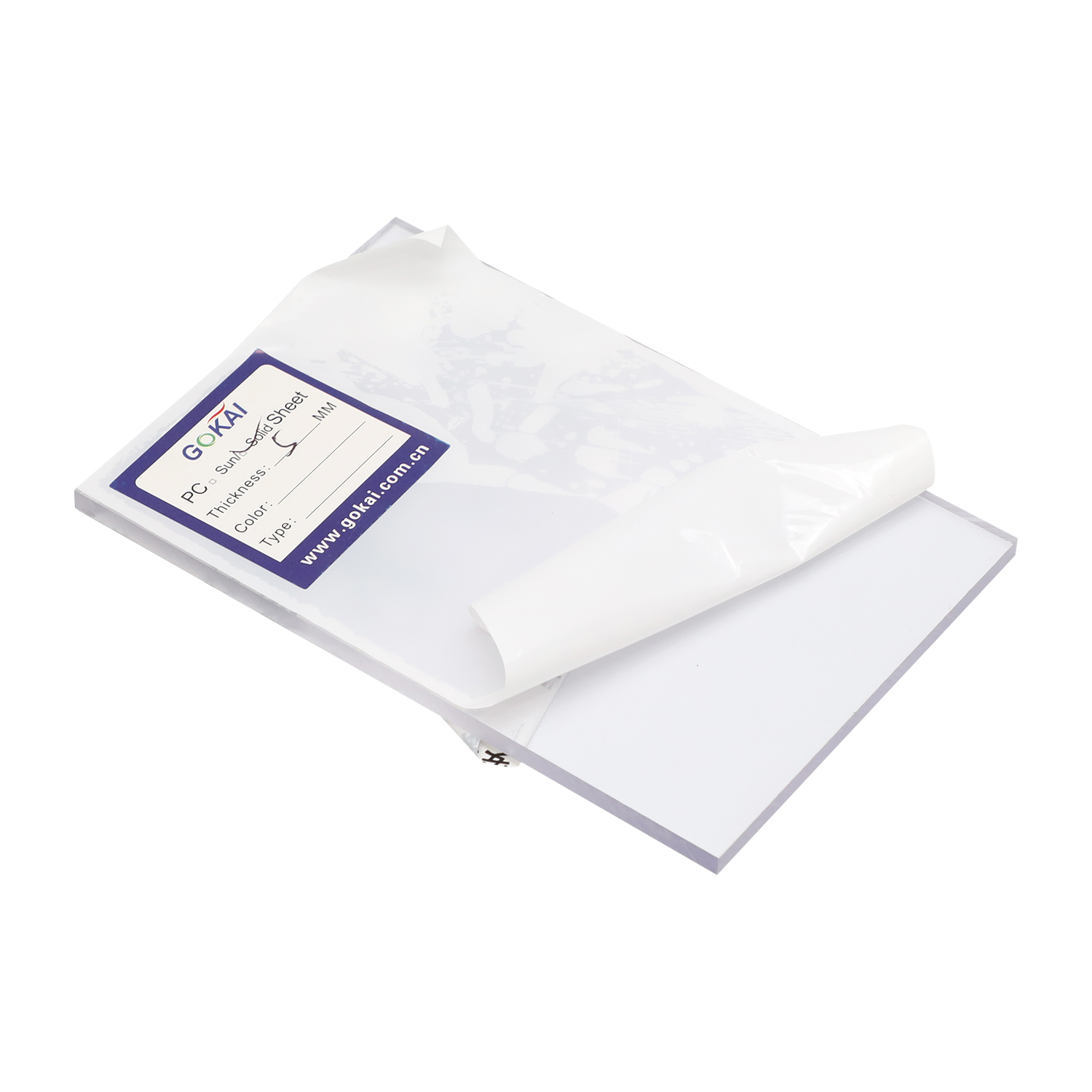

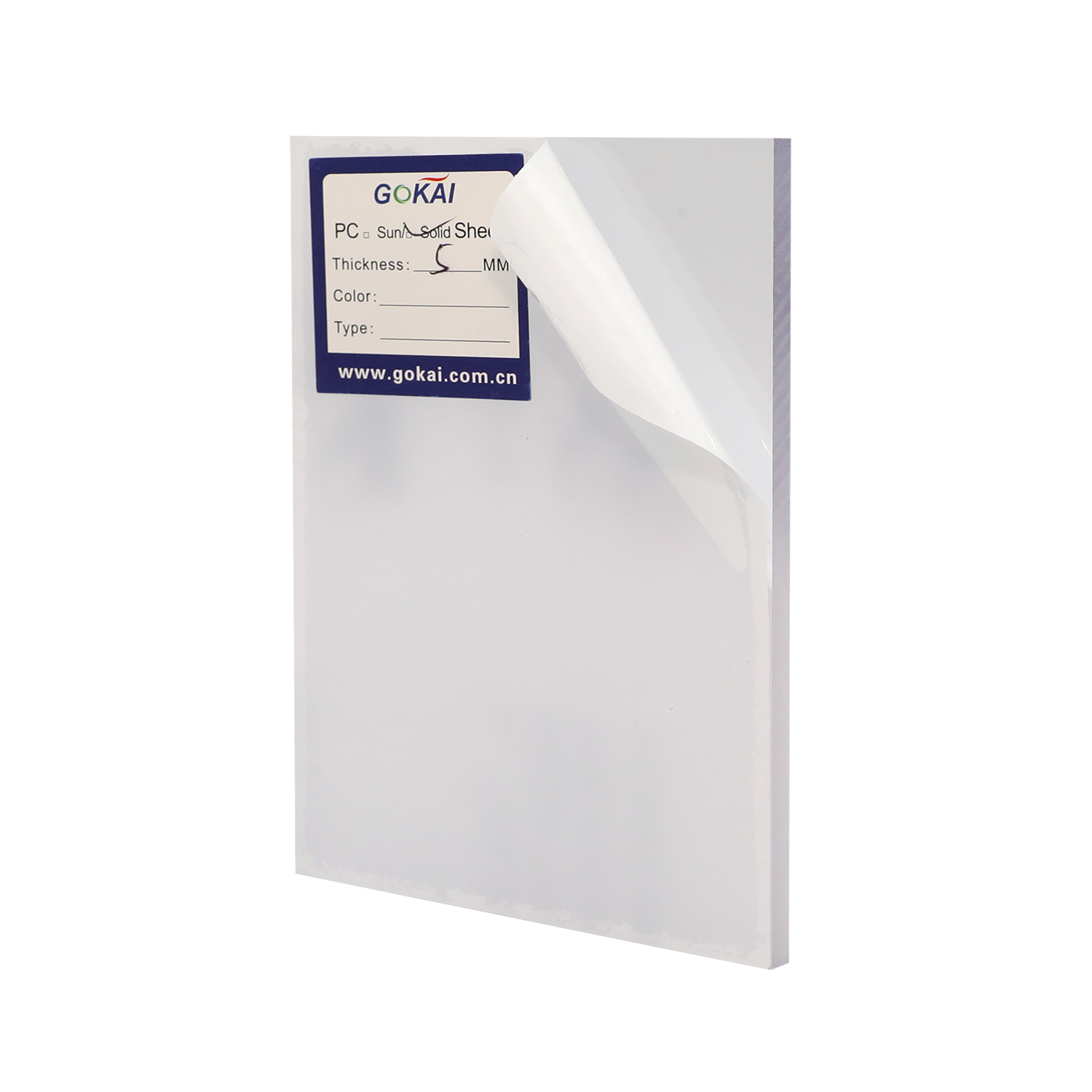

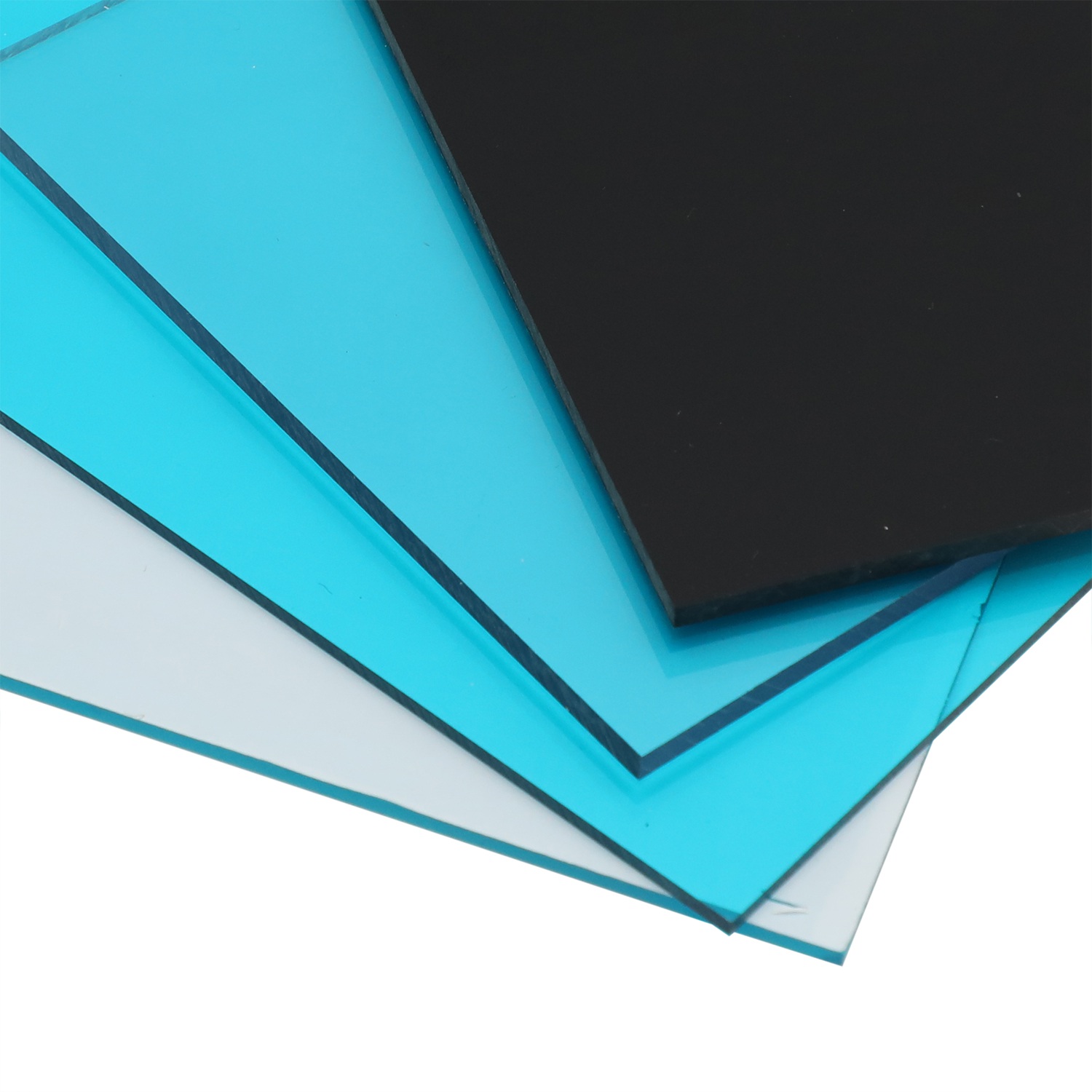

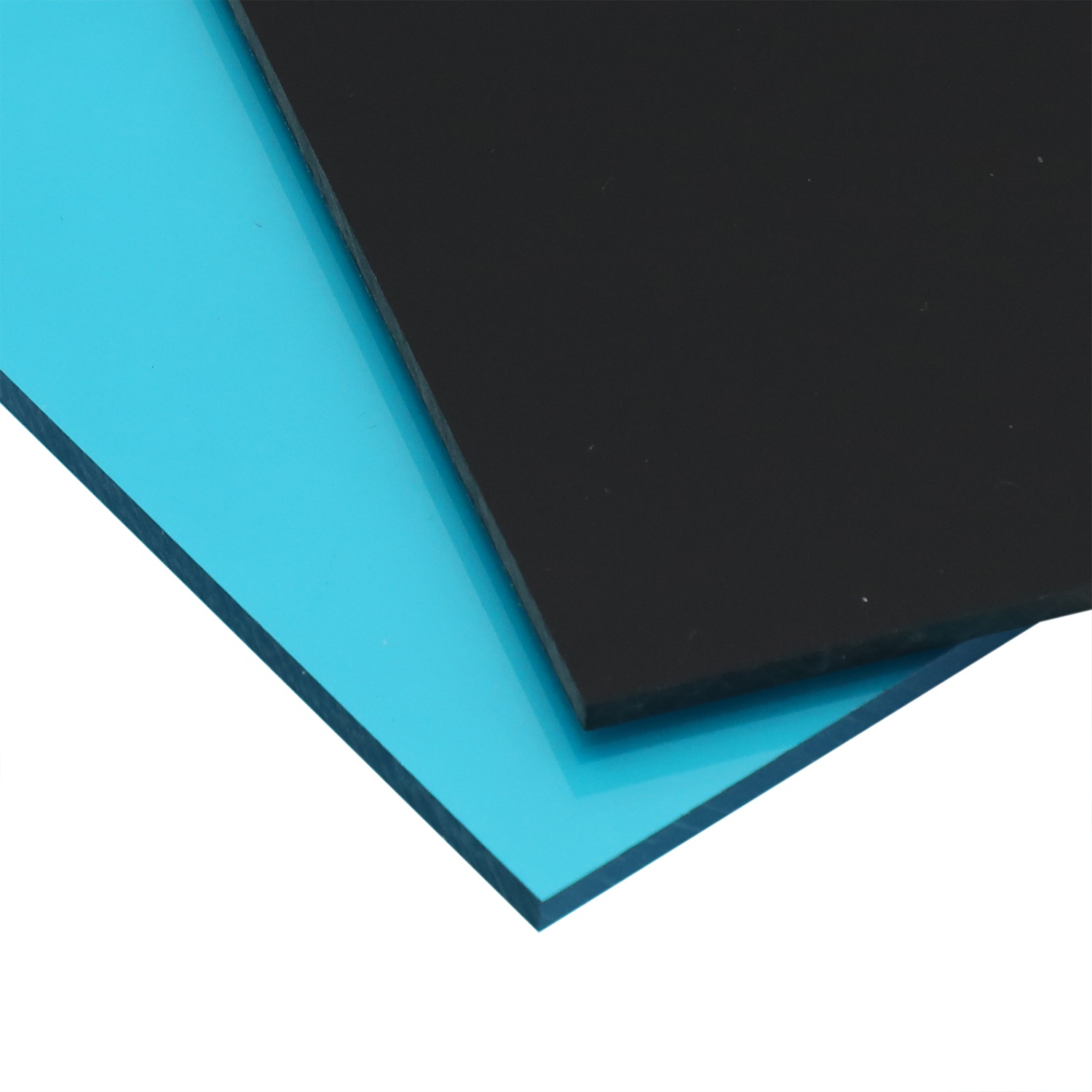

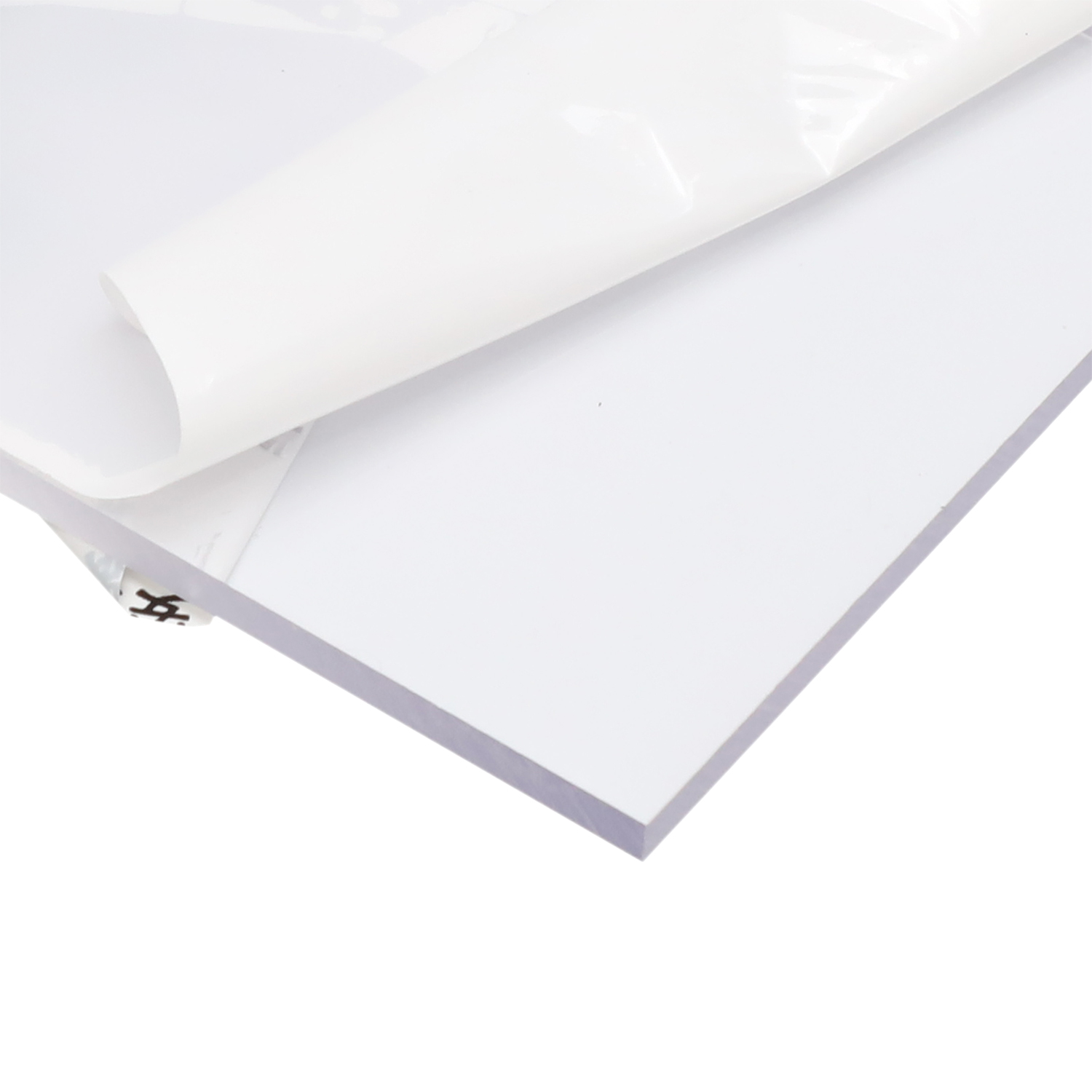

Polycarbonate solid sheet is good substitution for glass with its half weight of glass, 30 times impact resistance of tempered glass. When applied in lighting, especially it both provides excellent security and excellent lighting effect. At the same time, it greatly reduces structure steel volume. Polycarbonate solid sheet has various colors to meet your different construction outward appearance.
Introduction
Polycarbonate (PC) solid sheet is made of imported polycarbonate raw materials and international advanced production technology. Through coextrusion of UV coating on the surface of PC solid sheet, the high concentration UV resistant material is evenly spread on the surface of PC board. It can prevent ultraviolet rays from passing through and avoid yellowing and aging caused by ultraviolet rays, so as to prolong the service life of the board. UV coextrusion technology guarantees 10-year warranty. PC solid sheet is suitable for stadium, railway station house surface lighting roof, industrial plant, shopping mall, public facilities, residential skylight, lighting cover, interior decoration and other projects with special requirements. PC board has high light transmittance: up to 80% light transmittance, as transparent as glass
Advantage of Polycarbonate Solid Sheet
1.Light transmission:35~80%
2.Weather resistance: The UV layer on the surface can prevent the corrosion of ultraviolet
3.Sound insulation: The hollow structure has a good sound insulation effect
4. Impact resistance: The impact resistance strength is 250 times of ordinary glass and 30 times of organic glass
5.Fire retardant: The fire retardant is regarded as Grade B2 without fir drop or poisonous gas.
6.Portability:About 1/15 of ordinary glass with the samethickness
7. Temperature resistance: Can be used in -40 to +120
8.Heat insulation: Heat conduction coefficient is lower than ordinary glass with a better heat insulation and preservation effect.
Specification
Product | Polycarbonate Solid Sheet |
Denisty | 1.2g/cm3 |
Thickness | 1-30mm |
Size | 1220*2440mm ,width:1000-2100mm,length:1000-6000mm ,Customized |
Color | clear, transparent, red, blue, white, black,30 kinds of color |
payment | L/C, T/T, Western Union, MoneyGram, Paypal |
MOQ | 100PCS |
Delivery | 10-15days after confirm your order |
Technical Data
Impact strength | 850J/m impact strength of solid PC sheets is 250 times of glass |
Light transmission | 80%-90% for different thickness of clear color |
UV resistance | 50μm UV layer, can filter 99% ultraviolet radiation in sunlight |
Coefficient of thermal expansion | 0.065 mm/m°c |
Service temperature | -40°c to 120°c |
Heat conductivity | 2.3-3.9 W/m2 °c |
Tensile strength | >60N/mm2 |
Flexural strength | 100N/mm2 |
Tensile street at break | >65mPa |
Heat deflection temperature | 140°c |
Soundproof index | 4mm thickness--27dB,5mm--28dB,6mm--29dB |
Application of Polycarbonate Solid Sheet
1. Decoration in landscape gardening and Singular decoration, corridors and pavilions in leisure places.
2. Interior and exterior decorations of commercial building, curtain walls of modern building.
3. Transportation airline, containers, front wind shields of Motorcycles. Airplanes, trains, liners, vehicles, motors boats, submarines and police glass shields.
4. Telephone booths, advertising boards, light boxes and exhibition.
5. Instruments and meters, and military industry.
6. High class indoor decoration, such as walls, windows roofs and screens.
7. Sound-insulation walls in expressways and urban overhead highways.
8. Agricultural greenhouses and raising sheds.
9. Lighting of factory buildings, warehouse and markets.
