When we look at a pristine piece of acrylic, we see more than just a transparent plastic; we see the result of high-precision chemical engineering. At Gokai, we understand that the quality of an Acrylic Sheet—whether it is destined for a high-end retail display or a protective marine barrier—is determined long before the final polish.
In this expert analysis, we will deconstruct the sophisticated manufacturing processes of Cell Casting and Extrusion, identify the chemical nuances that separate premium sheets from inferior imitations, and provide an industry-insider's perspective on how OEM Acrylic services are evolving to meet modern sustainability standards.

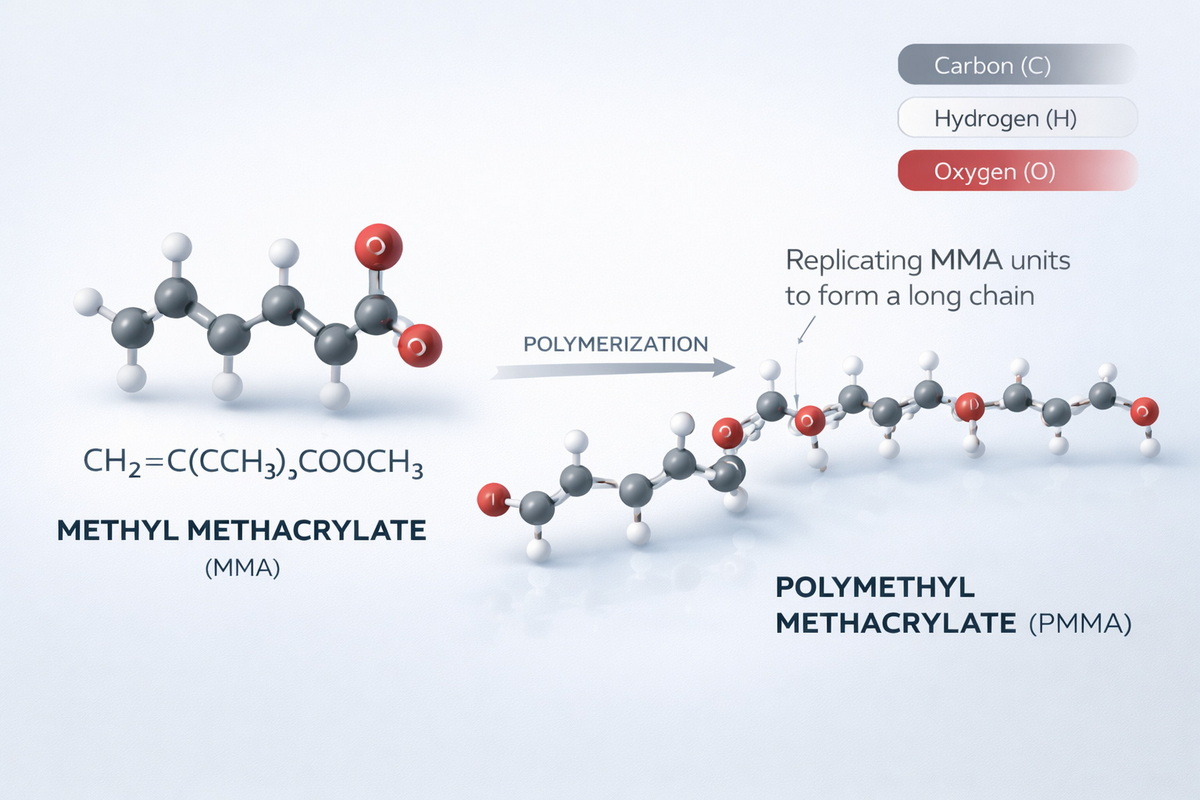

Before the sheet takes form, it begins as a liquid monomer. The primary building block is Methyl Methacrylate (MMA). Through a process called polymerization, these monomers are chemically bonded to create Poly Methyl Methacrylate (PMMA).
As an industry leader, Gokai emphasizes that the "Expertise" aspect of E-E-A-T starts with raw material selection.
Virgin MMA: Results in superior clarity, UV resistance, and structural integrity.
Recycled Scraps: Often used in lower-grade sheets, these can lead to yellowing over time and a lower melting point.
Cell casting is the "artisanal" method of the industrial world. It is a batch process that yields the highest quality acrylic sheets, preferred for applications requiring maximum optical clarity and chemical resistance.

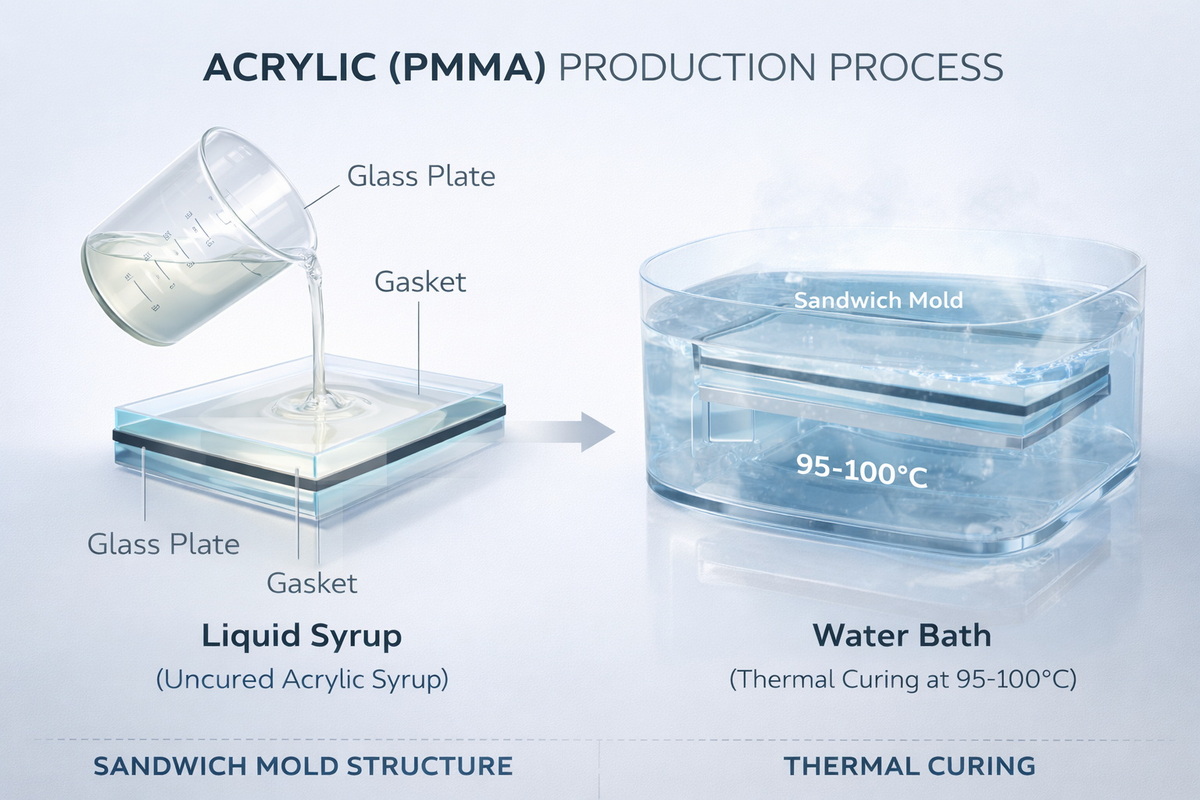

Preparation of the "Syrup": MMA is partially polymerized into a thick liquid, often referred to as "prep-polymer."
The Mold (The Cell): Two pieces of high-quality glass are separated by a rubber "gasket" that determines the thickness of the sheet.
The Pour: The syrup is injected into the mold.
The Curing Tank: The molds are placed in temperature-controlled water baths or ovens. This is the most critical phase.
Final Annealing: The sheets are heated further to relieve internal stresses, ensuring they don't crack during later fabrication.
| Feature | Cell Cast Acrylic | Why it Matters |
| Optical Clarity | Exceptional | Best for lenses and high-end signage. |
| Surface Hardness | Higher | More resistant to scratches during handling. |
| Fabrication | Superior | Does not melt or gum up during laser cutting or drilling. |
| Color Variety | Extensive | Easier to produce small batches of custom colors (OEM). |
For high-volume orders where thickness consistency is paramount, the Extruded Acrylic method is the industry standard.
Unlike casting, extrusion is a continuous process. PMMA pellets are fed into an extruder, heated until molten, and forced through a flat die.
Precision Rollers: The molten sheet passes through a series of highly polished rollers that determine the exact thickness and surface finish.
Continuous Cooling: The sheet is cooled by air or water as it moves along a conveyor belt before being cut to size.
Expert Insight: Extruded sheets have a lower melting point than cast sheets. While this makes them slightly harder to laser cut without "burrs," it makes them ideal for vacuum forming and heat bending.
Standard articles often overlook the "secret sauce" of acrylic manufacturing: additives. To provide a truly professional-grade product, Gokai integrates specific stabilizers during the mixing phase.
UV Stabilizers: Essential for outdoor signage to prevent the material from becoming brittle under sunlight.
Impact Modifiers: Added to "High-Impact Acrylic" to increase durability for safety glazing.
Anti-Reflective Coatings: Applied to museum-grade acrylic to reduce glare.
Diffusion Particles: Used in LED lighting applications to ensure even light spread without "hot spots."

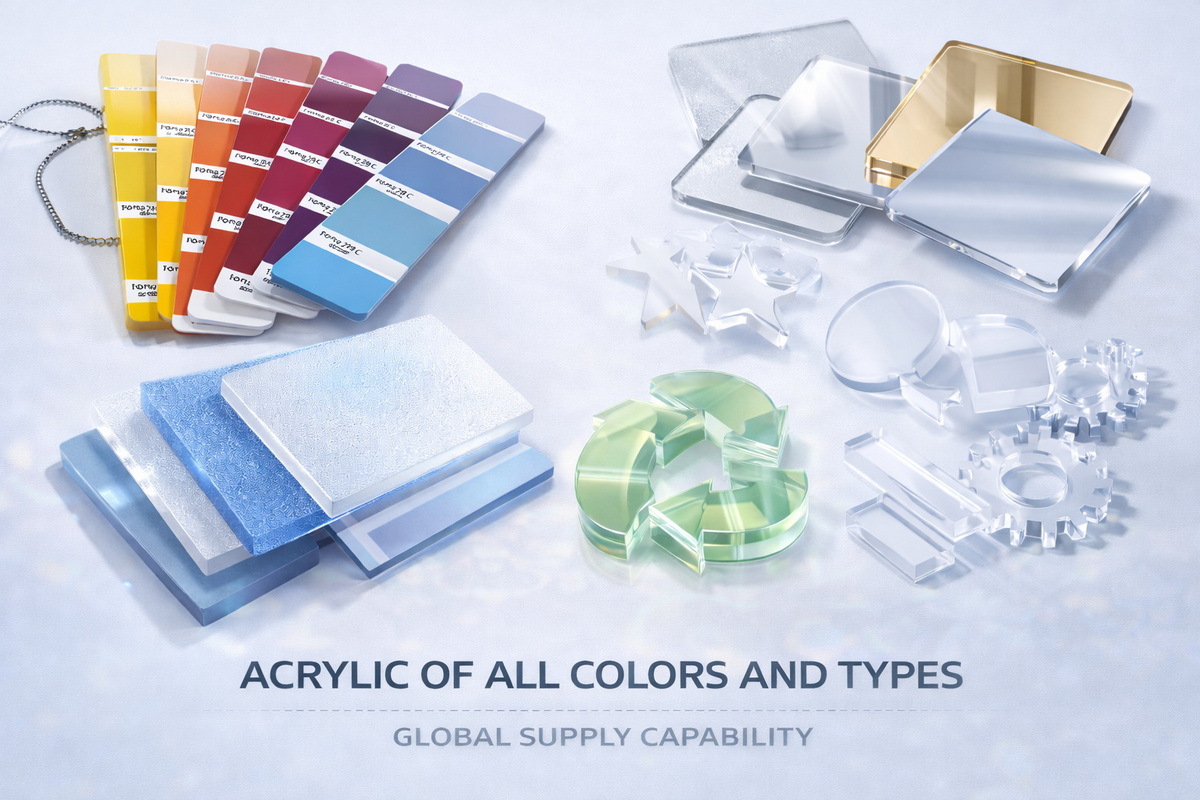

As a global Acrylic Sheet supplier, Gokai recognizes that one size does not fit all. The OEM (Original Equipment Manufacturer) model allows clients to specify exact parameters.
Thickness Tolerance: High-precision extrusion can maintain tolerances within +/- 5%.
Custom Color Matching: Utilizing spectrophotometers to match a brand's exact Pantone color.
Sheet Sizing: Reducing waste for the end customer by providing pre-cut dimensions up to 2x3 meters or larger.
Surface Textures: Offering matte (frosted), P95, or ribbed finishes directly from the mold or roller.

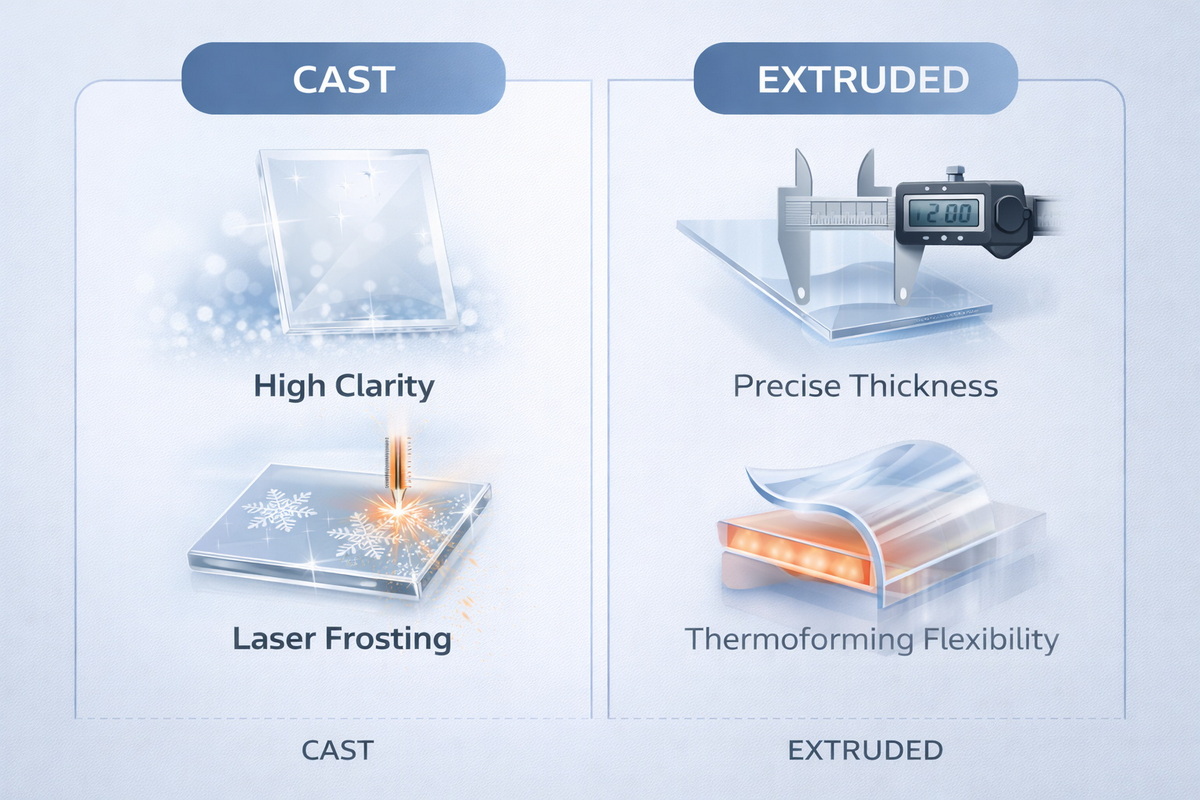

Choosing the right material is a balance of budget, application, and fabrication method.
| Factor | Cast Acrylic | Extruded Acrylic |
| Cost | Higher | Lower (Mass produced) |
| Thickness Uniformity | Variation is common | Highly consistent |
| Laser Engraving | Produces a "frosted" white look | Engraves clear/rough |
| Solvent Bonding | Excellent | Faster bonding, but prone to "crazing" |
| Best For | Luxury displays, thick blocks, custom colors | High-volume glazing, DIY projects, lighting |
In 2026, the industry is shifting toward a circular economy. Acrylic is unique because it is 100% recyclable. At Gokai, we are monitoring the development of Molecular Recycling, which allows PMMA to be broken back down into its original MMA liquid form without losing any optical quality. This "R-MMA" (Recycled Methyl Methacrylate) is the future of sustainable plastic manufacturing.
When sourcing acrylic sheets, the "Trustworthiness" of your supplier is non-negotiable. Look for manufacturers who provide:
ISO 9001 Certification: Ensuring consistent quality management.
SGS/RoHS Reports: Confirming the absence of heavy metals and toxins.
Technical Support: Experts who can advise on whether cast or extruded is better for your specific project.
Whether you are developing a new product line or need a reliable bulk supplier, our team is ready to provide high-performance acrylic sheets tailored to your specifications.
Contact Our Technical Sales Team for a Quote Today
Q1: Why is cast acrylic more expensive than extruded?
A1: Cast acrylic is a labor-intensive batch process requiring glass molds and long curing times. Extrusion is an automated, continuous process that produces more sheets per hour with less labor.
Q2: Can I use acrylic for outdoor applications?
A2: Yes, provided it has UV stabilizers. Acrylic is naturally more UV-stable than polycarbonate, but high-quality sheets like those from Gokai are specifically treated to prevent yellowing for 10+ years.
Q3: How do I tell if a sheet is cast or extruded just by looking at it?
A3: It is difficult to tell by eye alone. However, if you laser engrave it, cast acrylic will turn a crisp, snowy white, while extruded acrylic will remain relatively clear. Also, check the edges; cast acrylic edges are often slightly more matte.
Q4: Is acrylic sheet fireproof?
A4: No. Acrylic is a thermoplastic and will melt and burn if exposed to an open flame. However, it does not produce excessive smoke compared to other plastics. Specific "Fire-Rated" grades are available for architectural use.
Q5: What is the maximum thickness available for acrylic sheets?
A5: Extruded sheets are usually limited to 25mm. Cast acrylic can be produced in "blocks" up to 100mm or even 300mm for aquarium and structural applications.
