Short Description

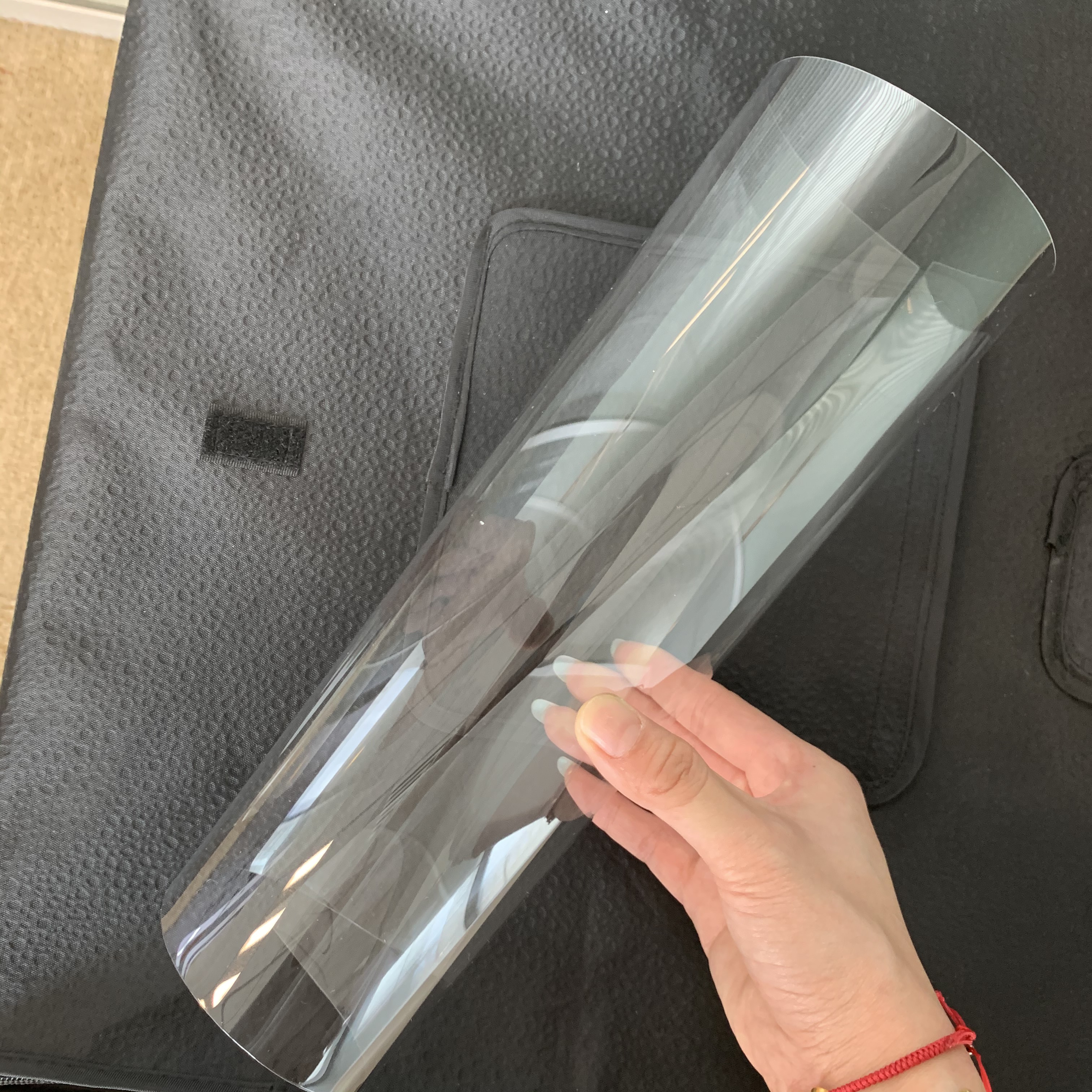

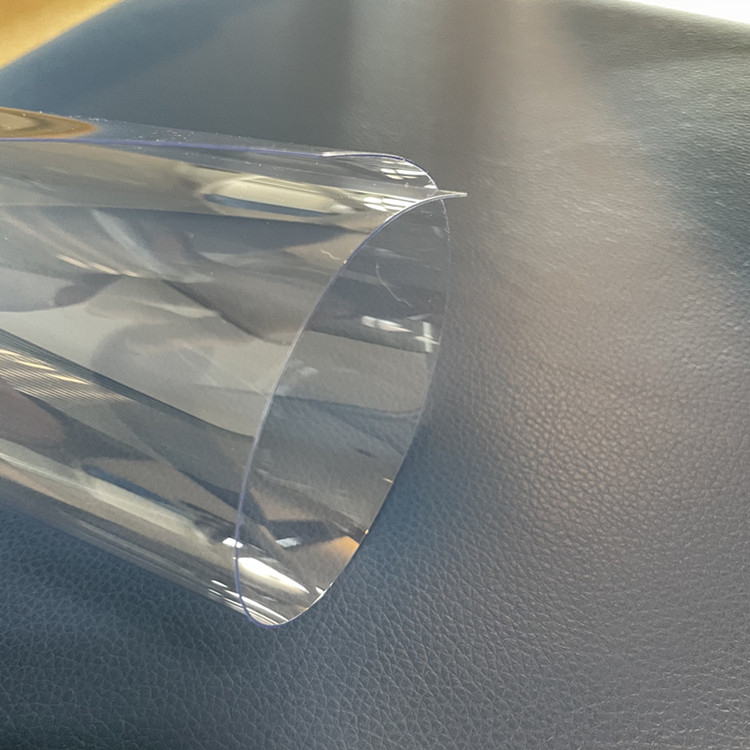

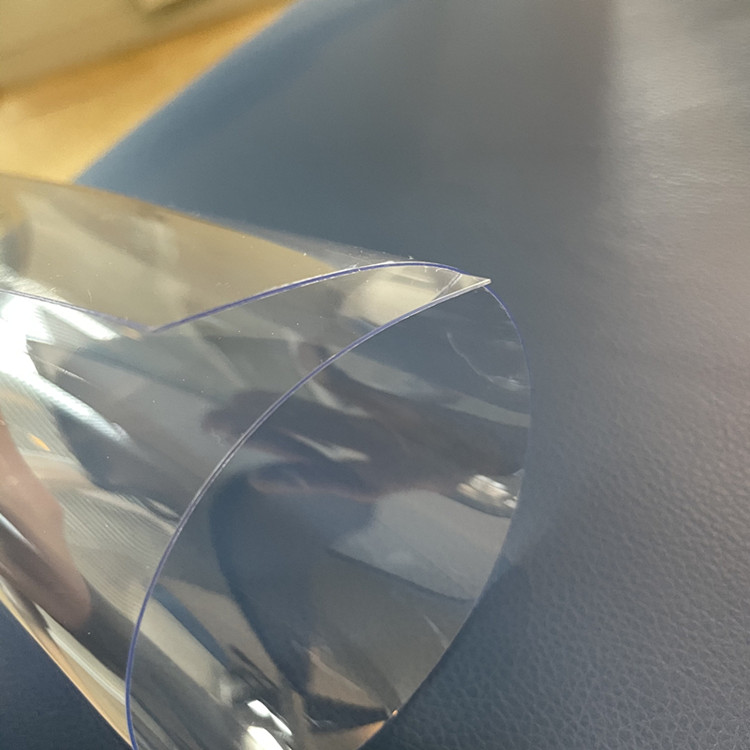

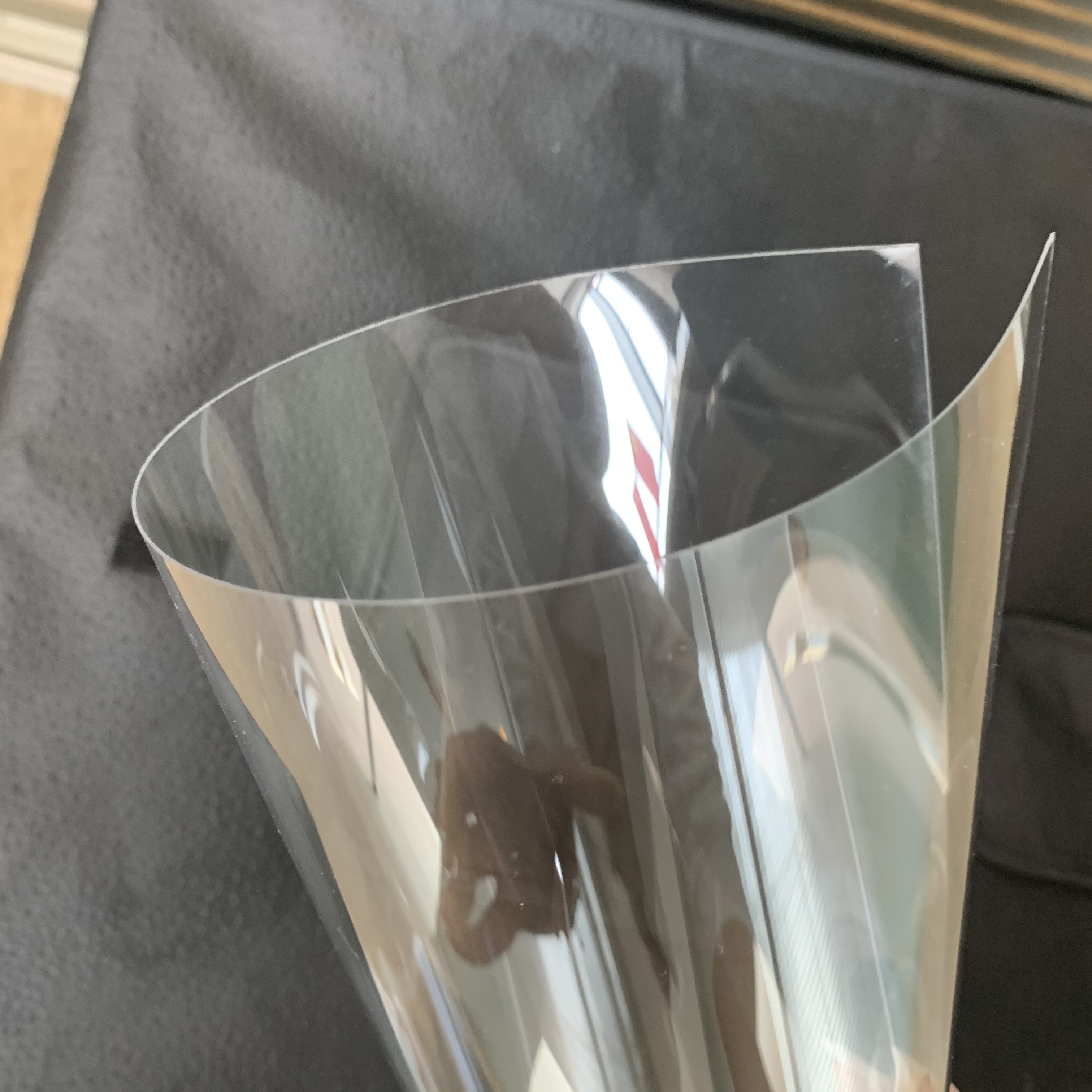

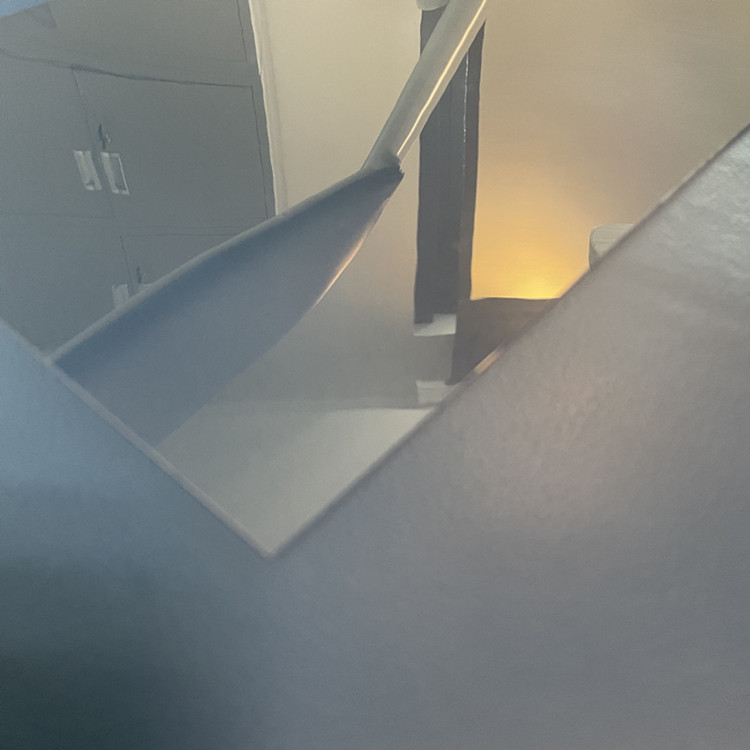

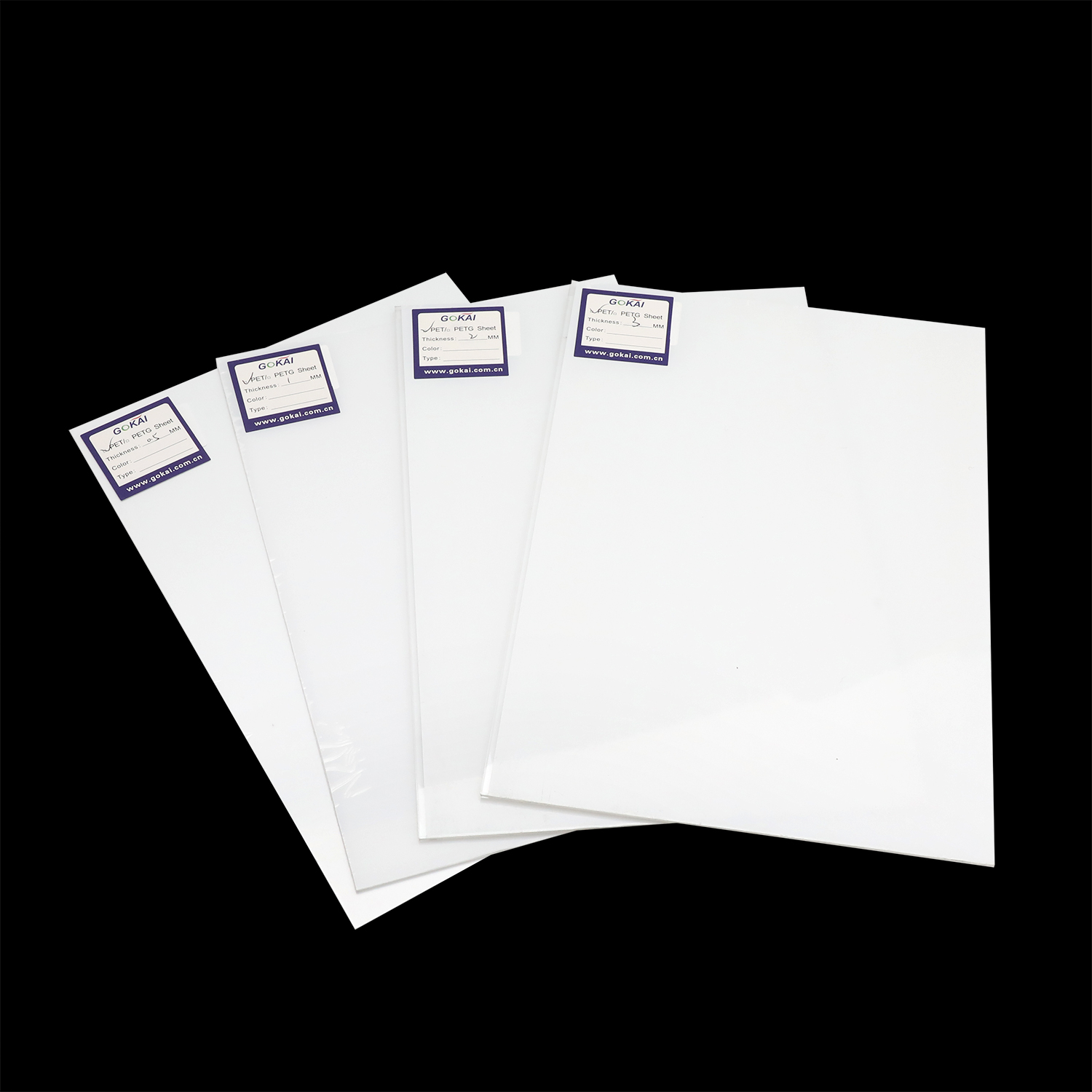

PET (Polyethylene terephthalate) is a light-weight thermoplastic with low moisture absorption, low thermal expansion, and chemical resistant properties.Gokai normal produce APET.
Introduction
PET (Polyethylene terephthalate) sheet is a general-purpose thermoplastic in the polyester family. PET plastic is lightweight, strong and impact-resistant. It is often used in food processing machinery due to its low moisture absorption, low thermal expansion, and chemical resistant properties.
PET (polyethylene terephthalate) sheet is a thermoplastic that is clear, strong, and lightweight. It is completely recyclable, making it the most widely used plastic for food and beverage packaging. PET Natural Sheets come in a variety of thicknesses and sizes. Custom cut option is available.
PET sheet is a thermoplastic sheet made by Polyethylene terephthalate resin.PET offers the capability to produce complex shapes, precise details, deep draws and compound curves without worrying about durability. PET is easily formed, die-cut and punched. It also brings increased design freedom and lower fabrication costs. In sheet form, PET has the impact strength and fabrication ease that acrylic can`t touch, with the durability to significantly reduce packaging and shipping costs.
Advantage of PET Sheet
•Outstanding thermoforming characteristics, particularly in deep draw applications
•Good impact resistance
•Less brittle than acrylic
•Resistant to common cleaners used on point of purchase displays
•Allows for rigid thermoforming cycle times
•FDA compliant grades available
•Impact strength greater than acrylic and approaches polycarbonate
•86% light transparency compared to 87% for polycarbonate and 92% for acrylic
•Die cuts/punches easily
•Low forming temperature
•Printable
•Chemical resistant
•Self-extinguishing
Specification
Product | PET Sheet |
Density | 1.30g/cm3-1.40g/cm3 |
Thickness | 0.15mm-10mm |
Size | 610*610mm,700*1000mm,915*1220mm,915*1830mm,1220*2440mm, Customized |
Color | clear, transparent,glossy white,matt white,forsted white,black red,green,blue,yellow etc. |
payment | L/C, T/T, Western Union, MoneyGram, Paypal |
MOQ | 200PCS or 1Tons |
Delivery | 10-15days after confirm your order |
Technical Data
Thickness Tolerance | According to GB(higher than GB) |
Heat Resistance (Continuous) | 115℃ |
Heat Resistance (Short) | 160℃ |
Linear Thermal Expansion Coefficient | Average 23-100℃, 60*10-6m/(m.k) |
Combusti Bility (UL94) | HB |
Bibulous Rate (23℃ water soak for 24 hours) | 6% |
Bending Tensile Stress | 90MPa |
Breaking Tensile Strain | 15% |
The Tensile Modulus of Elasticity | 3700MPa |
Normal Strain Compressive Stress (-1%/2%) | 26/51MPa |
Gap Pendulum Impact Test | 2kJ/m2 |
Application of PET Sheet
1) For Silk Screen Printing
2) For UV Offset Printing
3) For Digiting Printing
4) For Vaccum Forming
5) For Thermo forming
6) For Cold / Hot Bending
7) For Bending Covers
8) For Blister Packing
9) For Folding Box
10) For Anti-Static Machine Cover
11) For Playing Cards
12) For Lampshade Cover
13) For Furniture/Door Panel
14) For Clothing Template
15) For Adverting Board
