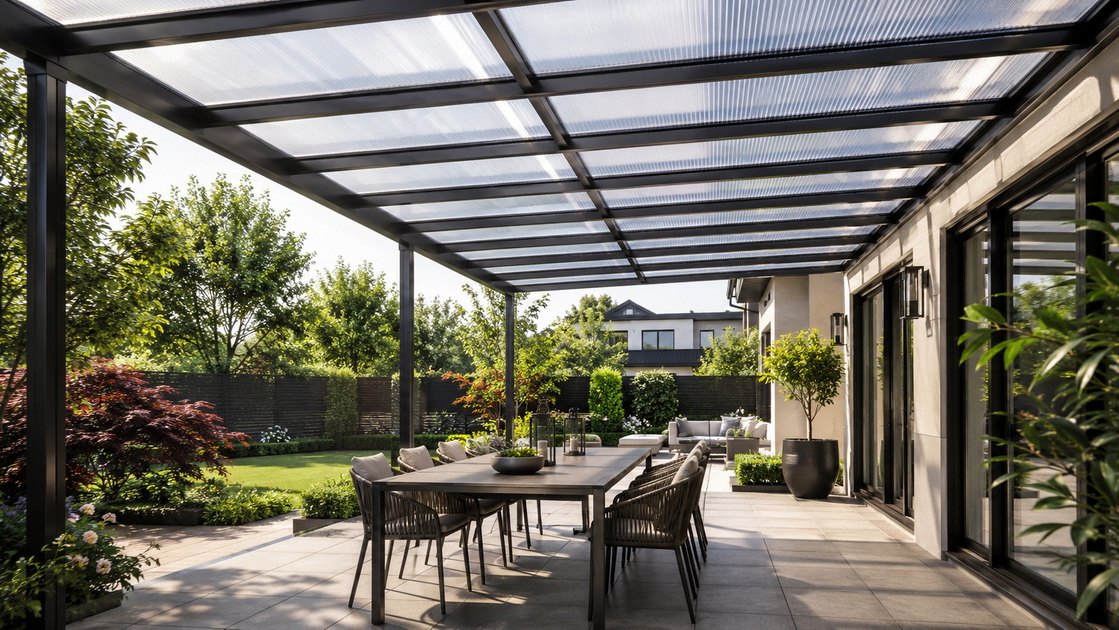

A patio cover should make an outdoor space more usable without making it feel enclosed. For homeowners, contractors, distributors, and project buyers, a polycarbonate hollow sheet patio roof offers a practical balance: daylight transmission, lower weight than traditional glazing, design flexibility, and an internal multiwall structure that can improve thermal performance.
At Gokai, we work with buyers who need more than a clear roofing panel. They need a material specification that fits their climate, supporting structure, local building requirements, desired light level, and OEM brand expectations. This guide explains how to select, specify, and install polycarbonate hollow sheets for patio roofs, pergolas, verandas, carports, and similar covered outdoor areas.
- A polycarbonate roof system is not "one size fits all." Final sheet thickness, span, support spacing, fixing method, and fire classification must be confirmed against the project's local code, wind conditions, snow load, and the supplier's current technical data sheet.
Polycarbonate hollow sheet—also called multiwall polycarbonate sheet, twinwall sheet, or cellular polycarbonate—is made with internal ribs that create air chambers. These chambers distinguish it from solid polycarbonate and conventional single-pane glazing.
For patio roofing, that structure can provide a useful combination of light transmission and insulation. A clearer sheet maximizes daylight, while opal, bronze, or heat-control options can help soften glare and reduce direct solar intensity. The right choice depends on how the space is used.
- Bright but protected space: Multiwall sheets can transmit substantial visible daylight while a co-extruded UV-protected surface helps protect the sheet from outdoor weathering when installed in the correct orientation.
- Lower structural weight: Lightweight glazing can simplify handling and may reduce demands on the supporting patio or pergola frame compared with heavier alternatives.
- Improved thermal performance: The internal air chambers reduce heat transfer relative to a single, solid glazing layer. Published multiwall data shows that U-values typically improve as sheet thickness and wall structure increase.
- High design adaptability: Sheets can be specified in different thicknesses, colors, widths, lengths, rib structures, and glazing-system configurations.
- Impact-conscious solution: Polycarbonate is widely selected where a more resilient transparent or translucent roof material is required, but project-specific impact expectations should always be verified against the exact product specification.
The practical benefit is simple: a well-designed patio roof lets people use the space through light rain, strong sun, or cooler weather without turning the patio into a dark extension of the house.
Material selection should begin with the performance the project needs—not with a generic claim that one material is always best.
| Decision factor | Polycarbonate hollow sheet | Glass roof | Metal roof |
|---|---|---|---|
| Daylight | Clear, opal, tinted, and diffused options | High clarity possible | Usually blocks daylight |
| Weight | Generally lightweight | Heavy; frame design is critical | Varies by system |
| Insulation potential | Multiwall air chambers support lower U-values | Depends on glazing type | Often needs separate insulation |
| Visual feel | Bright, practical, and adaptable | Premium, highly transparent | Solid shade and privacy |
| Installation focus | Expansion allowance, rib direction, edge sealing | Safety glazing, weight, specialist fitting | Flashing, noise, heat gain, condensation |
| Best fit | Pergolas, patios, canopies, greenhouses, OEM kits | High-end architectural structures | Full shade, opaque carports, privacy roofs |
A clear glass roof may be appropriate when maximum visual clarity is the priority and the supporting structure is engineered for it. A metal patio cover can be effective where deep shade and privacy matter most. For many outdoor projects, multiwall polycarbonate roofing panels sit between those options by retaining daylight while adding a lightweight, insulated cellular structure.
The best sheet is not necessarily the thickest one. It is the sheet whose structure and optical properties align with the project's load, span, climate, and comfort requirements.
Ask these questions before selecting a sheet:
- Is the project located in a high-wind, heavy-rain, hail, or snow region?
- Is the patio exposed to intense afternoon sun?
- Does the structure need a clear view, soft daylight, privacy, or reduced glare?
- Is the cover attached to a building or freestanding?
- What are the actual purlin spacing and roof span?
- Which local codes, permits, fire requirements, and engineering approvals apply?
A patio roof in a mild coastal climate may have very different requirements from a carport in a snow-prone area. Do not use an online thickness chart as a substitute for structural verification.
Common multiwall polycarbonate options include twinwall, triple-wall, X-structure, and higher-wall-count configurations. As a general rule, increased thickness and more complex internal geometry can improve insulation and stiffness, but they may also change cost, light transmission, weight, and system requirements.
For context, a published multiwall polycarbonate data table lists U-values of approximately 3.9 W/(m²·°C) for 4 mm double/triple-wall sheet, 3.0 for 10 mm, and 2.3 for 16 mm in the referenced product range. These figures are illustrative rather than universal; buyers should request Gokai's product-specific test data and confirm the relevant testing standard before specifying a value.
Light transmission is a comfort decision as much as an aesthetic one.
- Clear sheets are suited to spaces where daylight and openness are priorities.
- Opal or diffused sheets spread light more evenly and can reduce harsh glare.
- Bronze or tinted sheets can create a softer ambiance and help moderate brightness.
- Heat-control or IR-reflective options may be preferable for patios with strong solar exposure, subject to verified performance data.
An experienced project planner considers the sun path. If the roof faces low western sun, a sheet that looks attractive in a showroom may still produce uncomfortable glare at the time the patio is used most.

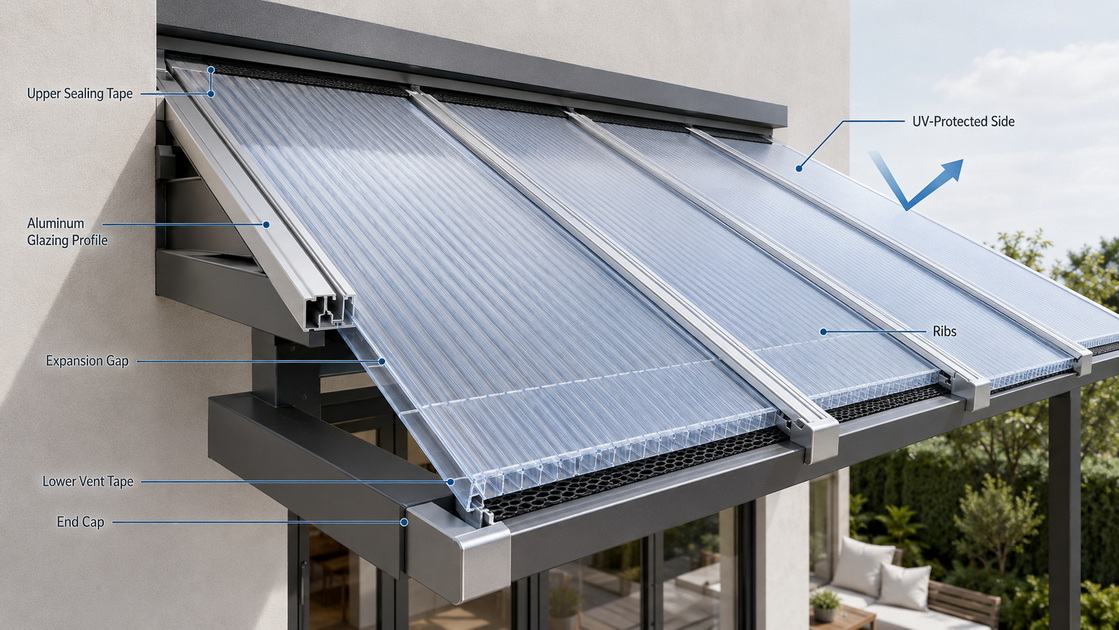

A high-quality panel can still fail early when installed incorrectly. In our experience reviewing common project questions, most avoidable problems come from incorrect UV-side orientation, insufficient expansion clearance, poor edge treatment, or inadequate support design.
For sloped patio roofs, internal channels should generally run up and down the slope, not across it. This supports drainage of condensation within the channels and aligns with mainstream multiwall installation guidance.
The roof should also have an appropriate pitch to drain water efficiently. The exact minimum slope should follow the selected roofing system's installation manual and local conditions rather than a generic internet recommendation.
Most exterior-grade sheets have a UV-protected side marked by printed protective film, edge marking, or a manufacturer label. That side must face the sun or exterior environment. Installation guides consistently emphasize this orientation because the protected surface is designed for outdoor exposure.
Do not remove the protective film until late in the installation process. It helps prevent scratching and makes the UV-treated side easier to identify.
Polycarbonate expands and contracts as temperature changes. If the panel is fixed too tightly, it can buckle, crack around fasteners, or create unwanted stress.
One manufacturer installation guide calls for a nominal expansion space of 0.125 inch per 3 feet in both length and width; another guide specifies 1/8 inch per 4 feet. These figures demonstrate why installers must follow the instructions for the specific sheet and glazing system being used—not combine recommendations from unrelated products.
Use compatible profiles, oversized fixing holes where required by the system, suitable washers, and fastening procedures specified by the manufacturer. Avoid overtightening screws.
The internal channels must be protected from dust, insects, and moisture while still allowing condensation management. A common approach is:
1. Apply solid aluminum tape to the upper sheet end.
2. Apply breather or vent tape to the lower sheet end.
3. Cover the taped ends with compatible U-profiles or end caps.
4. Ensure water can drain from the lower edge without being trapped.
A documented installation guide recommends aluminum tape at the top and vented tape at the bottom for this purpose. Sealing both ends with non-breathable material can trap moisture, while leaving channels open exposes them to contamination.
For an OEM patio-roof project, a quotation should capture more than panel dimensions. A clear specification brief reduces rework, sampling delays, and product mismatches.
| Information to confirm | Why it matters |
|---|---|
| Application and location | Determines climate, code, load, and color considerations |
| Sheet type and thickness | Affects stiffness, insulation, weight, and cost |
| Color and light requirement | Determines visual comfort, glare control, and project appearance |
| UV protection configuration | Confirms exterior-facing installation requirement |
| Sheet width, length, and cut tolerance | Supports packing, transport, fabrication, and installation |
| Roof span and support spacing | Essential for engineering and panel selection |
| Glazing bars, tapes, profiles, and fasteners | Ensures a compatible system rather than isolated components |
| Packaging and private-label needs | Supports OEM branding, export handling, and distribution |
| Required documents | May include technical data sheet, sample, test report, packing list, or compliance documents |
For global buyers, this checklist also makes communication more efficient. Instead of asking, "What is your best polycarbonate sheet price?", provide the application, dimensions, quantity, destination market, required color, and desired performance. Gokai can then recommend a more relevant OEM solution.
A low initial price may overlook UV coating, wall structure, sheet weight, consistent thickness, packaging quality, compatible accessories, or technical support. For export buyers, damaged sheets or an incomplete profile system can cost more than the original saving.
Polycarbonate fire behavior and classification depend on the specific formulation, thickness, test method, jurisdiction, and final assembly. For example, one manufacturer explains that unmodified polycarbonate can be certified as European Class B in a particular context, but that does not automatically establish compliance for every product or building.
Request applicable reports for the exact Gokai product, then ask the local authority, architect, or code professional whether that documentation satisfies the project requirement.
Polycarbonate roofing should be cleaned using mild soap, lukewarm water, and a soft cloth or sponge. Avoid abrasive pads, harsh solvents, and unsuitable cleaners that can damage the sheet surface. Keep gutters, end caps, and drainage paths clear so debris does not create standing water or staining.

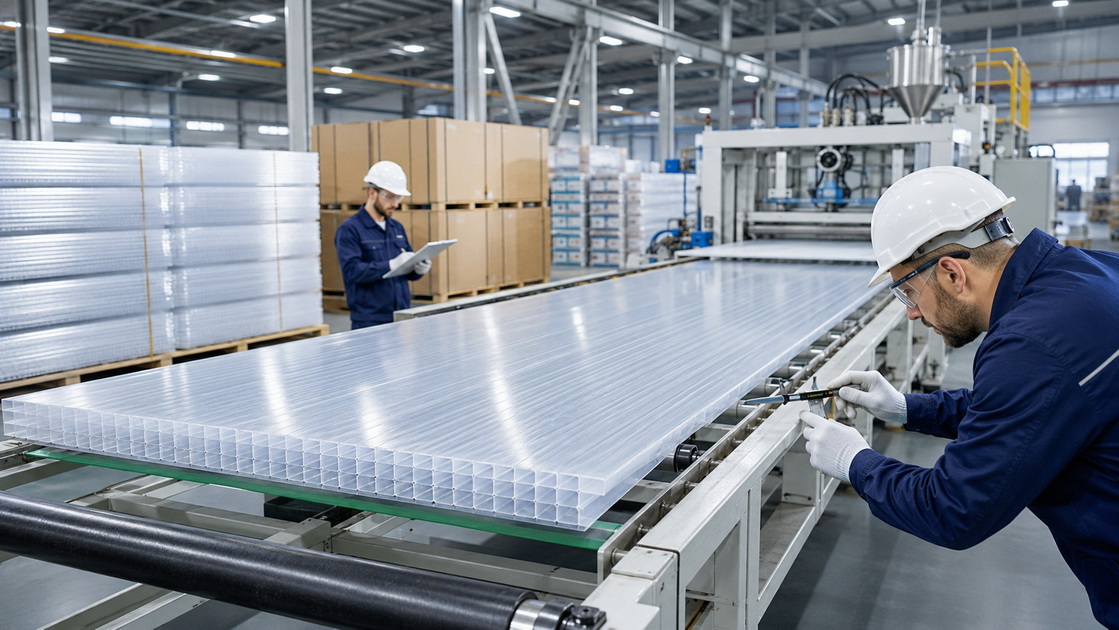

Gokai supports international customers seeking OEM polycarbonate hollow sheet solutions for patio roofing and related applications. The right partnership should combine manufacturing capability with clear technical communication: verified product specifications, sampling, customized sizes and colors, packaging options, and practical support for the intended market.
Before mass production, confirm every critical point in writing: sheet structure, thickness tolerance, UV-side identification, color standard, cut size, protective film, packaging method, container loading plan, accessory compatibility, and documentation requirements. This disciplined process helps distributors and project buyers deliver a consistent roofing system to their own customers.
Planning a pergola roof, veranda cover, carport, or OEM multiwall polycarbonate sheet program? Share your project dimensions, target market, climate conditions, desired color, sheet thickness, and estimated order quantity with Gokai.
Our team can help you move from a general idea to a clearer polycarbonate hollow sheet specification—before production, shipment, and installation decisions become expensive.
Contact Gokai today to request samples, technical information, and an OEM quotation for your polycarbonate patio roofing project.
Yes. Multiwall polycarbonate is commonly used for patios, pergolas, canopies, carports, and greenhouses because it combines daylight transmission with a lightweight cellular structure. The correct thickness, support spacing, and glazing system must be selected for the project conditions.
Clear polycarbonate is best when maximum daylight and visibility are important. Opal polycarbonate is often better when occupants want diffused light and reduced glare. The best option depends on patio orientation, local sun intensity, and the desired appearance.
Yes. Polycarbonate expands and contracts with temperature change. The required clearance depends on the specific panel and installation system, so always follow the applicable Gokai technical instructions rather than fixing sheets tightly.
The UV-protected side should face outward toward the sun. It is normally identified by printed protective film, markings, or labeling. Confirm this before removing the film or fastening the panel.
Install the ribs in the roof-slope direction, seal the top edge with solid tape, use vent tape at the lower edge, and protect both edges with compatible profiles. This helps keep contaminants out while allowing moisture to drain appropriately.
Yes. Gokai can support OEM requests for polycarbonate hollow sheets, including customized dimensions, colors, packaging, and branding requirements. Buyers should provide their application, market, technical specifications, and order requirements for an accurate proposal.
1. Acme Plastics. "[Perfecting Your Patio: Using Plastic Roof Panels to Cover Your Outdoor Space]." Accessed August 2026. Original competitor article reviewed for topic coverage and content-gap analysis. [acmeplastics]
2. Plaskolite. "[POLYGAL MultiWall Sheets Product Brochure (PDF)]." Accessed August 2026. Referenced for illustrative multiwall sheet U-value ranges and optical-performance context. [plaskolite]
3. Amerilux International. "[Multiwall Polycarbonate Installation Guide (PDF)]." Accessed August 2026. Referenced for rib orientation, UV-side installation, and expansion-clearance guidance. [ameriluxinternational]
4. AC Plastics / Gallina. "[Multiwall Polycarbonate Installation and Usage Guide (PDF)]." Accessed August 2026. Referenced for UV-side identification, end-tape practices, and expansion allowance. [acplasticsinc]
5. Palram. "[How Does Polycarbonate Comply with European Fire Classifications?]." July 2024. Referenced for the need to evaluate fire classifications by product, test, and application. [palram]
6. Macrolux USA. "[Multiwall Polycarbonate Technical Manual (PDF)]." Accessed August 2026. Referenced for thermal-expansion context in multiwall polycarbonate systems. [macroluxusa]
